ZT 3500 B 2448 (5900506) - Simplicity ZT 3500 Series 48" Zero-Turn Mower, 24hp Briggs & Stratton 48" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

ZT 3500 Series 48" Zero-Turn Mower, 24hp Briggs & Stratton

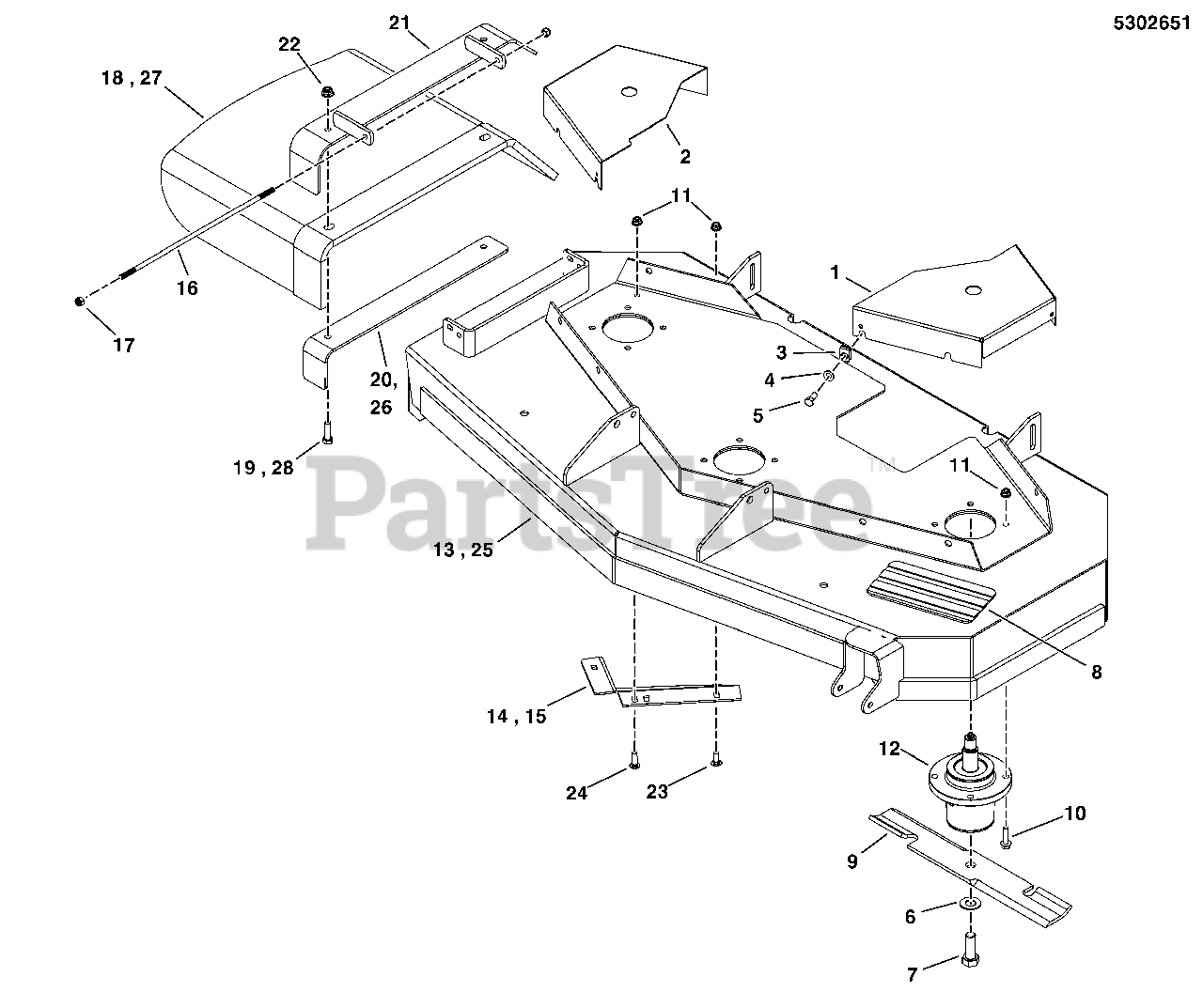

48" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Simplicity 5403531C

GUARD, 48" MOWER DECK, LH
(Superseded to 5403531CYP)

$43.99

$

Usually ships in 2-12 days

0

2

Simplicity 5403532C

GUARD, 48" MOWER DECK, RH
(Superseded to 5403532CYP)

$42.99

$

Usually ships in 2-12 days

0

3

Simplicity 5022308

BODY CLIP 5/16-18 X 1/2" DEEP
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

4

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 5025159

WASHER, 5/8 USS
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

7

Simplicity 5025320X14

BOLT, 5/8-11 X 1-3/4 GR8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

9

Simplicity 5101986S

BLADE, 16.25 X.25 X 2.5, 1 X 3.5 (SET OF 3)
(Superseded to 5101986SYP)

$

$

Not available

10

Simplicity 5023156

BOLT, 5/16-18 X 1-1/4" FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

11

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

13

Simplicity 5600518

DECK SHELL W/ DECALS 48" DECK, ZT3500
(Superseded to 5600518YP)

Note: (S/N: 2016167622 & BELOW)

$2670.99

$

Usually ships in 2-12 days

0

14

Simplicity 5401271A

WELD, DISCHARGE BAFFLE, 48" - BLK
(Superseded to 5401271AYP)

Note: (S/N: 2016167622 & BELOW)

$31.99

$

Usually ships in 2-12 days

0

15

Simplicity 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

Note: (S/N: 2016467623 & ABOVE)

$11.99

$

Usually ships in 2-12 days

0

16

Simplicity 5042555

ROD, BRAKE LINKAGE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025045

NUT 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

18

Simplicity 5402404

CHUTE, RUBBER, BENT
(Superseded to 5402404FS)

Note: (S/N: 2017094785 & Below)

$148.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025013X12

BOLT, 3/8-16 X 1-1/2 GD5 YZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017094785 & Below)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5402362A

SUPPORT, DISCHARGE CHUTE, 48/52 - BLK
(Superseded to 5402362AFS)

Note: (S/N: 2017094785 & Below)

$35.99

$

Usually ships in 2-12 days

0

21

Simplicity 5413404AYP

WELD, FRAME CHUTE, 44/48/52 - BLK

$68.99

$

In Stock, only 1 left!

0

22

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5025145X6

BOLT, 5/16"-18 CARRIAGE, 3/4"
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

24

Simplicity 5025145X8

BOLT, 5/16"-18 CARRIAGE, 1"
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

25

Simplicity 5600630

DECK SHELL W/ DECALS, ZT3500 - 48

Note: (S/N: 2016167623 & ABOVE)

$

$

Not available

26

Simplicity 5413401A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5413401AA)

Note: (S/N: 2017094786 & Above)

$32.99

$

Usually ships in 2-12 days

0

27

Simplicity 5413498

CHUTE, RUBBER DISCHARGE (5104441)

Note: (S/N: 2017094786 & Above)

$165.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017094786 & Above)

$3.99

$

Usually ships in 2-12 days

0
