ZT 3000 B 2450 (5900662) - Simplicity ZT 3000 Series 50" Zero-Turn Mower, 24hp Engine Group - Briggs & Stratton Parts Diagram

ZT 3000 Series 50" Zero-Turn Mower, 24hp

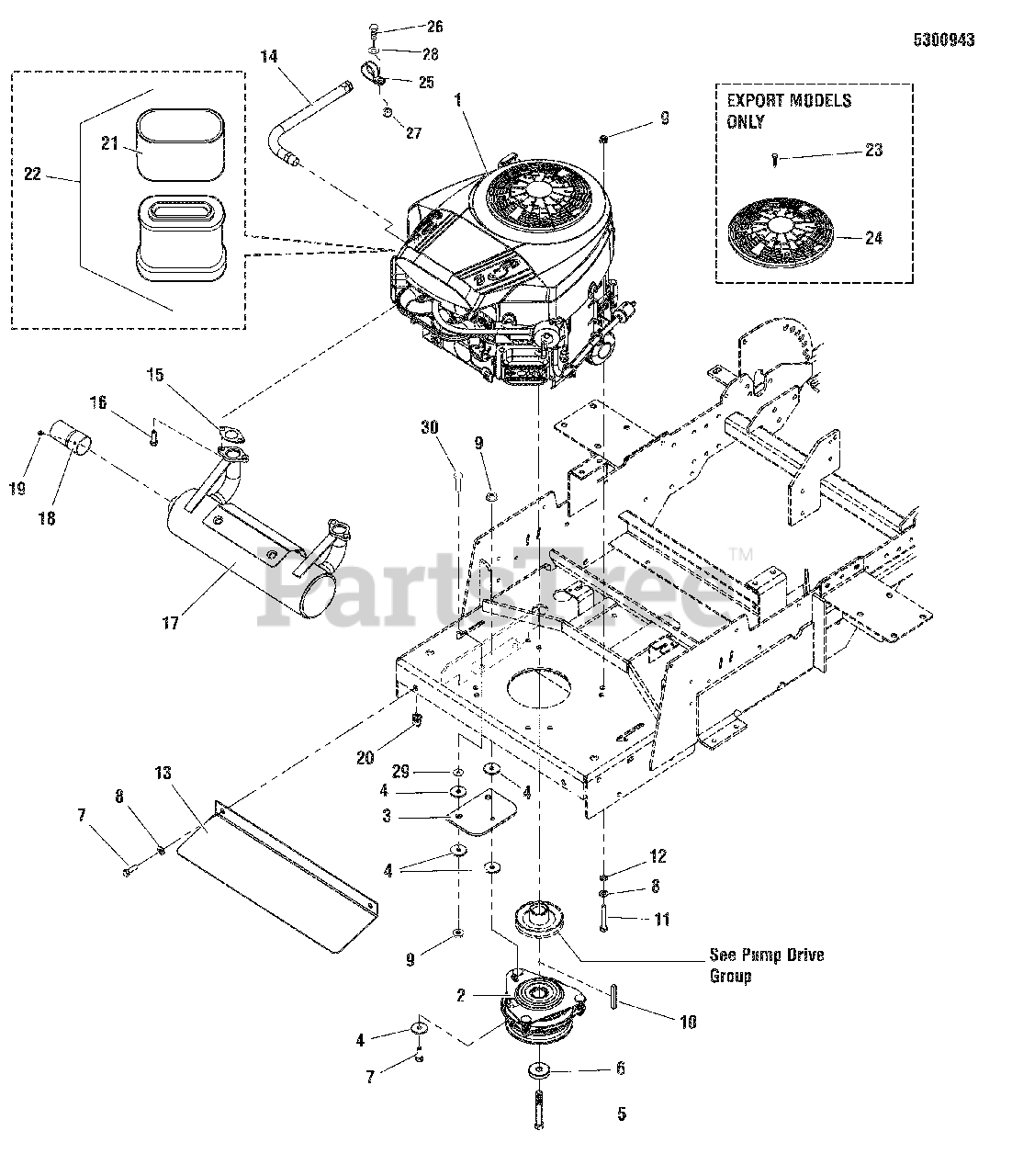

Engine Group - Briggs & Stratton Parts Diagram

  • Title

1

* ENGINE, Briggs & Stratton, ELS

$

$

Not available

2

Simplicity 5023100SM

CLUTCH,#51110100,ELECTRIC, 1" SHAFT

$535.99

$

Usually ships in 2-12 days

0

3

Simplicity 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, only 1 left!

0

4

Simplicity 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

5

Simplicity 5023253SM

CAPSCREW, CRANKSHAFT, 7/16-20 x 3-1/4"YZ
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

6

Simplicity 5042132SM

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 5050407X18SM

KEY, 1/4" SQ. X 2 1/4

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025011X18SM

BOLT, 5/16-18 X 2-1/4" GD5 YZ

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 5025188SM

WASHER, 5/16" INT. TOOTH LOCK

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 5403059CSM

PLATE, HEAT SHIELD - ORG

$43.99

$

Usually ships in 2-12 days

0

14

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

In Stock, only 1 left!

0

15

Simplicity 690970

GASKET, EXHAUST

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

17

Simplicity 5100907SM

MUFFLER, B&S-ELS

$

$

Not available

18

Simplicity 5104348YP

EXTENSION, TAILPIPE, 3" - BLK

$14.99

$

Usually ships in 2-12 days

0

19

Simplicity 5021808X8SM

SCREW

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5022308SM

BODY CLIP, 5/16-18 X 1/2 DEEP

$5.99

$

In Stock, only 2 left!

0

21

Simplicity 792303

PRE CLEANER (SV)

$10.99

$

In Stock, only 1 left!

0

22

Simplicity 792105

AIR CLEANER W/ PRE CLEANER (SV)

Note: (INCLUDES REF NO 21)

$28.99

$

In Stock, Qty 20+

0

23

Simplicity 95050

SCREW, CROSS RECESSED THREAD
(Superseded to 691138)

Note: (EXPORT MODELS ONLY)

$3.99

$

In Stock, Qty 18

0

24

Simplicity 793821

COVER, STATIC / LABEL ASSEMBLY
(Superseded to 798767)

Note: (EXPORT MODELS ONLY)

$45.99

$

In Stock, Qty 8

0

25

Simplicity 5021500SM

CLAMP, VINYL INSULATED

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 703332

WASHER, 1/4 SAE (5025154)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

30

Simplicity 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 696854

OIL FILTER (SV)

Note: (NOT SHOWN)

$13.99

$

In Stock, Qty 20+

0
