ZT 3000 B 2446 (5900773) - Simplicity ZT 3000 Series 46" Zero-Turn Mower, 24hp 46" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

ZT 3000 Series 46" Zero-Turn Mower, 24hp

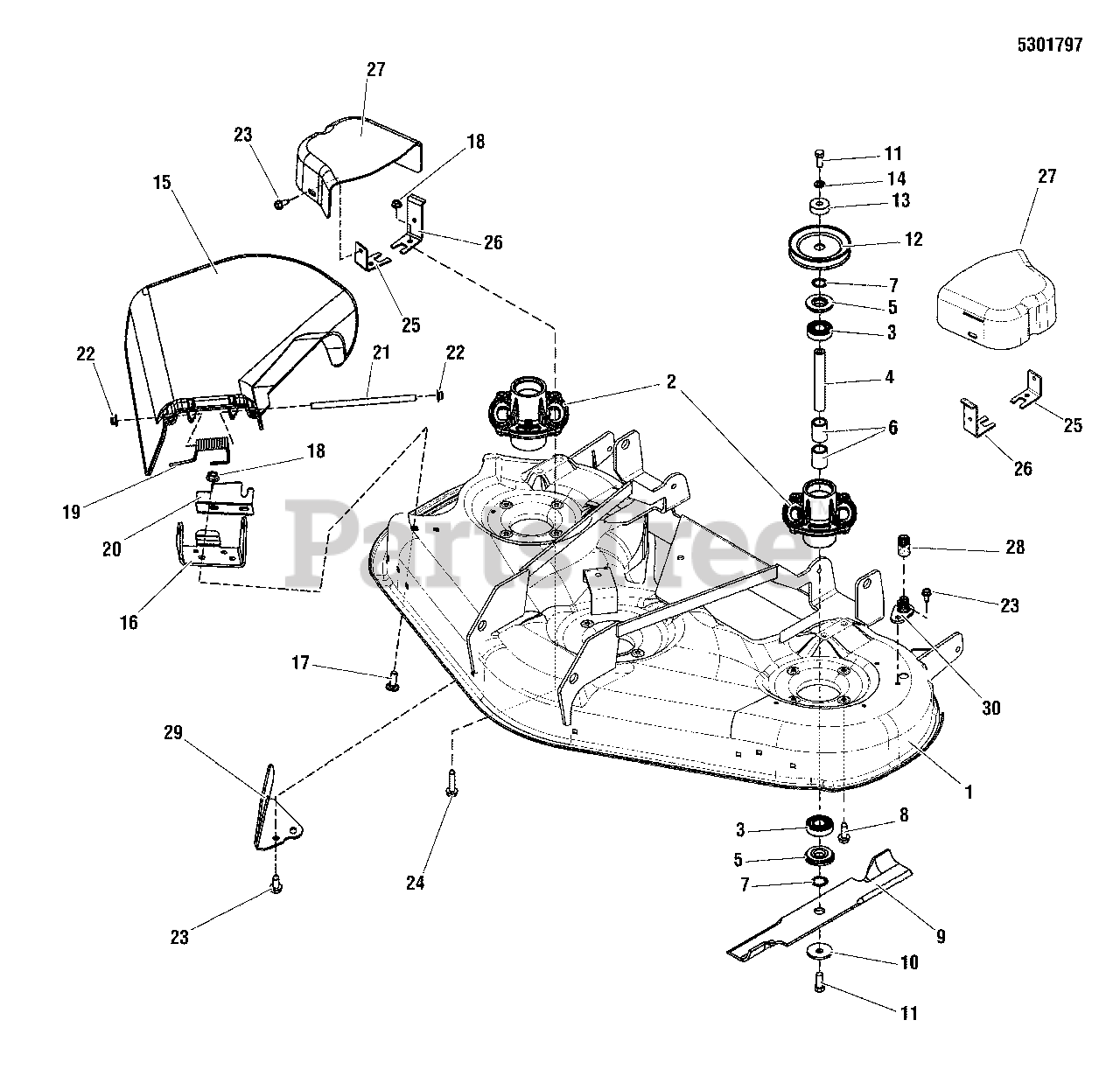

46" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Simplicity 5600356

DECK SHELL W/ DECALS, 46, SMI ZT3000
(Superseded to 5600356YP)

$1434.99

$

Usually ships in 2-12 days

0

2

Simplicity 1737352SM

HOUSING, SPINDLE, CAST STEEL, MACHINED
(Superseded to 1737352YP)

$43.99

$

In Stock, Qty 9

0

3

Simplicity 1735399SM

BEARING-BALL 20MM 46" MWR
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

4

Simplicity 1735326SM

SHAFT-SPINDLE 20MM DIA 134.60MM LG
(Superseded to 1735326YP)

$27.99

$

In Stock, only 4 left!

0

5

Simplicity 1735323SM

SHIELD-ARBOR 2.050OD 46" MWR
(Superseded to 1735323YP)

$6.99

$

In Stock, Qty 8

0

6

Simplicity 1735328SM

SPACER-BEARING PWDR MTL 46" MWR
(Superseded to 1735328YP)

$6.49

$

In Stock, only 3 left!

0

7

Simplicity 1960766SM

RING-SELF LOCKING 46" MWR
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1960373SM

SCREW-HEX WSHR HD TAPTT5/16-18X1.000BLK
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1737228SM

BLADE-MOWER 16.13LG 46" MWR
(Superseded to 1737228BZYP)

$21.99

$

In Stock, Qty 20+

0

10

Simplicity 1656916SM

WASHER, SPRING 0.475IDX1.75ODX.156TH BLK

$7.49

$

In Stock, Qty 20+

0

11

Simplicity 1920676SM

CAPSCREW-HEX HD 7/16-14X1.000 G5 BLK

$5.49

$

In Stock, Qty 15

0

12

Simplicity 1735686SM

PULLEY-4.6 OD 11GA SPLIT 46" MWR
(Superseded to 1735686YP)

$19.99

$

In Stock, only 1 left!

0

13

Simplicity 1735579SM

SPACER-LOWER DRIVE 46" MWR
(Superseded to 1735579YP)

$7.49

$

In Stock, only 1 left!

0

14

Simplicity 1918199SM

LOCKWSHER-SPRING .438 BLK
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1735447SM

DEFLECTOR-DISCH PLASTIC 46/52 DECKS
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

16

Simplicity 1736365ASM

PIVOT, HINGE
(Superseded to 1736365BMYP)

$12.99

$

In Stock, only 1 left!

0

17

Simplicity 1931333SM

BOLT-RD HD SH SQ NK 5/16-18X0.750 G5 BLK
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

18

Simplicity 1931277SM

NUT-HEX FLANGE 5/16-18, WHIZ LK SM, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Simplicity 1736364SM

SPRING-TORS DEFLECTOR 2.16LG 46" MWR
(Superseded to 1736364YP)

$8.49

$

Usually ships in 2-12 days

0

20

Simplicity 1737359ASM

PLATE, DEFLECTOR CLOSEOFF
(Superseded to 1737359BMYP)

$8.49

$

In Stock, only 3 left!

0

21

Simplicity 1736366SM

ROD, DEFLECTOR, YELLOW ZINC
(Superseded to 1736366YP)

$11.99

$

Usually ships in 2-12 days

0

22

Simplicity 7012542SM

NUT, PUSH, 5/16 BZ
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

23

Simplicity 1664847SM

SCREW-HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1930600SM

SCREW-HEX WSHR HD TAPTT5/16-18X1.500 BLK

$4.99

$

In Stock, Qty 19

0

25

Simplicity 5405736AYP

BRKT, BELT COVER, SHORT

$11.99

$

In Stock, only 2 left!

0

26

Simplicity 5405734AYP

BRKT, BELT COVER, LONG W/ TAB

$15.99

$

In Stock, only 2 left!

0

27

Simplicity 1735752SM

COVER-BELT BLACK POLY 46 + 52" MWRS
(Superseded to 1735752YP)

$29.99

$

Usually ships in 2-12 days

0

28

Simplicity 1756246YP

WASHOUT PORT-CONNECTOR 46+52" BLK POLY

$15.99

$

In Stock, only 1 left!

0

29

Simplicity 1737279ASM

BAFFLE, PINCHOFF
(Superseded to 1737279BMYP)

$16.99

$

In Stock, only 1 left!

0

30

Simplicity 1735716SM

ADAPTER-WASHOUT PORT 46+52" PLASTIC
(Superseded to 1756247YP)

$6.49

$

Usually ships in 2-12 days

0
