ZT 3000 B 2444 (5900660) - Simplicity ZT 3000 Series 44" Zero-Turn Mower, 24hp Parking Brake Group Parts Diagram

ZT 3000 Series 44" Zero-Turn Mower, 24hp

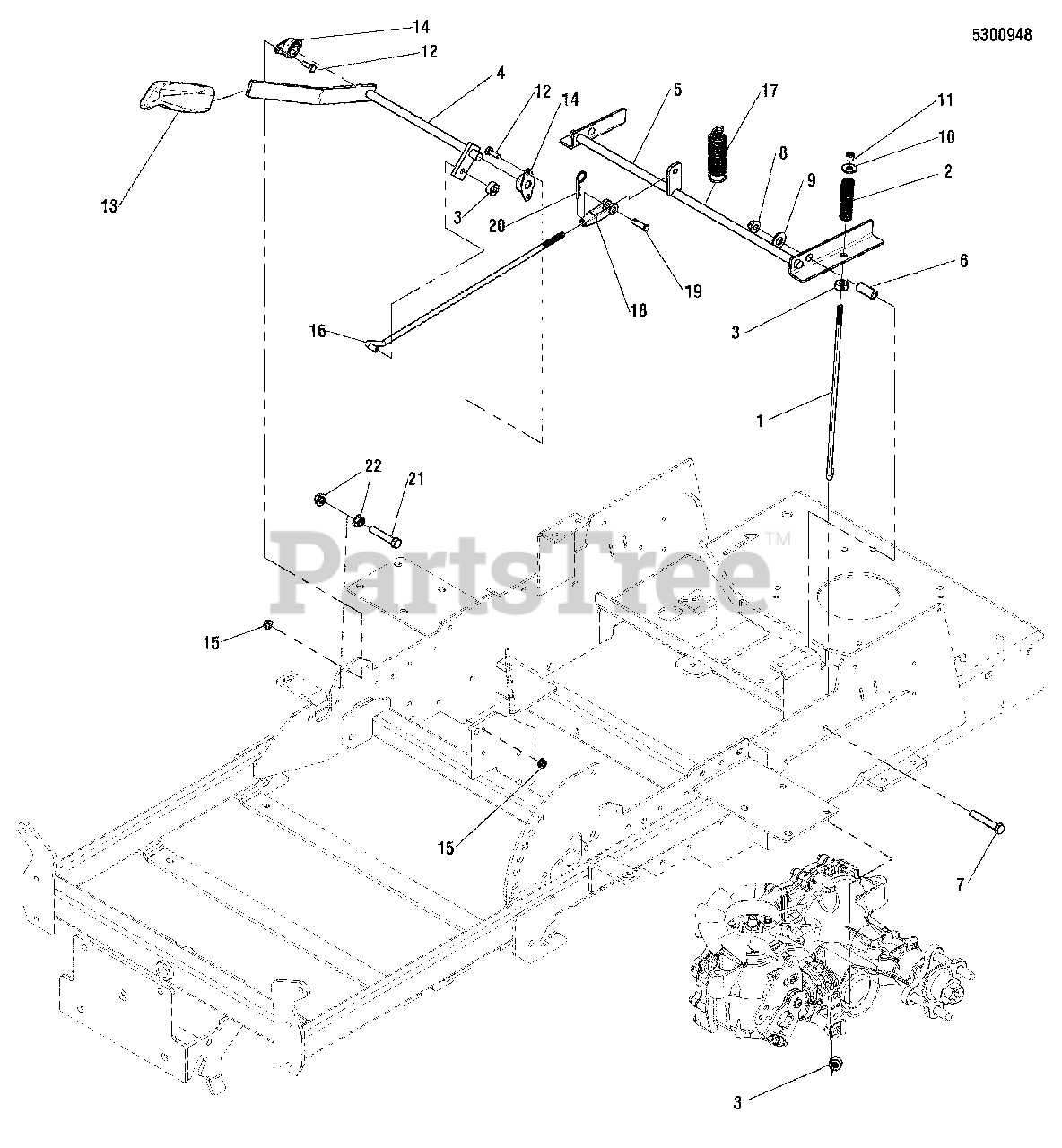

Parking Brake Group Parts Diagram

  • Title
1

Simplicity 5101058SM

ROD, BRAKE CTRL, LOWER - CONZ

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 5021102SM

SPRING, COMPRESSION

$7.49

$

Usually ships in 2-12 days

0

3

Simplicity 5020047SM

COLLAR, 5/16" SET

$7.49

$

In Stock, only 1 left!

0

4

Simplicity 5402883CSM

WELD, SHAFT, BRAKE HANDLE - ORG

$67.99

$

Usually ships in 2-12 days

0

5

Simplicity 5402884CSM

WELD, BRAKE SHAFT - ORG

$136.99

$

Usually ships in 2-12 days

0

6

Simplicity 5044992SM

SPACER, .38 X .50 X 1.56

$5.99

$

In Stock, only 2 left!

0

7

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4 GD5 YZ

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 12

0

10

Simplicity 5025337SM

WASHER, 5/16 USS
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 11

0

12

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5100171SM

GRIP, BLACK FLEXIBLE

$13.99

$

In Stock, only 2 left!

0

14

Simplicity 5101123SM

BEARING, 1/2" FLANGED

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 5101116SM

ROD, PULLER ROD

$16.99

$

Usually ships in 2-12 days

0

17

Simplicity 1608395SM

SPRING-EXTN 1.040ODX 04.000LG .105WIRE D

$17.99

$

Usually ships in 2-12 days

0

18

Simplicity 5023323SM

CLEVIS, 5/16-24, STEEL

$9.49

$

Usually ships in 2-12 days

0

19

Simplicity 5025213X8SM

PIN, CLEVIS, 5/16 X 1 YZ

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025210SM

PIN, HAIR, .0915 X 1-7/8
(Superseded to 703796)

$5.49

$

In Stock, only 1 left!

0

21

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2 GD5 YZ

$4.49

$

In Stock, Qty 6

0

22

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, only 2 left!

0
