ZT 3000 B 2444 (5900660) - Simplicity ZT 3000 Series 44" Zero-Turn Mower, 24hp 44" Mower Deck - Rollers Group Parts Diagram

ZT 3000 Series 44" Zero-Turn Mower, 24hp

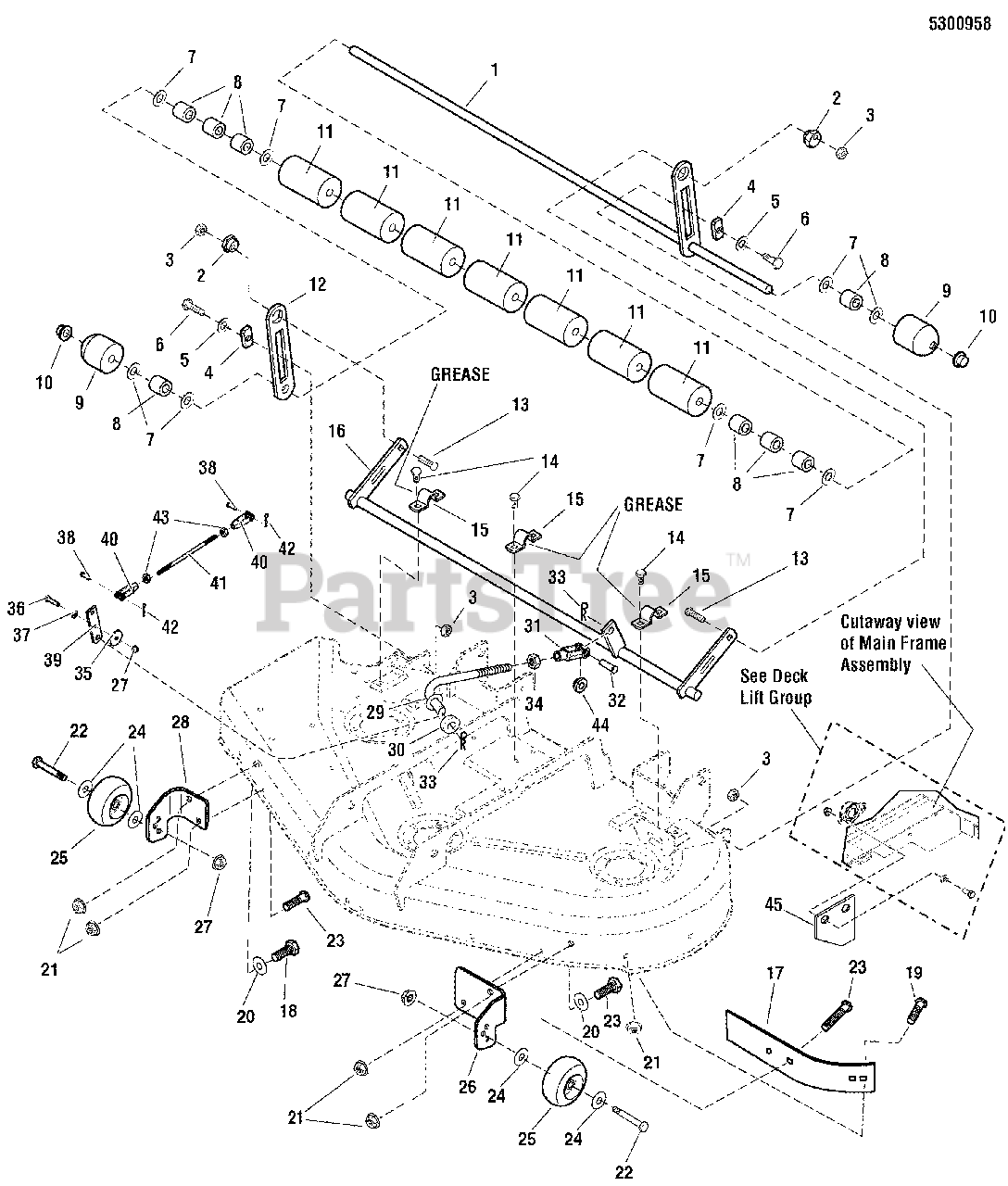

44" Mower Deck - Rollers Group Parts Diagram

  • Title

1

Simplicity 5048676CSM

WELD,SHAFT,ROLLER,44

$164.99

$

Usually ships in 2-12 days

0

2

Simplicity 1704082SM

NUT, Hex Adjusting, .99 DIA .687

$5.49

$

In Stock, Qty 16

0

3

Simplicity 2960681SM

NUT-HEX TOPLOCK SPIRAL FLNG 3/8-16 YEL
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 1677507SM

SLIDE .803 X 1.7

$6.99

$

In Stock, only 3 left!

0

5

Simplicity 1924361SM

WASHER-0500(0.53IDX1.25X.08THK)BLK
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 2172622SM

BOLT, Shoulder, 3/8-16 X 1.34

$6.99

$

In Stock, Qty 20+

0

7

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1602946SM

SPACER, .66 ID

$13.99

$

In Stock, Qty 20+

0

9

Simplicity 1717675SM

ROLLER,ROUNDED

$6.99

$

In Stock, Qty 20+

0

10

Simplicity 1960520SM

NUT-PUSH FOR .625 DIA STUD CAPPED BLK
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1668513SM

ROLLER-0.652ID 2.50 OD 4.10LG BLACK POLY

$10.99

$

In Stock, Qty 20+

0

12

Simplicity 5049040CSM

BAR, ROLLER

$26.99

$

In Stock, only 1 left!

0

13

Simplicity 1931352SM

BOLT-RD HD SH SQ NK 3/8-16X1.500 G5 BLK

$4.49

$

In Stock, Qty 5

0

14

Simplicity 1664847SM

SCREW-HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1665374SM

STRAP-1.00WD 3.06LG .134THK ROLLER ECOAT
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

16

Simplicity 5048672CSM

WELD,SHAFT,DECK LIFT,44

$100.99

$

Usually ships in 2-12 days

0

17

Simplicity 1724538ASM

SHORT BLOWOUT BAFFLE BLACK

$45.99

$

In Stock, only 1 left!

0

18

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE

$3.99

$

In Stock, Qty 9

0

19

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4", CARRIAGE

$3.99

$

In Stock, Qty 5

0

20

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 2108765SM

BOLT-WHEEL 3/8-16X2.781 .750 THRD YELLOW

$6.49

$

In Stock, Qty 20+

0

23

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1960027SM

WASHER-0500(0.51IDX0.87ODX.06THK) BLK
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1714760SM

WHEEL- 2.00 WIDE 3.92 DIA 0.531ID POLY

$6.49

$

In Stock, Qty 20+

0

26

Simplicity 5049017CSM

BRACKET, GAUGE WHEEL, LH
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 1 left!

0

27

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 5049018CSM

BRACKET, GAUGE WHEEL, RH
(Superseded to 1719853ASM)

$29.99

$

In Stock, only 1 left!

0

29

Simplicity 5101286SM

ROD, DECK LIFT

$29.99

$

Usually ships in 2-12 days

0

30

Simplicity 5049184SM

SPACER, HYDRO PULLEY

$5.49

$

In Stock, Qty 6

0

31

Simplicity 5023174SM

CLEVIS, 1/2-20, STEEL

$16.99

$

Usually ships in 2-12 days

0

32

Simplicity 5025328X12SM

PIN, CLEVIS, 1/2 X 1 1/2, YZP

$4.99

$

In Stock, only 4 left!

0

33

Simplicity 5025210SM

PIN, HAIR, .0915 X 1-7/8
(Superseded to 703796)

$5.49

$

In Stock, only 1 left!

0

34

Simplicity 5025089SM

NUT, 1/2-20 HEX JAM

$3.99

$

In Stock, Qty 18

0

35

Simplicity 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

In Stock, only 3 left!

0

36

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

38

Simplicity 5025214X8SM

PIN, CLEVIS, 3/8 X 1
(Superseded to 7029687YP)

$7.99

$

In Stock, only 1 left!

0

39

Simplicity 5049482CSM

LINK, ROLLER REVERSE

$8.49

$

Usually ships in 2-12 days

0

40

Simplicity 5021171SM

CLEVIS 3/8-24, PLASTIC

$15.99

$

Usually ships in 2-12 days

0

41

Simplicity 5101136SM

ROD, LEVER CONNECTING

$3.99

$

Usually ships in 2-12 days

0

42

Simplicity 5025201X6SM

PIN, COTTER, 3/32" X 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

43

Simplicity 5025309SM

NUT, 3/8-24 HEX JAM

$2.99

$

Usually ships in 2-12 days

0

44

Simplicity 5048258SM

BUSHING, DECK SUPPORT

$11.99

$

In Stock, only 2 left!

0

45

Simplicity 5401053CSM

PLATE, DECK STOP

$29.99

$

Usually ships in 2-12 days

0
