ZT 2761 F - Simplicity Stallion 61" Zero-Turn Mower, 27hp Kohler Rear Suspension Group (7087rsg) Parts Diagram

Stallion 61" Zero-Turn Mower, 27hp Kohler

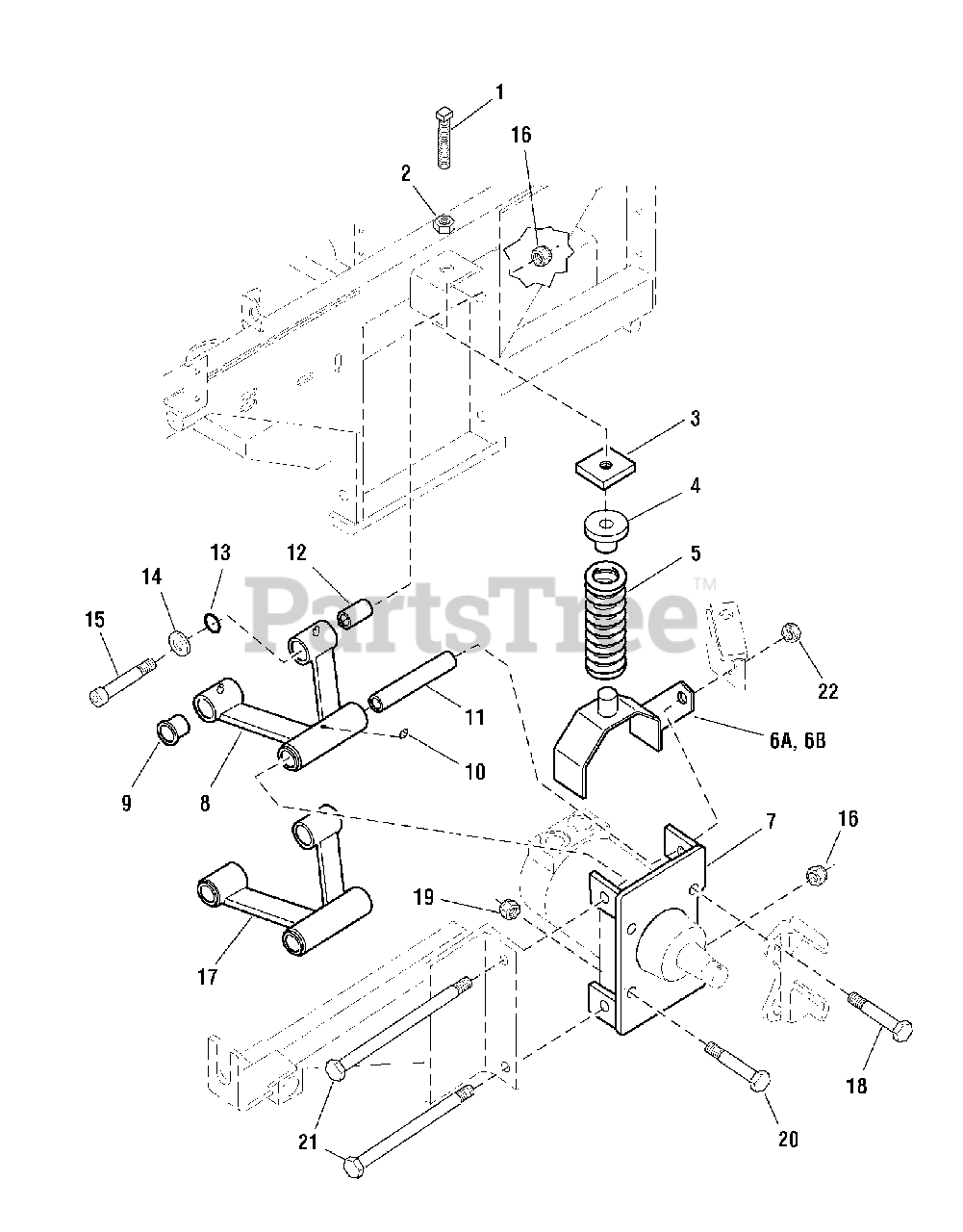

Rear Suspension Group (7087rsg) Parts Diagram

  • Title

1

Simplicity 5025298SM

SET SCREW, Square Hd, 1/2-13 x 3

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 5025301SM

NUT, Hex, Jam, 1/2-13

$3.49

$

In Stock, only 1 left!

0

3

Simplicity 5045904SM

SPRING COMPRESSION PLATE

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 5045898SM

SPRING RETAINER

$

$

Not available

5

Simplicity 5021747SM

SPRING, Suspension
(Superseded to 5022323SM)

$

$

Not available

6A

Simplicity 5045601CSM

SPRING SADDLE-LH

$

$

Not available

6B

Simplicity 5045602CSM

SPRING SADDLE-RH (not shown)

$

$

Not available

7

Simplicity 5045588CSM

WHEEL MOTOR MOUNT

$84.99

$

Usually ships in 2-12 days

0

8

Simplicity 5061038CSM

SUSPENSION A-ARM, Upper

$222.99

$

Usually ships in 2-12 days

0

9

Simplicity 5022250SM

BUSHING, Flange

$9.49

$

Usually ships in 2-12 days

0

10

Simplicity 5020095SM

GREASE FITTING

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 5045305SM

PIVOT SLEEVE, Long

$64.99

$

Usually ships in 2-12 days

0

12

Simplicity 5045306SM

PIVOT SLEEVE, Short

$32.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022269SM

O-RING

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5045307SM

WASHER, A-Arm

$5.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025294SM

CAPSCREW, Allen Head, 1/2-13 x 3

$6.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

17

Simplicity 5046857CSM

SUSPENSION A-ARM, Lower

$195.99

$

Usually ships in 2-12 days

0

18

Simplicity 502501824

CAPSCREW, Hex Hd, 1/2-20 x 3

$

$

Not available

19

Simplicity 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

In Stock, only 2 left!

0

20

Simplicity 5025018X20SM

CAPSCREW, Hex Hd, 1/2-20 x 2-1/2

$6.99

$

In Stock, only 1 left!

0

21

Simplicity 5025017X52SM

CAPSCREW, Hex Hd, 1/2-13 x 6-1/2

$10.99

$

In Stock, only 2 left!

0

22

Simplicity 5025332

NUT, Hex, Side Lock, 1/2-13
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 12

0
