ZT 2761 F - Simplicity Stallion 61" Zero-Turn Mower, 27hp Kohler Parking Brake Group-Lower (7087pbgl) Parts Diagram

Stallion 61" Zero-Turn Mower, 27hp Kohler

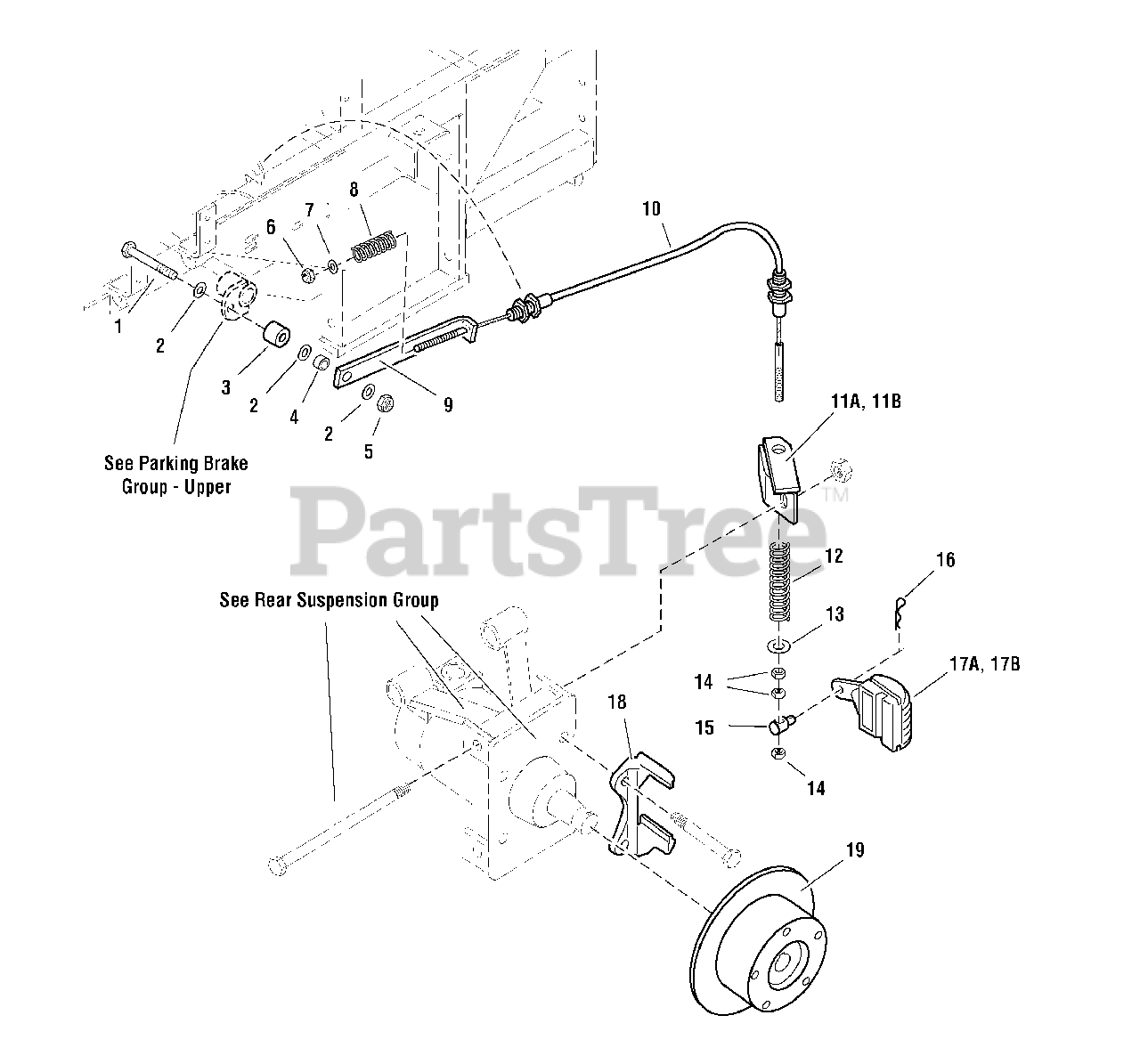

Parking Brake Group-Lower (7087pbgl) Parts Diagram

  • Title

1

Simplicity 5025013X18SM

CAPSCREW, Hex Hd, 3/8-16 x 2-1/4

$3.99

$

In Stock, only 1 left!

0

2

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

3

Simplicity 5047125SM

SPACER, .39 x 1.00 x .88

$7.99

$

In Stock, only 2 left!

0

4

Simplicity 5041930SM

SPACER, .38 x .50 x .27

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 5025045SM

NUT, Hex, Nylon Lock, 5/16-24

$3.49

$

In Stock, Qty 11

0

7

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

8

Simplicity 5022361SM

SPRING, Compression

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 5045633CSM

LINK, Brake Lock

$

$

Not available

10

Simplicity 5022209SM

CABLE, Brake

$101.99

$

Usually ships in 2-12 days

0

11A

Simplicity 5045604CSM

BRACKET, Cable Mount-LH

$

$

Not available

11B

Simplicity 5045605CSM

BRACKET, Cable Mount-RH (not shown)

$

$

Not available

12

Simplicity 5021494SM

SPRING, Compression

$13.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025164SM

WASHER, Fender, 5/16

$3.99

$

In Stock, only 1 left!

0

14

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5045947SM

ADJUSTER, Brake Linkage

$26.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025211SM

HAIRPIN CLIP

$3.99

$

In Stock, only 1 left!

0

17A

Simplicity 5022342SM

BRAKE CALIPER, LH

$208.99

$

Usually ships in 2-12 days

0

17B

Simplicity 5022341SM

BRAKE CALIPER, RH (not shown)

$208.99

$

Usually ships in 2-12 days

0

18

Simplicity 5022340SM

MOUNT, Brake Caliper

$153.99

$

Usually ships in 2-12 days

0

19

Simplicity 5022339SM

HUB, 8" Brake Disc

$311.99

$

Usually ships in 2-12 days

0
