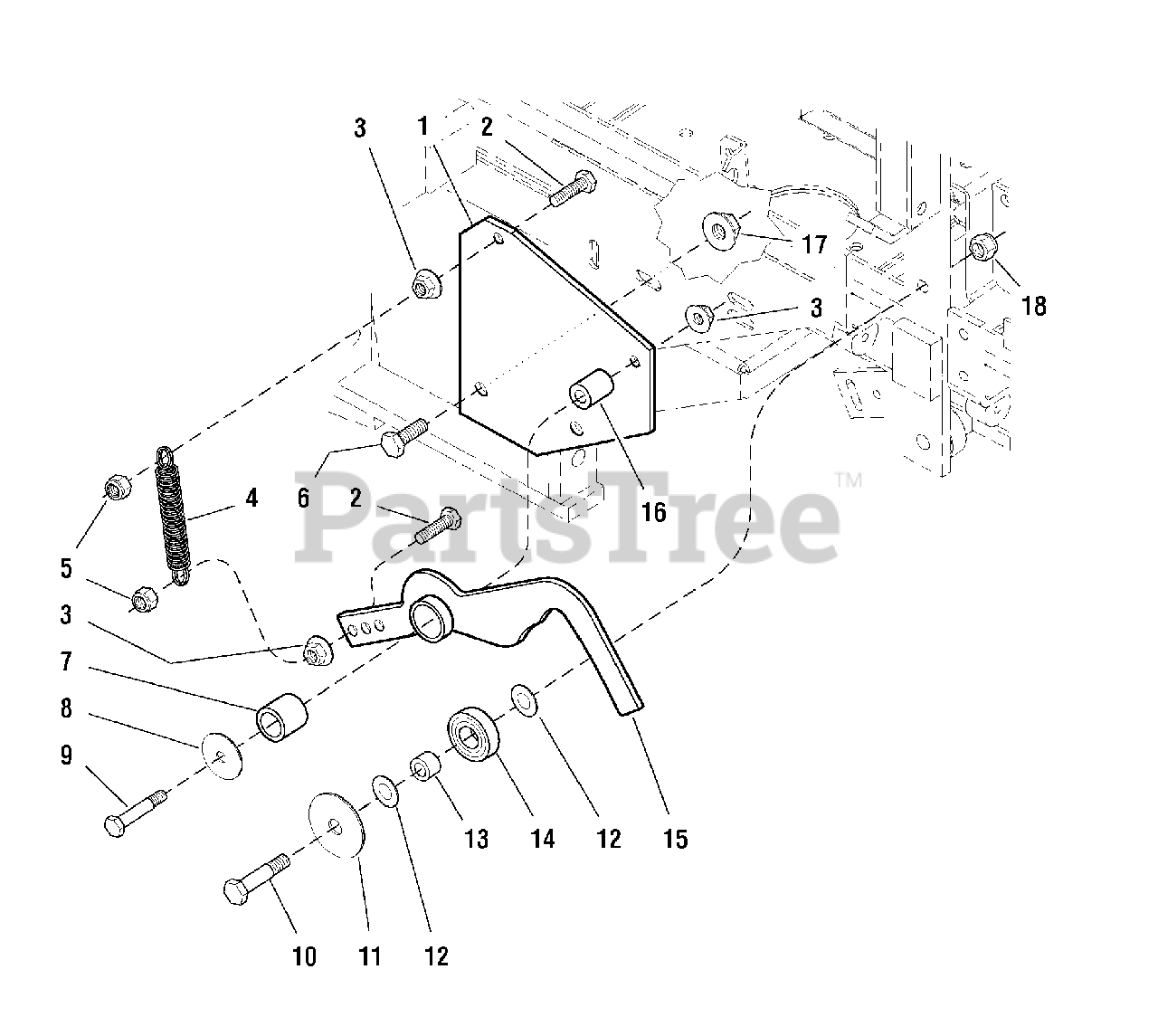

ZT 2761 F - Simplicity Stallion 61" Zero-Turn Mower, 27hp Kohler Neutral Return Group (S/N: 1026 & below) (7087nrg1) Parts Diagram

Stallion 61" Zero-Turn Mower, 27hp Kohler

Neutral Return Group (S/N: 1026 & below) (7087nrg1) Parts Diagram

  • Title

1

Simplicity 5046411CSM

NEUTRAL RETURN MOUNT PLATE

$

$

Not available

2

Simplicity 502505510

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4 TFL

$

$

Not available

3

Simplicity 5025139SM

NUT, Hex, Serrated Flange, 5/16-18

$3.49

$

In Stock, Qty 12

0

4

Simplicity 5020807SM

SPRING, Extension

$8.49

$

In Stock, Qty 11

0

5

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 5020876BSM

BUSHING, Brass

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025164SM

WASHER, 5/16 Fender

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 5025011X14SM

CAPSCREW, Hex Hd, 5/16-18 x 1-3/4

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 5025013X14SM

CAPSCREW, Hex Hd, 3/8-16 x 1-3/4

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 5025326SM

WASHER, 3/8 x 2

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

13

Simplicity 5020880SM

INSERT, Bearing

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1705897SM

BEARING, BALL 11/16X1-9/16X15/32

$8.49

$

In Stock, Qty 20+

0

15

Simplicity 5046414CSM

NEUTRAL RETURN LEVER

$72.99

$

Usually ships in 2-12 days

0

16

Simplicity 5042134SM

SPACER, .32 x .75 x 1.06

$6.49

$

In Stock, only 1 left!

0

17

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

18

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0
