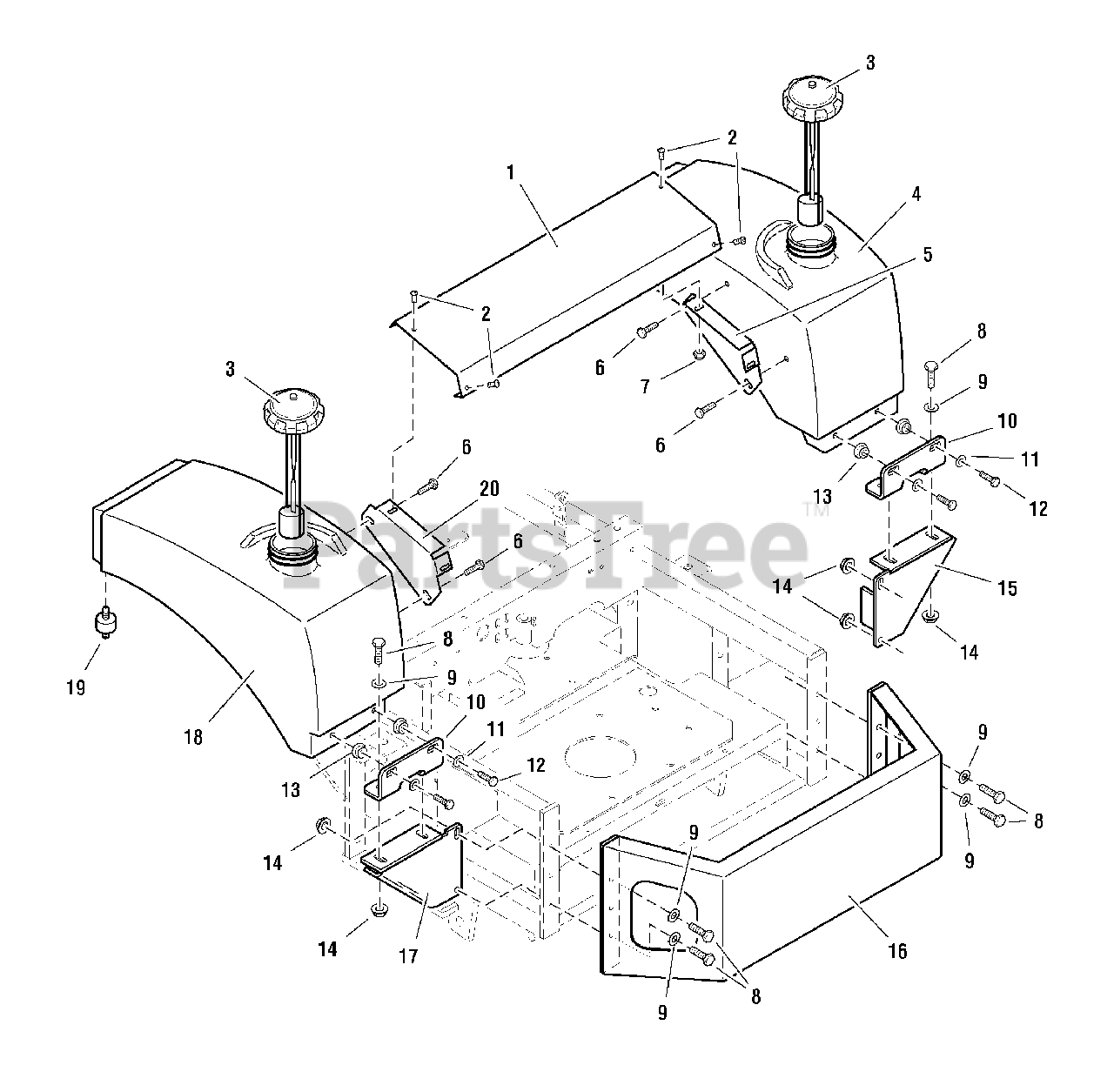

ZT 2761 F - Simplicity Stallion 61" Zero-Turn Mower, 27hp Kohler Fuel Tank, Mount & Bumper Group (S/N: 138 & below) (7087ftg1) Parts Diagram

Stallion 61" Zero-Turn Mower, 27hp Kohler

Fuel Tank, Mount & Bumper Group (S/N: 138 & below) (7087ftg1) Parts Diagram

  • Title

1

Simplicity 5046491CSM

FUEL TANK TIE BAR

$

$

Not available

2

Simplicity 5025299X6SM

SCREW, Allan Hd, 1/4-20 x 3/4

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 5022158SM

CAP, Fuel Tank w/ Gauge
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

4

Simplicity 5045494KITSM

FUEL TANK-RH, Complete (see footnote)

$307.99

$

Usually ships in 2-12 days

0

5

Simplicity 5046489CSM

TIE BAR MOUNT-RH

$9.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

7

Simplicity 5025126SM

NUT, Hex, Nylon Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

8

Simplicity 5025013X10SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, Qty 12

0

9

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

10

Simplicity 5047938CSM

REAR MOUNT BRACKET

$17.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

12

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022394SM

RUBBER BUSHING

$

$

Not available

14

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

15

Simplicity 5047937CSM

TANK MOUNT-RH

$

$

Not available

16

Simplicity 5047852CSM

BUMPER

$176.99

$

Usually ships in 2-12 days

0

17

Simplicity 5047936CSM

TANK MOUNT-LH

$

$

Not available

18

Simplicity 5045495KITSM

FUEL TANK-LH, Complete (see footnote)

$365.99

$

Usually ships in 2-12 days

0

19

Simplicity 5022395SM

RUBBER ISOLATOR

$29.99

$

Usually ships in 2-12 days

0

20

Simplicity 5046490CSM

TIE BAR MOUNT-LH

$62.99

$

Usually ships in 2-12 days

0
