ZT 2761 F - Simplicity Stallion 61" Zero-Turn Mower, 27hp Kohler Control Cover & Mount Group (7087ccmg) Parts Diagram

Stallion 61" Zero-Turn Mower, 27hp Kohler

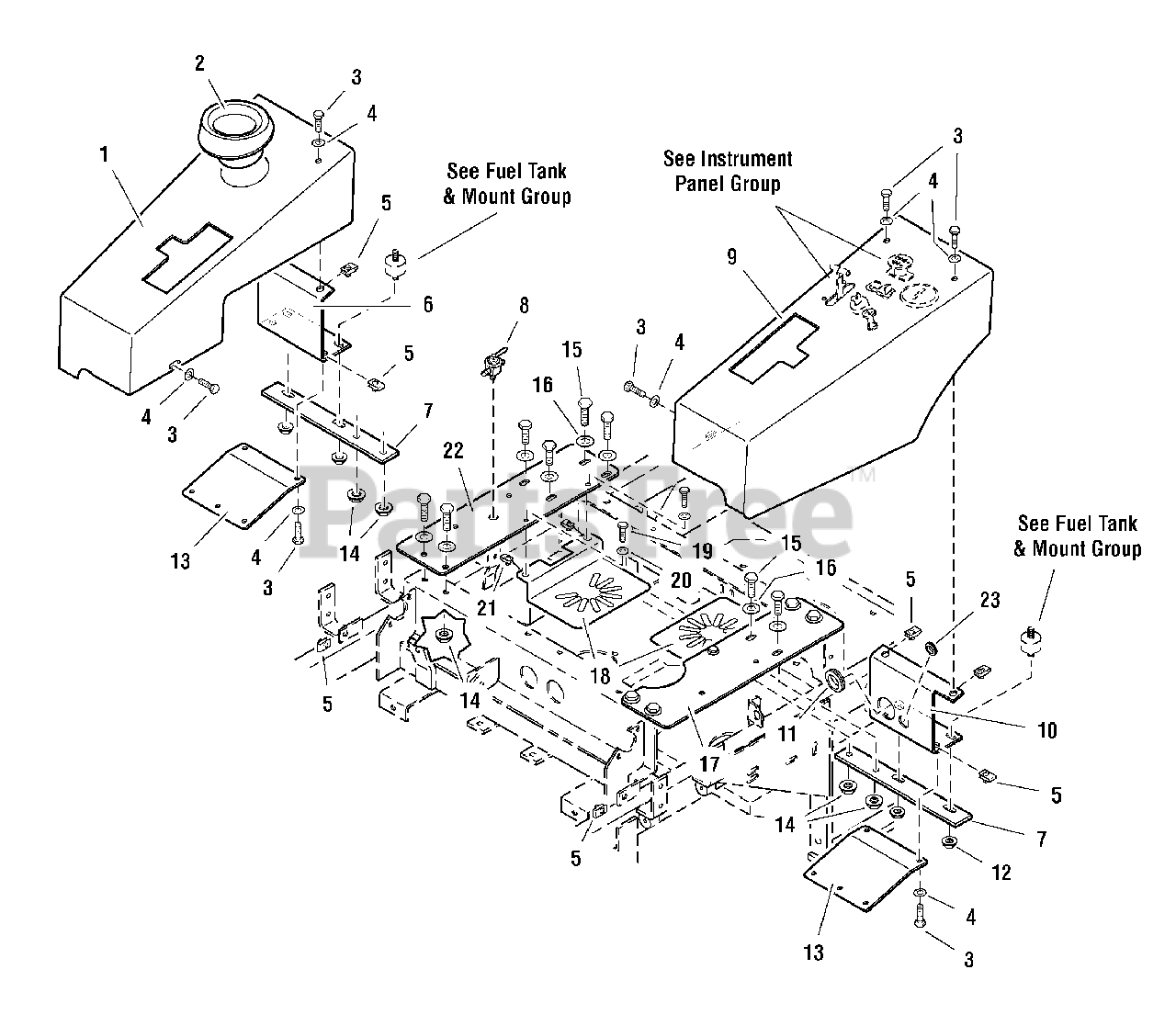

Control Cover & Mount Group (7087ccmg) Parts Diagram

  • Title

1

Simplicity 5047849CSM

CONTROL COVER-RH

$

$

Not available

2

Simplicity 1719392SM

CUP HOLDER

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

4

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, Qty 5

0

6

Simplicity 5047941CSM

CONTROL COVER MOUNT-RH

$

$

Not available

7

Simplicity 5045890CSM

TANK MOUNT BAR

$

$

Not available

8

Simplicity 5022030SM

FUEL SHUT OFF VALVE

$43.99

$

Usually ships in 2-12 days

0

9

Simplicity 5047848CSM

CONTROL COVER-LH

$125.99

$

Usually ships in 2-12 days

0

10

Simplicity 5047940CSM

CONTROL COVER MOUNT-LH

$

$

Not available

11

Simplicity 5021379SM

GROMMET

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Simplicity 5047942CSM

DEBRIS GUARD

$36.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

15

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

17

Simplicity 5046417CSM

COVER MOUNT-LH

$38.99

$

Usually ships in 2-12 days

0

18

Simplicity 5046472CSM

FAN SHIELD

$32.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 4 left!

0

20

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 5022665SM

BODY CLIP, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 5046426CSM

COVER MOUNT-RH

$38.99

$

Usually ships in 2-12 days

0

23

Simplicity 5021077SM

GROMMET

$2.99

$

Usually ships in 2-12 days

0
