ZT 2752 (2691040-01) - Simplicity 52" Zero-Turn Mower, 27hp Briggs & Stratton Transmission Group - 2800 Parts Diagram

52" Zero-Turn Mower, 27hp Briggs & Stratton

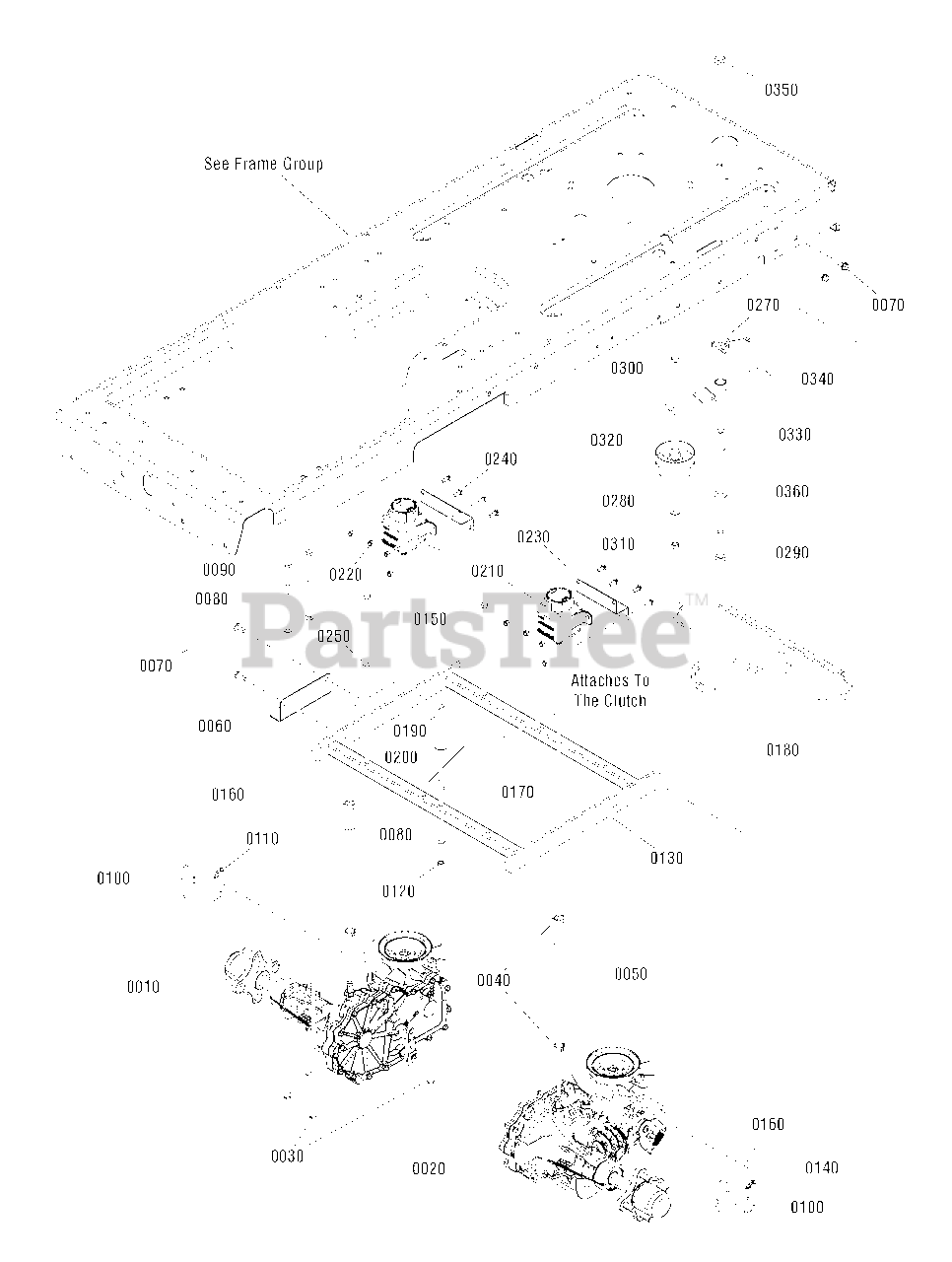

Transmission Group - 2800 Parts Diagram

  • Title

0010

Simplicity 7103419YP

TRANSAXLE, Hydro Gear ZT-2800 RH (ZK-MPBB-3F7C-1RLX)

$1310.99

$

Usually ships in 2-12 days

0

0020

Simplicity 7103418YP

TRANSAXLE, Hydro Gear ZT-2800 LH (ZK-JPBB-3F7B-1RLX)

$1481.99

$

Usually ships in 2-12 days

0

0030

Simplicity 015X88MA

NUT, 5/16-18 Hex Flange Center Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 5025474SM

CLAMP, Hose, .75 Free Dia.

$3.49

$

Usually ships in 2-12 days

0

0050

Simplicity 703343

HOSE, Reservoir, Push-Lock, 1/2X8.50

$12.99

$

Usually ships in 2-12 days

0

0060

Simplicity 7300000BMYP

BRACKET, Transaxle Support

$12.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1923701SM

SCREW, 5/16-18X0.750, Washer Head Taptite, Zinc/Clear
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0080

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0090

Simplicity 7091944SM

SCREW, 5/16-18 x 2-3/4 Hex Head Cap, GR 5 YZ
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

0100

Simplicity 7103512YP

ROD, Roll Release

$19.99

$

In Stock, only 1 left!

0

0110

Simplicity 1717024SM

CLIP, Rod End Clevis RH for .188 Dia. Rod

$7.49

$

In Stock, only 2 left!

0

0120

Simplicity 703164

NUT, 5/16-18, GRB, HEX, CNTR LK, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0130

Simplicity 7400288BMYP

WELDMENT, Transaxle Support

$210.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1725550SM

CLIP, Rod End Clevis LH for .188 Dia. Rod

$5.99

$

Usually ships in 2-12 days

0

0150

Simplicity 7091830SM

SCREW, 5/16-18 x 3 Hex Head Cap, GR 5, YZ
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

0160

Simplicity 7103537YP

CAP, Vinyl

$3.49

$

Usually ships in 2-12 days

0

0170

Simplicity 7104674YP

RUBBER, Anti-Rotation

$

$

Not available

0180

Simplicity 7100102SM

V-BELT, Hydro Drive (HA Section, 58 EL)

$43.99

$

In Stock, Qty 20+

0

0190

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5 YZ
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7011763SM

FENDER WASHER, 5/16

$4.49

$

In Stock, only 1 left!

0

0210

Simplicity 5100473SM

RESERVOIR, Hydro Oil, 350 M

Note: (Use Shell 20W-50)

$40.99

$

Usually ships in 2-12 days

0

0220

Simplicity 703232

NUT, 1/4-20 Hex Nyloc, YZ

$4.49

$

In Stock, Qty 20+

0

0230

Simplicity 7301169BZYP

BRACKET, Tank, Expansion

$6.99

$

Usually ships in 2-12 days

0

0240

Simplicity 703101

BOLT, 1/4-20 x 3/4 Round Head Short Square Neck Carriage, GR 5, YZ

$3.99

$

In Stock, only 2 left!

0

0250

Simplicity 7015686SM

SHIM WASHER, 5/16 I.D.

$3.99

$

Usually ships in 2-12 days

0

0270

Simplicity 7044760SM

SPRING, Torsion, RH Wind

$33.99

$

In Stock, only 2 left!

0

0280

Simplicity 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0290

Simplicity 7091218SM

SCREW, 1/2-13 x 2-1/2 Hex Head Cap, GR 5, BP
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

0300

Simplicity 7091305SM

CAPSCREW, 3/8-16 x 2, Hex Head, GR5, Zinc/Clear
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0310

Simplicity 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 4 left!

0

0320

Simplicity 7100103SM

IDLER, Pulley, Backside, 3.25OD X .391 ID X 1.63

$43.99

$

In Stock, Qty 8

0

0330

Simplicity 7200034SM

SPACER, Hydro Idler

$

$

Not available

0340

Simplicity 7400208BMYP

WELDMENT, Hydro Idler

$45.99

$

In Stock, only 1 left!

0

0350

Simplicity 7091894SM

NUT, 1/2-13 Hex Center Lock, GR 5, YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

0360

Simplicity 7091587SM

WASHER, 1/2 X .062 X .121, Flat (SAE)
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0
