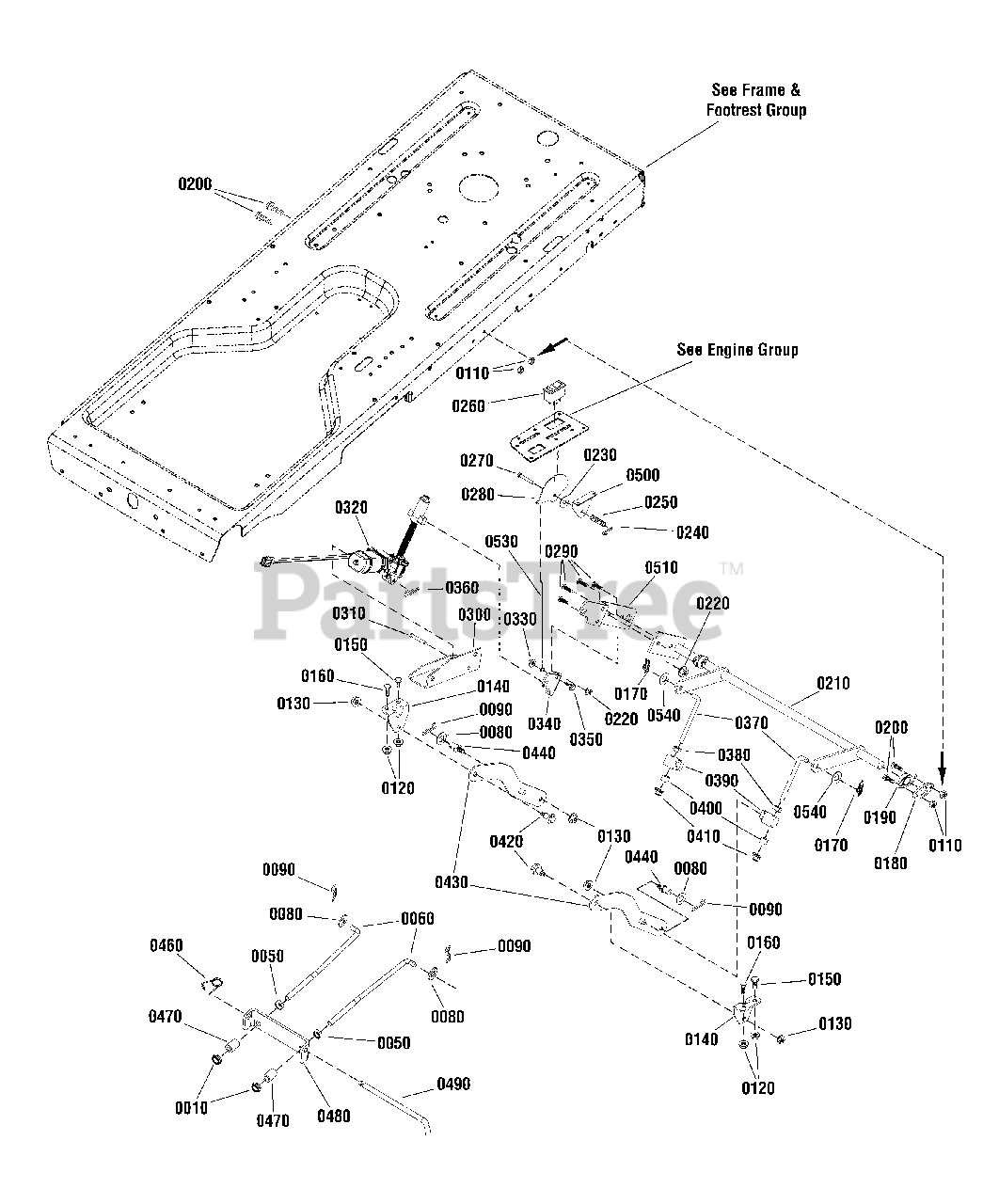

ZT 2752 (2691040-01) - Simplicity 52" Zero-Turn Mower, 27hp Briggs & Stratton Lift Group, EHOC Roller Parts Diagram

52" Zero-Turn Mower, 27hp Briggs & Stratton

Lift Group, EHOC Roller Parts Diagram

  • Title

0010

Simplicity 1960379SM

NUT, 1/2-13, Hex Lock

$4.99

$

In Stock, Qty 18

0

0050

Simplicity 1913744SM

NUT, 1/2-13 Hex Jam

$4.99

$

In Stock, Qty 19

0

0060

Simplicity 1736081YP

ROD, Front Rail

$12.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1960170SM

WASHER, 1/2 Flat
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 703300

PIN, Hair, 3/32 x 1-5/8, GR5

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 7092126SM

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0120

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0130

Simplicity 015X98MA

NUT, 3/8-16 Hex Flange Center Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0140

Simplicity 7300028BMYP

BRACKET, Deck Hanger

$14.99

$

Usually ships in 2-12 days

0

0150

Simplicity 7091811SM

BOLT, 5/16-18 x 5/8 Hex Flange Lock, GR 5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

0160

Simplicity 703585

SCREW, 5/16-18 x 1 Hex Head Cap, GR 5

$4.99

$

Usually ships in 2-12 days

0

0170

Simplicity 703355

PIN, 3/8 Cotter

$3.99

$

In Stock, Qty 14

0

0180

Simplicity 7301125BMYP

SPACER, Bearing, 1/4

$12.99

$

In Stock, only 2 left!

0

0190

Simplicity 7026196SM

BEARING, Flange

$7.49

$

In Stock, only 2 left!

0

0200

Simplicity 703925

SCREW, 1/4-20 x 3/4 Hex Head Cap, GR 5

$4.49

$

In Stock, Qty 7

0

0210

Simplicity 7400011BMYP

DECK LIFT ASSEMBLY
(Superseded to 1757866BMYP)

Note: (Use before serial Nos. 2016328880)

$193.99

$

In Stock, only 1 left!

0

0210

Simplicity 1757866BMYP

DECK LIFT ASSEMBLY

Note: (Use after serial Nos. 2016328880)

$193.99

$

In Stock, only 1 left!

0

0220

Simplicity 703333

NUT, 3/8-16, GR5, Flanged Lock

$4.99

$

In Stock, Qty 20+

0

0230

Simplicity 7023649YP

WASHER, 5/16 x 1 1/4

$4.49

$

In Stock, only 2 left!

0

0240

Simplicity 703464

PIN, 1/16 X 0.50 Cotter, GR 5

$4.49

$

In Stock, only 1 left!

0

0250

Simplicity 164X34MA

SPRING, Compression

$5.99

$

In Stock, Qty 14

0

0260

Simplicity 1734141SM

SWITCH, Rocker Height of Cut

$47.99

$

In Stock, Qty 19

0

0270

Simplicity 578309MA

PIN, 1/4

$5.49

$

In Stock, Qty 6

0

0280

Simplicity 7301119BCYP

LEVER, Indicator, Height-Of-Cut

$8.49

$

Usually ships in 2-12 days

0

0290

Simplicity 7091304SM

SCREW, 3/8-16 x 1 Hex Head Cap, GR5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

0300

Simplicity 7301104BMYP

BRACKET, Primary Deck Lift

$

$

Not available

0310

Simplicity 703063

PIN, 1/4

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 7103818YP

MOTOR, Actuator, Lift, Deck

$148.99

$

In Stock, Qty 13

0

0330

Simplicity 703233

NUT, 1/4-20, Serrated Flange, GR5

$4.49

$

In Stock, Qty 5

0

0340

Simplicity 7301105BMYP

BRACKET, Lift

$15.99

$

Usually ships in 2-12 days

0

0350

Simplicity 009X54MA

BOLT, Shoulder, 1/4-20 X .700

$5.49

$

In Stock, only 1 left!

0

0360

Simplicity 1722460SM

HAIRPIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0370

Simplicity 1734217SM

ROD, Mower Lift

$14.99

$

In Stock, Qty 5

0

0380

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

0390

Simplicity 1731894SM

TRUNNION, Powdered Metal, .406 ID Hole

$9.99

$

In Stock, only 3 left!

0

0400

Simplicity 1666294SM

SPACER, .385 ID, .669 OD, .455 LG, PM Yel

$4.99

$

In Stock, Qty 20+

0

0410

Simplicity 703158

NUT, 3/8-16, Hex Flange, ESNA, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0420

Simplicity 1732129SM

BOLT, 3/8-16 X 0.94 LG, .49 Dia., Shoulder, Black

$5.99

$

Usually ships in 2-12 days

0

0430

Simplicity 7301098BMYP

BAR, Rear Lift

$28.99

$

In Stock, only 4 left!

0

0440

Simplicity 094067MA

PIN, 3/8-16 X .50,Threaded Shoulder, Zinc/Clear
(Superseded to 704054)

Note: (Was 721221 or 094067MA)

$7.49

$

In Stock, Qty 20+

0

0460

Simplicity 2176012SM

RETAINER, Pin Spring For .312/.375 Pin BLK
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0470

Simplicity 1679166SM

SPACER, .520 ID x .88 ID x 1.185 YZ

$7.49

$

In Stock, only 2 left!

0

0480

Simplicity 1737059BMYP

HANGER, Front Mower

$

$

Not available

0490

Simplicity 1731414SM

ROD, Latch, 1/2 Dia. x 9 Long, YZ

$14.99

$

Usually ships in 2-12 days

0

0500

Simplicity 7301120BMYP

BRACKET, Indicator, Height-Of-Cut

$9.99

$

Usually ships in 2-12 days

0

0510

Simplicity 7301103BMYP

BRACKET, Motor Mount

$14.99

$

Usually ships in 2-12 days

0

0530

Simplicity 7103956YP

ROD, Indicator, Height-Of-Cut

$9.99

$

In Stock, only 1 left!

0

0540

Simplicity 703590

WASHER, .406, Flat, Zinc/Clear

$3.99

$

In Stock, Qty 19

0
