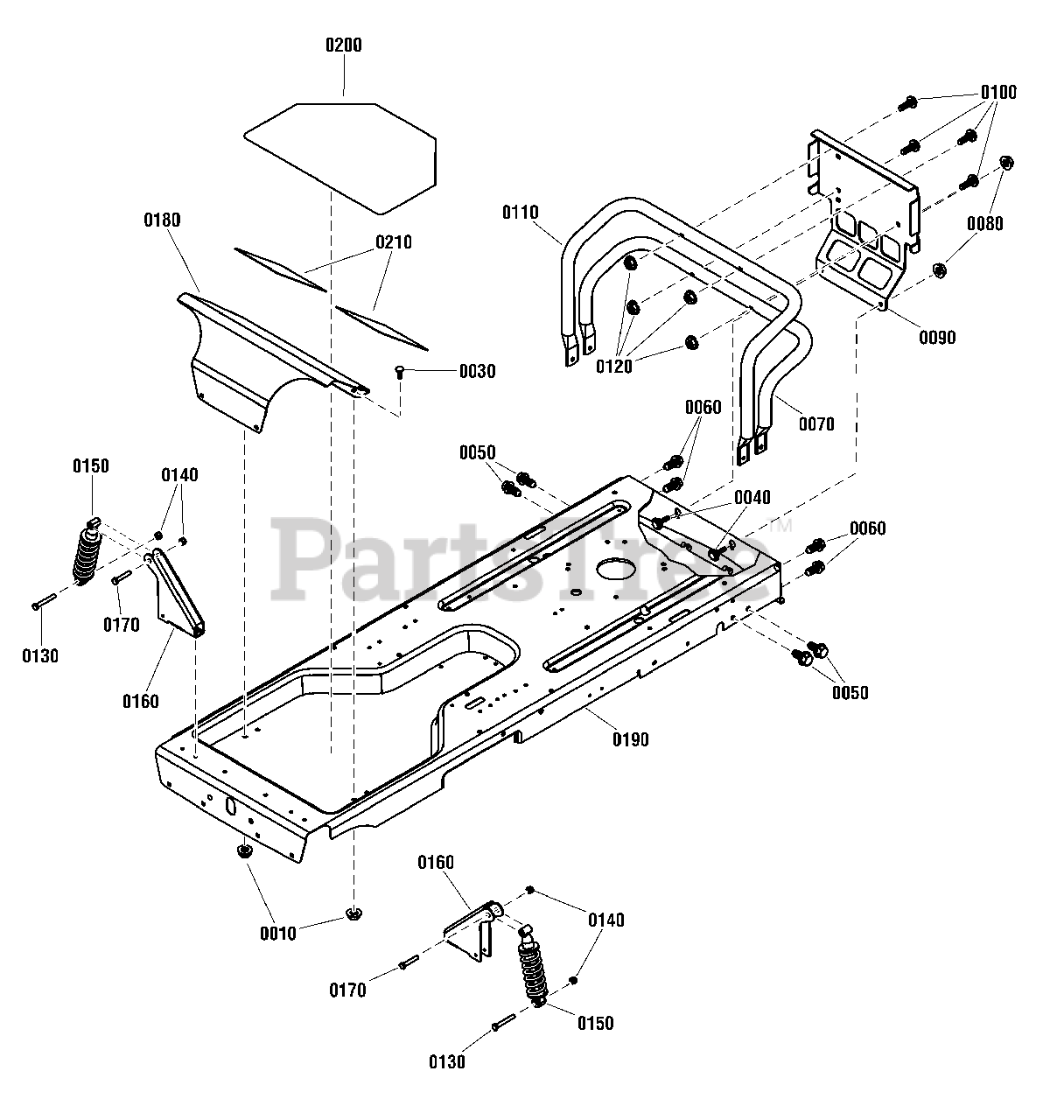

ZT 2752 (2691040-01) - Simplicity 52" Zero-Turn Mower, 27hp Briggs & Stratton Frame & Footrest Group Parts Diagram

52" Zero-Turn Mower, 27hp Briggs & Stratton

Frame & Footrest Group Parts Diagram

  • Title
0010

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0030

Simplicity 703125

BOLT, 5/16-18 x 5/8 Carriage, Grade 5, Zinc/Clear

$3.99

$

In Stock, only 2 left!

0

0040

Simplicity 1716654SM

BOLT, 5/16-18 X 0.75, .50 Shoulder, G5 YZ

$5.49

$

In Stock, only 3 left!

0

0050

Simplicity 1960541SM

SCREW, 5/16-18X0.750, Washer Head Taptite, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0060

Simplicity 1960541SM

SCREW, 5/16-18X0.750, Washer Head Taptite, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0070

Simplicity 1753517BMYP

BUMPER, Lower Tube, Single - E-Coat

$92.99

$

In Stock, only 1 left!

0

0080

Simplicity 703330

NUT, 5/16-18, Hex Flange Whiz-Lock, Zinc/Clear

$4.99

$

In Stock, Qty 14

0

0090

Simplicity 1753572CYP

PLATE, Brand - Simplicity Orange

$96.99

$

Usually ships in 2-12 days

0

0100

Simplicity 703175

BOLT, 5/16-18 x 1-3/4 Round Head Short Square Neck, GR 5, Zinc/Clear

$3.99

$

In Stock, only 2 left!

0

0110

Simplicity 7301123BMYP

TUBE, Bumper, Upper

$142.99

$

Usually ships in 2-12 days

0

0120

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0130

Simplicity 7076938SM

SCREW, 5/16-18 x 2-1/4 Hex Head Cap, GR 5
(Superseded to 703177)

$3.49

$

Usually ships in 2-12 days

0

0140

Simplicity 7091298YP

NUT, 5/16-18 3B Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

$52.99

$

In Stock, only 1 left!

0

0160

Simplicity 7300079CYP

BRACKET, Shock

$119.99

$

In Stock, only 1 left!

0

0170

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5, Zinc/Clear
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0180

Simplicity 7300141CYP

FOOTREST, Simplicity

$77.99

$

Usually ships in 2-12 days

0

0190

$826.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7103830YP

MAT, Floor Pan, RZT

$33.99

$

Usually ships in 2-12 days

0

0210

Simplicity 7104571YP

PAD, Foot, Wide

$17.99

$

In Stock, Qty 5

0
