ZT 2752 (2691040-01) - Simplicity 52" Zero-Turn Mower, 27hp Briggs & Stratton Engine Group - 24 & 27 Gross HP B&S Twin Parts Diagram

52" Zero-Turn Mower, 27hp Briggs & Stratton

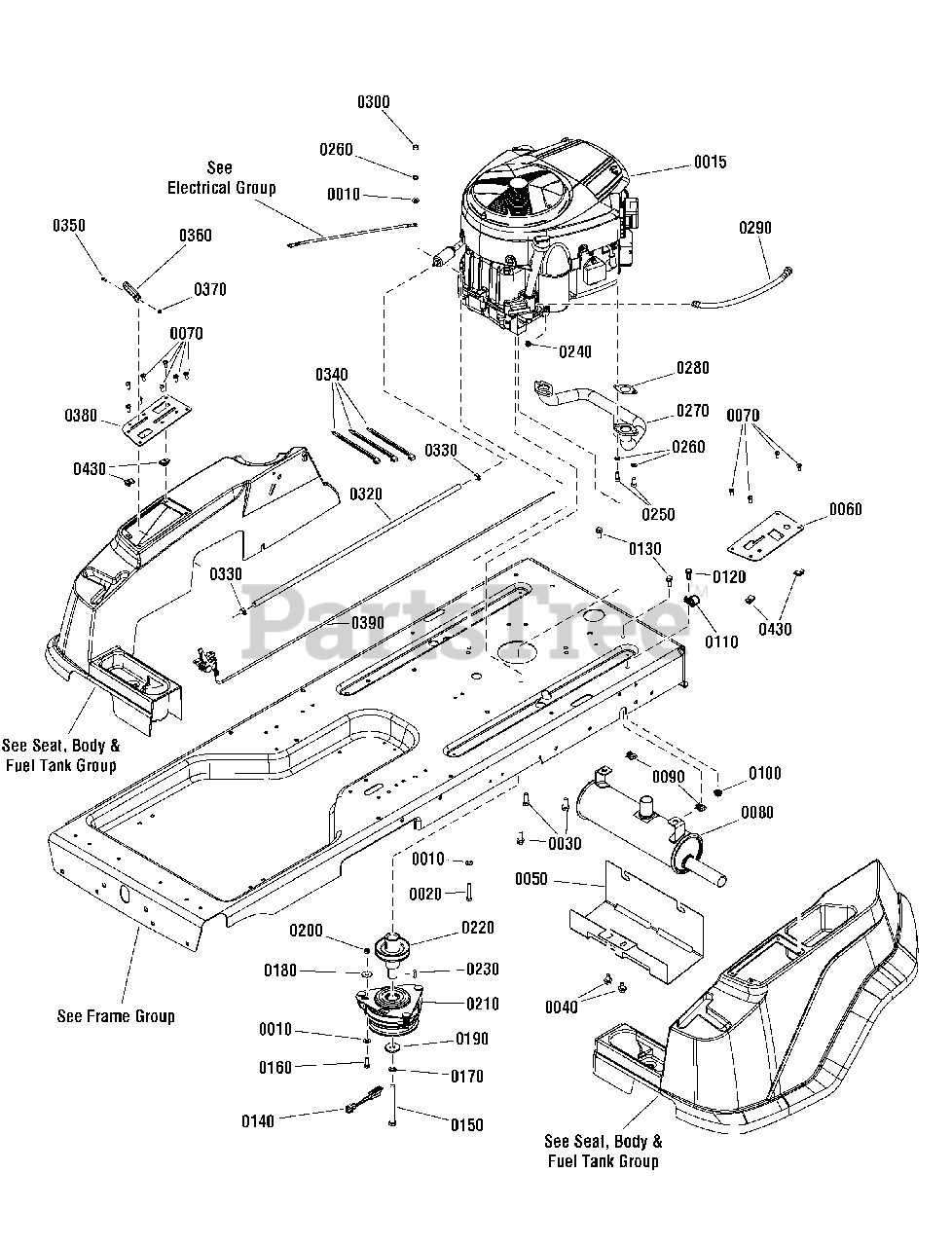

Engine Group - 24 & 27 Gross HP B&S Twin Parts Diagram

  • Title

0010

Simplicity 703350

WASHER, 5/16, SAE Flat, Zinc/Clear

$4.49

$

In Stock, only 3 left!

0

0015

Simplicity 44M777-0111-G5

* ENGINE, 24 Gross HP B&S Twin Cyl. W/ EFM, Model 44M777-0111-G5

$

$

Not available

0015

Simplicity 44Q777-5141-G5

* ENGINE, 27 Gross HP B&S Twin Cyl. W/ EFM, Model 44Q777-5141-G5

$

$

Not available

0020

Simplicity 1922127SM

SCREW, 5/16-18 X 1.750, Hex Head Cap, GR5, Zinc/Clear
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0030

Simplicity 7090324SM

SCREW, 3/8C X1, Hex Washer Head Self Tap, BZ
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7091198SM

SCREW, 3/8C X 5/8, Hex Washer Head Self Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0050

Simplicity 7301083BMYP

SHIELD, Muffler Heat

$46.99

$

Usually ships in 2-12 days

0

0060

Simplicity 7301084BMYP

PANEL, Control, LH

$21.99

$

Usually ships in 2-12 days

0

0070

Simplicity 7090999SM

SCREW, 1/4-20 X 5/8, Pan Head Self Tap Torx, BP
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0080

Simplicity 7103411YP

MUFFLER, RZT

$231.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1935255SM

NUT, 5/16-18, Speed Lug Type .025/.150 B

$3.49

$

In Stock, only 3 left!

0

0100

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0110

Simplicity 7900020SM

CLIP, Harness, 5/8

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1921332SM

SCREW, 5/16-18 X 0.750, Hex Head Cap, GR5, Zinc/Clear
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0130

Simplicity 703354

SCREW, 5/16-18 X .750, GR5, Whiz-Lock, ZC

$5.49

$

In Stock, Qty 14

0

0140

Simplicity 1737462YP

HARNESS, Jumper, 4" LG

$9.99

$

In Stock, only 1 left!

0

0150

Simplicity 7092130SM

SCREW, 7/16-20 X 4-1/2, Hex Head Cap, GR5 YZ

$

$

Not available

0160

Simplicity 703408

SCREW, 5/16-18 X 0.875, Hex Head Cap, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 14

0

0170

Simplicity 703439

WASHER, 7/16, Split Lock, Zinc/Clear

$

$

Not available

0180

Simplicity 7011763SM

WASHER, 5/16, Fender

$4.49

$

In Stock, only 3 left!

0

0190

Simplicity 703438

WASHER, 0.468 ID X 1.50 OD X 0.19 Thick,Special, Zc/Cl

$

$

Not available

0200

Simplicity 703164

NUT, 5/16-18, Hex Center Lock, GRB, Zinc/Clear

$3.49

$

In Stock, Qty 19

0

0210

Simplicity 1717664SM

CLUTCH, Electric, Ogura JD-11, #504586
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

0220

Simplicity 7043343SM

PULLEY, Engine, 3.5" OD, 1" ID, 4.92" Tall

$114.99

$

In Stock, only 1 left!

0

0230

Simplicity 7016755YP

KEY, 1/4 X .75, Square

$4.99

$

Usually ships in 2-12 days

0

0240

Simplicity 703233

NUT, 1/4-20, Serrated Flange, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0250

Simplicity 7091738SM

SCREW, 5/16-18 X 3/4, Allen Socket Head, GR8 BZ

$4.99

$

In Stock, Qty 14

0

0260

Simplicity 7091315SM

WASHER, .32 X .58 X .08, Split Lock, YZ
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0270

Simplicity 7103414YP

MANIFOLD, B&S V-Twin

$96.99

$

In Stock, only 1 left!

0

0280

Simplicity 1731214SM

GASKET, Exhaust, B&S

$4.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1726498SM

HOSE, Oil Drain, .375 ID X 16.5 Long

$26.99

$

Usually ships in 2-12 days

0

0300

Simplicity 7091511SM

NUT, 5/16-18, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0320

Simplicity 7200140YP

HOSE, Fuel, Low Perm, 1/4" ID X 32"

$14.99

$

In Stock, only 1 left!

0

0330

Simplicity 7012222SM

CLAMP, Fuel Hose, .490 X .31
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0340

Simplicity 7012080SM

TIE, Cable, 7.0"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0350

Simplicity 7091017YP

SCREW, Filister Head, #8C X 3/8 GR2 BZ

$3.99

$

In Stock, only 4 left!

0

0360

Simplicity 7103888YP

KNOB, Throttle Red

$8.49

$

Usually ships in 2-12 days

0

0370

Simplicity 703437

NUT, #8-32, Hex, Zinc/Clear

$

$

Not available

0380

Simplicity 7301093BMYP

PANEL, Control, RH

$20.99

$

Usually ships in 2-12 days

0

0390

Simplicity 7104211YP

Control, Throttle, B&S V-Twin 44", 1.15" Throw

$45.99

$

Usually ships in 2-12 days

0

0430

Simplicity 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0
