ZT 27460 (7800768-01) - Simplicity 46" Zero-Turn Mower, 27hp Briggs & Stratton Front Axle Group, ZT2000, 7800768 (7501933C) Parts Diagram

46" Zero-Turn Mower, 27hp Briggs & Stratton

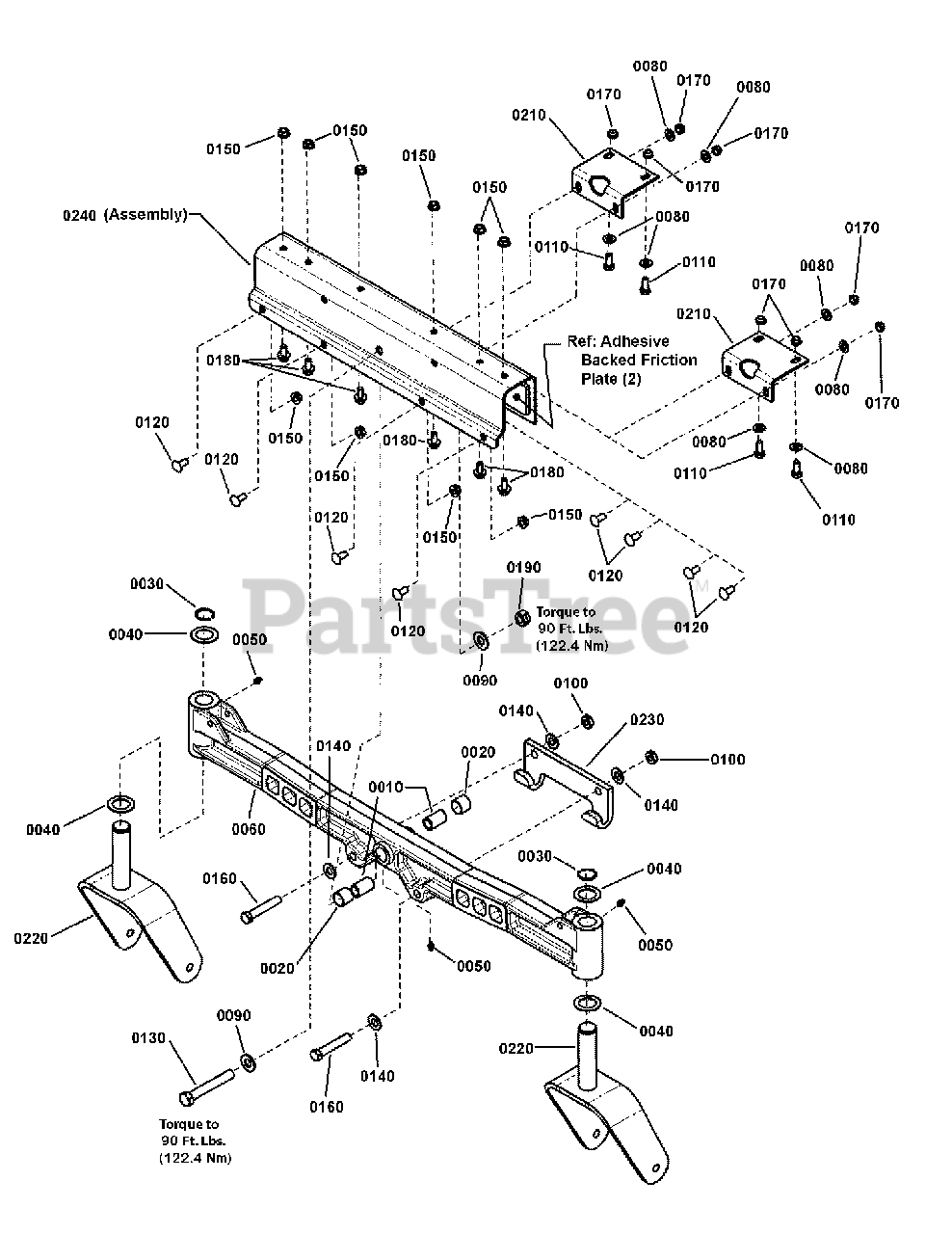

Front Axle Group, ZT2000, 7800768 (7501933C) Parts Diagram

  • Title

0010

Simplicity 7011309

SPACER, Axle Pivot
(Superseded to 7011309SM)

$7.49

$

Usually ships in 2-12 days

0

0020

Simplicity 7012706

BEARING, Sleeve
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

0030

Simplicity 7012709

RETAINING RING, 1" External
(Superseded to 703993)

$3.49

$

In Stock, Qty 11

0

0040

Simplicity 7013855

THRUST WASHER
(Superseded to 7013855SM)

$7.49

$

In Stock, Qty 6

0

0050

Simplicity 7013864

LUBE FITTING, 3/16" Press Fit
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

0060

Simplicity 7078124CYP

FRONT AXLE, Cast, Orange
(Superseded to 7078124DYP)

$296.99

$

Usually ships in 2-12 days

0

0080

Simplicity 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

0090

Simplicity 7091587

WASHER, 1/2" Flat (SAE)
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

0100

Simplicity 7090377

NUT, 7/16-20 Hex Center lock Jam
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

0110

Simplicity 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

0120

Simplicity 7091508

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5, YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0130

Simplicity 7091558

SCREW, 1/2-13 x 3-1/2" Hex Head Cap, YZ
(Superseded to 7091558SM)

$4.99

$

In Stock, only 1 left!

0

0140

Simplicity 7091595

WASHER, 7/16" Flat, YZ
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

0150

Simplicity 7091601

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0160

Simplicity 7091703

SCREW, 7/16-20 x 2-1/2", Hex Head Cap Screw, GR 5, YZ
(Superseded to 7091703SM)

$7.99

$

Usually ships in 2-12 days

0

0170

Simplicity 7091706

NUT, 5/16-18 Hex Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

Usually ships in 2-12 days

0

0180

Simplicity 7091811

BOLT, 5/16-18 x 5/8" Hex Flange lock, GR 5, YZ
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

0190

Simplicity 7091894

NUT, 1/2-13 Hex Center Lock, GR 5, YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

0210

Simplicity 7300004BM

BRACKET, Axle Support
(Superseded to 7300004BMYP)

$21.99

$

In Stock, only 1 left!

0

0220

Simplicity 7400191D

WELDMENT, Caster Yoke & Spindle
(Superseded to 7400191DYP)

$107.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1721918D

HOOK, Mower, Hitch
(Superseded to 1721918ASM)

$31.99

$

In Stock, Qty 9

0

0240

Simplicity 7502054C

ASSEMBLY, Axle Bracket (incl. next two items)

$

$

Not available

--

Simplicity 7103773

PLATE, Friction, Adhesive
(Superseded to 7103773YP)

$13.99

$

Usually ships in 2-12 days

0

--

Simplicity 7078126CYP

BRACKET, Axle

$165.99

$

Usually ships in 2-12 days

0
