ZT 27460 (7800768-01) - Simplicity 46" Zero-Turn Mower, 27hp Briggs & Stratton 46" Deck Housing Assembly (7502228C) Parts Diagram

46" Zero-Turn Mower, 27hp Briggs & Stratton

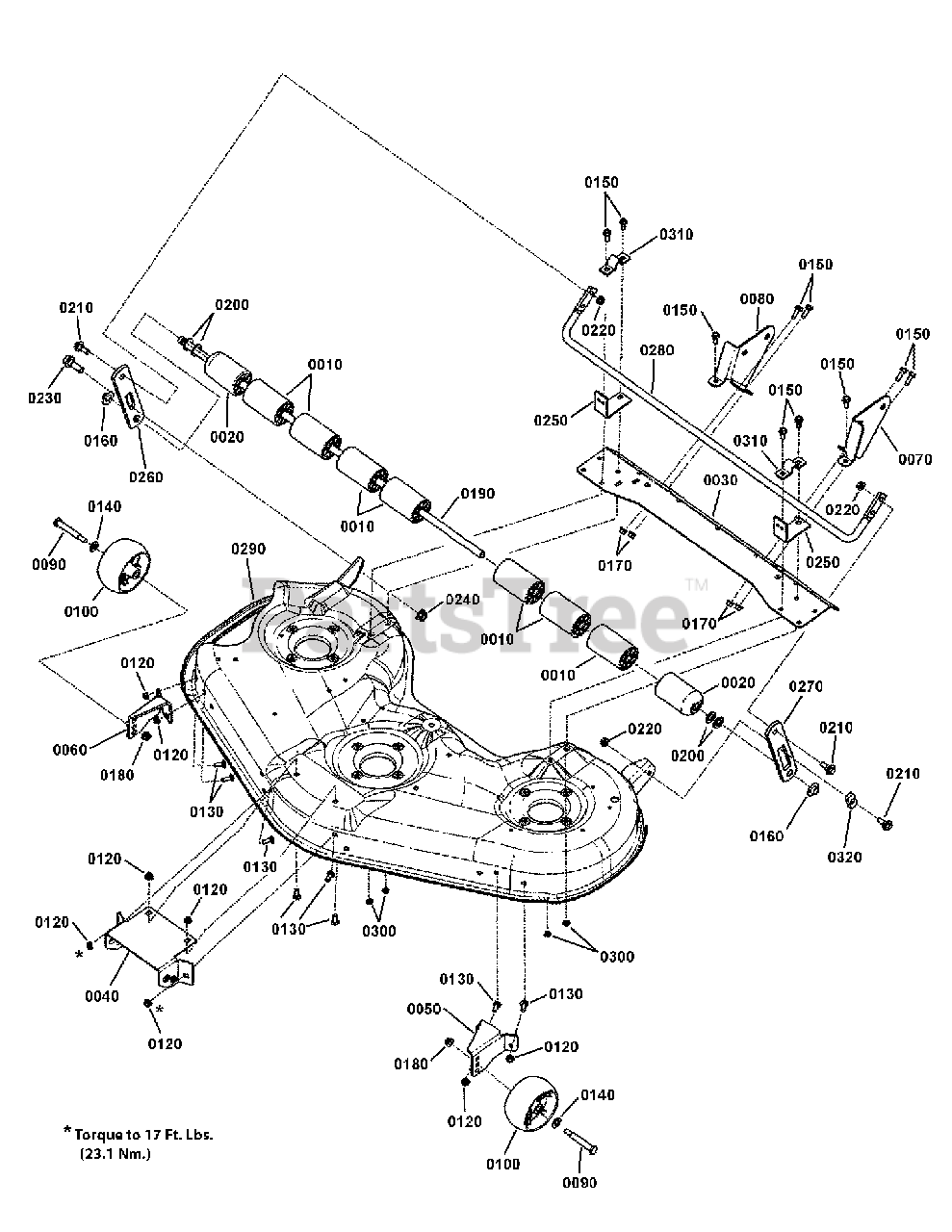

46" Deck Housing Assembly (7502228C) Parts Diagram

  • Title

0010

Simplicity 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

0020

Simplicity 1722036

ROLLER
(Superseded to 1722036SM)

$7.99

$

In Stock, Qty 20+

0

0030

Simplicity 1736070BM

SUPPORT, Rear Cross
(Superseded to 1736070BMYP)

$82.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1736071BM

HITCH, Front, 46/52 Mower
(Superseded to 1736071BMYP)

$29.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1736074BZ

BRACKET, Gauge Wheel, RH
(Superseded to 1736074BMYP)

$15.99

$

In Stock, only 1 left!

0

0060

Simplicity 1736075BZ

BRACKET, Gauge Wheel, LH
(Superseded to 1736075BMYP)

$14.99

$

In Stock, Qty 14

0

0070

Simplicity 1736397BM

BRACKET, LH Rear 46/52" ZTR- Black
(Superseded to 1736397BMYP)

$19.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1736398BM

BRACKET, RH Rear 46/52" ZTR- Black
(Superseded to 1736398BMYP)

$19.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1736539

SHOULDER BOLT, 3/8-16 x 3.41" .750 Thread Yellow
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1736896

GAUGE WHEEL, Black Poly 5" Dia.
(Superseded to 1736896YP)

$16.99

$

In Stock, only 4 left!

0

0120

Simplicity 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0130

Simplicity 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

0140

Simplicity 1960170

WASHER, 1/2" Flat (0.51 ID x 1.00 OD x .10 Thick) Black
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0150

Simplicity 1960373

SCREW, 5/16-18 x 1" Hex Washer Head Self-Tap, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0160

Simplicity 1960520

PUSH NUT, .625 Shaft, Black
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

0170

Simplicity 1960686

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Simplicity 1960687

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0190

Simplicity 7104708

BAR, Roller, 46"

$

$

Not available

0200

Simplicity 1924366

WASHER, 5/8" Flat
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0210

Simplicity 720097

BOLT, 3/8-16 Shoulder, GR 2
(Superseded to 009X51MA)

$4.99

$

In Stock, only 2 left!

0

0220

Simplicity 720142

NUT, 3/8-16 Hex Flange Center Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0230

Simplicity 7092017

BOLT, 1/2-20 Shoulder, GR 5
(Superseded to 7092017YP)

$7.99

$

In Stock, only 2 left!

0

0240

Simplicity 722389

NUT, 1/2-20 Hex Flange Lock, GR F
(Superseded to 15X112MA)

$5.49

$

In Stock, only 2 left!

0

0250

Simplicity 7301179BZ

BRACKET, Cover, Deck, Roller

$

$

Not available

0260

Simplicity 7301180BM

BAR, Roller, RH

$

$

Not available

0270

Simplicity 7301181BM

BAR, Roller, LH

$

$

Not available

0280

Simplicity 7104686BM

SHAFT, Rocker

$

$

Not available

0290

Simplicity 7400307C

WELDMENT, Housing, Roller, 46"

$

$

Not available

0300

Simplicity 1928698

NUT, 5/16-18 Hex Jam
(Superseded to 1928698SM)

$4.49

$

Usually ships in 2-12 days

0

0310

Simplicity 1736156A

STRAP, Rocker Shaft
(Superseded to 1736156AYP)

$8.49

$

Usually ships in 2-12 days

0

0320

Simplicity 1677507

SLIDE, Roller Bar
(Superseded to 1677507SM)

$6.99

$

In Stock, only 3 left!

0
