ZT 27460 (7800579) - Simplicity 46" Zero-Turn Mower, 27hp Briggs & Stratton Seat Group - Sliding (7501578) Parts Diagram

46" Zero-Turn Mower, 27hp Briggs & Stratton

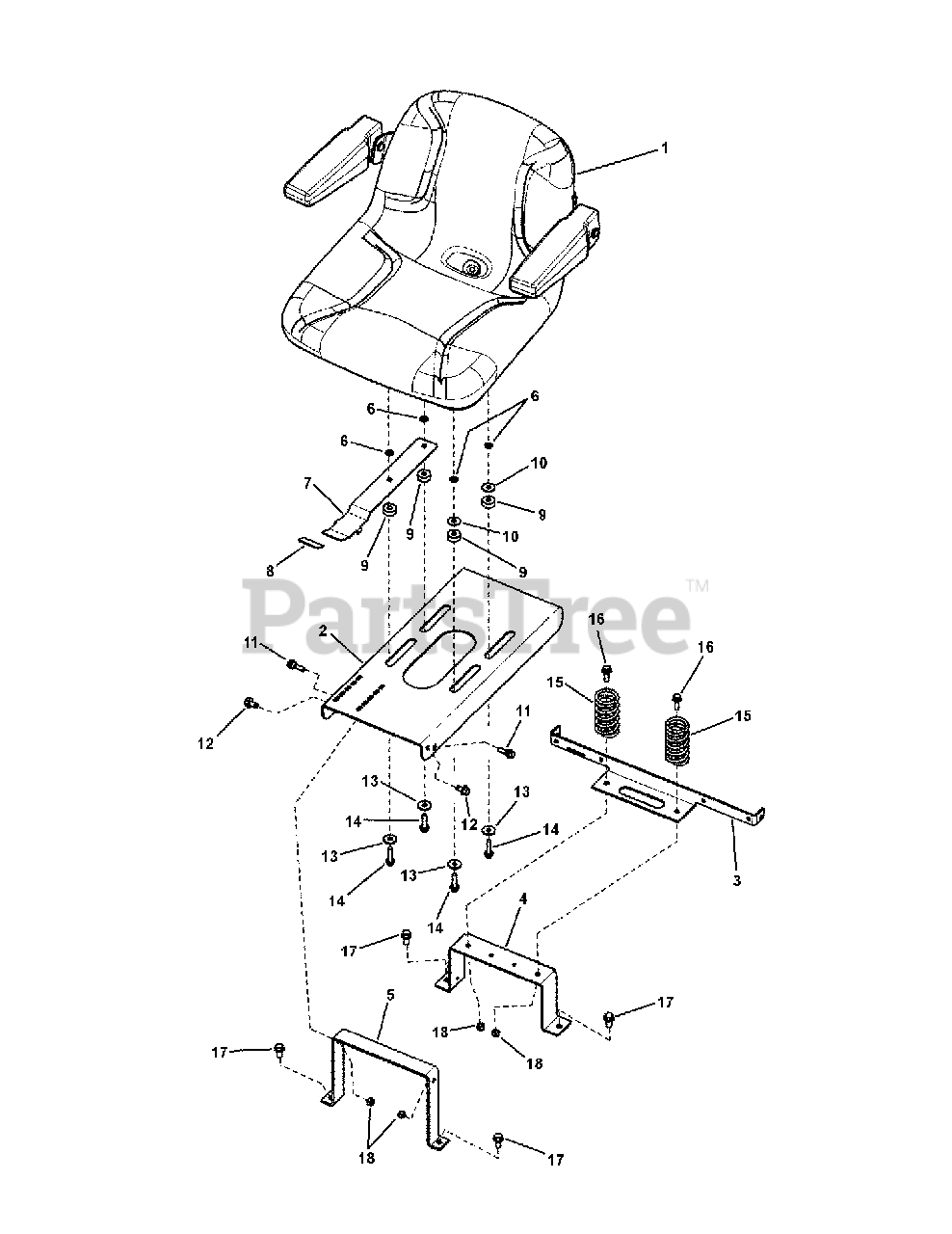

Seat Group - Sliding (7501578) Parts Diagram

  • Title
1

Simplicity 7100005

SEAT, 15" Back w/Armrests
(Superseded to 1754218YP)

$552.99

$

Usually ships in 2-12 days

0

2

Simplicity 7301095BM

PLATE, Seat, Adjustable
(Superseded to 7301095BMYP)

$53.99

$

Usually ships in 2-12 days

0

3

Simplicity 7301107BM

BRACKET, Support, Seat & Fender
(Superseded to 7301107BMYP)

$26.99

$

Usually ships in 2-12 days

0

4

Simplicity 7043316BM

BRACKET, Seat Support
(Superseded to 7043316BMYP)

$19.99

$

Usually ships in 2-12 days

0

5

Simplicity 7301070BM

BRACKET, Seat
(Superseded to 7301070BMYP)

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 7011791

RETAINER, 5/16" Bolt, Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 7103673BM

LATCH, Seat
(Superseded to 7103673BMYP)

$18.99

$

Usually ships in 2-12 days

0

8

Simplicity 885215

COVER, Seat Adjustment Lever
(Superseded to 885215YP)

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 7103920

SPACER, Seat, Adjustable
(Superseded to 7103920YP)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 7011763

FENDER WASHER, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 7011078

SHOULDER BOLT, 5/16-18 x 1"
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

12

Simplicity 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1919381

WASHER, 5/16" Flat (.341 ID x 1.00 OD x .13 Thick) Black
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0

14

Simplicity 1930595

SCREW, 5/16-18 x 1-1/4" Hex Head Flange Lock
(Superseded to 1930595SM)

$3.99

$

In Stock, Qty 5

0

15

Simplicity 7103425

SPRING, 3.62 " Compression
(Superseded to 7103425YP)

$17.99

$

Usually ships in 2-12 days

0

16

Simplicity 7091591

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

17

Simplicity 7090815

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

18

Simplicity 7091298

NUT, 5/16-18- Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0
