ZT 27460 (7800579) - Simplicity 46" Zero-Turn Mower, 27hp Briggs & Stratton Frame Assembly - ZT2000 Parts Diagram

46" Zero-Turn Mower, 27hp Briggs & Stratton

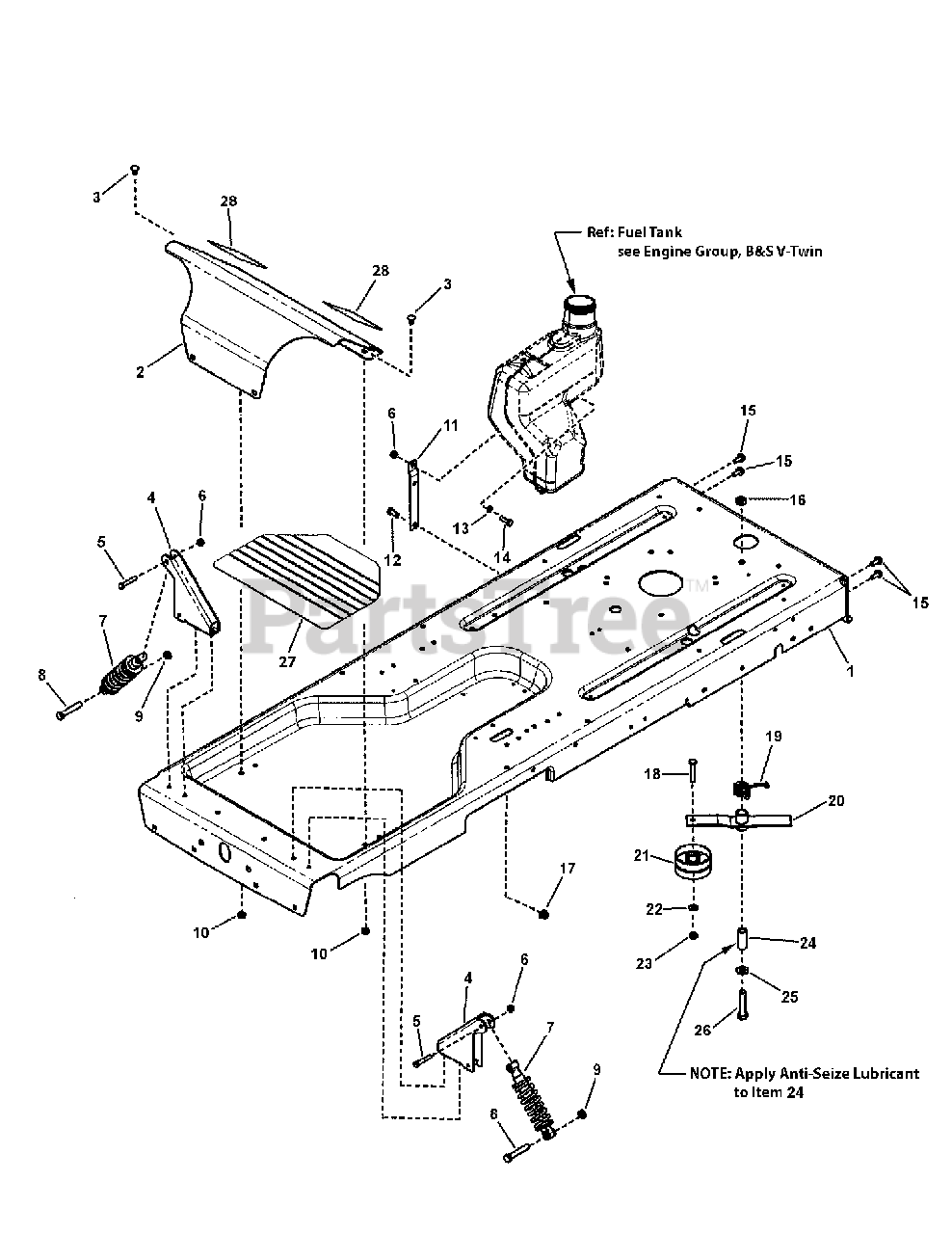

Frame Assembly - ZT2000 Parts Diagram

  • Title

1

Simplicity 7301073C

FRAME, RZT
(Superseded to 7301073CYP)

$826.99

$

Usually ships in 2-12 days

0

2

Simplicity 7300141C

FOOTREST, Simplicity
(Superseded to 7300141CYP)

$77.99

$

Usually ships in 2-12 days

0

3

Simplicity 7090799

BOLT, 5/16-18 x 5/8" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 7300079C

BRACKET, Shock
(Superseded to 7300079CYP)

$119.99

$

In Stock, only 1 left!

0

5

Simplicity 1922127

SCREW, 5/16-18 X 1-3/4"Hex Head Cap, GR 5 Yellow Zinc
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 7091298

NUT, 5/16-18- Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 5023213

SHOCK
(Superseded to 5023213SM)

$52.99

$

In Stock, only 1 left!

0

8

Simplicity 7091703

SCREW, 7/16-20 x 2-1/2", Hex Head Cap Screw, GR 5, YZ
(Superseded to 7091703SM)

$7.99

$

Usually ships in 2-12 days

0

9

Simplicity 7090377

NUT, 7/16-20 Hex Center lock Jam
(Superseded to 7090377SM)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 7091070

NUT, 5/16-18, Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 7301110BM

BRACKET, Support, Fuel Tank
(Superseded to 7301110BMYP)

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 7090134

SCREW, 3/8-16 x 3/4" Hex Head Cap, GR 5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 720163

WASHER, .34 x .62 x 16 Ga, Flat
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap, YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 7091894

NUT, 1/2-13 Hex Center Lock, GR 5, YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

17

Simplicity 1931211

NUT, 3/8-16 Hex Flange lock, GR F, BZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5, YZ
(Superseded to 7091305SM)

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 7044760

SPRING, Torsion, RH Wind

$33.99

$

In Stock, only 2 left!

0

20

Simplicity 7400208BM

WELDMENT, Hydro Idler MY08
(Superseded to 7400208BMYP)

$45.99

$

In Stock, only 1 left!

0

21

Simplicity 7100103

IDLER, 3.25" OD x .391 ID x 1.63, Backside
(Superseded to 7100103SM)

$43.99

$

In Stock, Qty 8

0

22

Simplicity 7090122

WASHER, 3/8" Flat (SAE)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

23

Simplicity 7091585

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

24

Simplicity 7200034

SPACER, Hydro Idler
(Superseded to 7200034SM)

$

$

Not available

25

Simplicity 7091587

WASHER, .531 x 1.062 x .121, Flat, YZ (SAE)
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 7091218

SCREW, 1/2-13 x 2-1/2", Hex Head Cap, GR 5 (Black Phosphate)
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

27

Simplicity 7100287

MAT, Floor Pan
(Superseded to 7100287SM)

$36.99

$

Usually ships in 2-12 days

0

28

Simplicity 5101564

SAFETY, Walk, 7.25 x 5.25
(Superseded to 5101564YP)

$11.99

$

Usually ships in 2-12 days

0
