ZT 27460 (7800579) - Simplicity 46" Zero-Turn Mower, 27hp Briggs & Stratton 46" Deck Housing Assembly Parts Diagram

46" Zero-Turn Mower, 27hp Briggs & Stratton

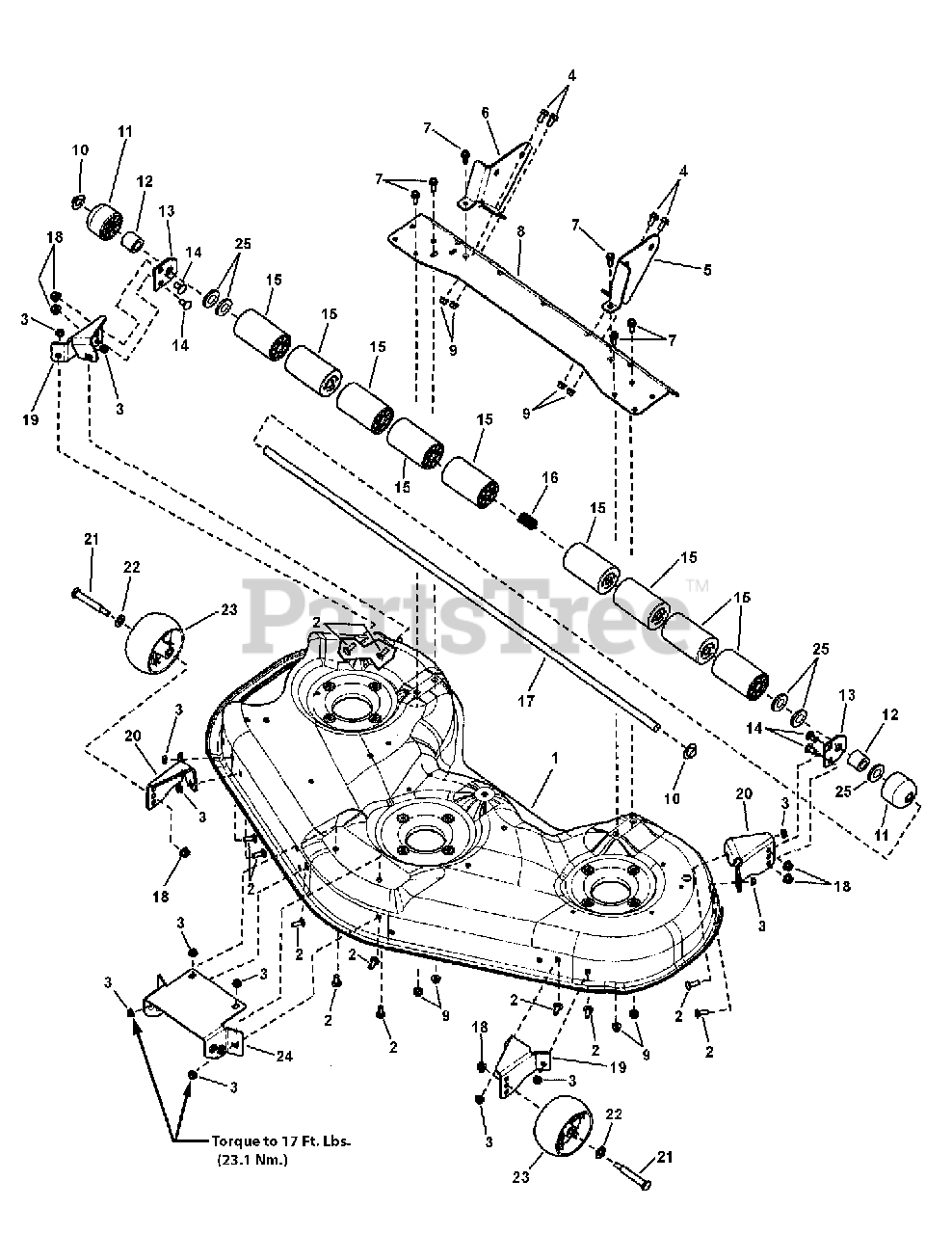

46" Deck Housing Assembly Parts Diagram

  • Title

1

Simplicity 1738863C

HOUSING, 46" Mower

$

$

Not available

2

Simplicity 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

3

Simplicity 1931277

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

4

Simplicity 1930591

SCREW, 5/16-18 x 3/4" Hex Flange Lock, Black
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

5

Simplicity 1736397BM

BRACKET, LH Rear 46/52" ZTR- Black
(Superseded to 1736397BMYP)

$19.99

$

Usually ships in 2-12 days

0

6

Simplicity 1736398BM

BRACKET, RH Rear 46/52" ZTR- Black
(Superseded to 1736398BMYP)

$19.99

$

Usually ships in 2-12 days

0

7

Simplicity 1960373

SCREW, 5/16-18 x 1" Hex Washer Head Self-Tap, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1736070BM

SUPPORT, Rear Cross
(Superseded to 1736070BMYP)

$82.99

$

Usually ships in 2-12 days

0

9

Simplicity 1960686

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1960520

PUSH NUT, .625 Shaft, Black
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1717675

ROLLER, 2" Rounded
(Superseded to 1717675SM)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 1602949

SPACER, Roller

$

$

Not available

13

Simplicity 7301147BM

BRACKET, Bar, Roller
(Superseded to 7301147BMYP)

$46.99

$

Usually ships in 2-12 days

0

14

Simplicity 7091923

BOLT, 3/8-16 x 3/4" Round Head Square Neck Carriage, YZ
(Superseded to 7091923SM)

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

16

Simplicity 7092007

SPRING, Compression .095 Wire Dia. x .675 ID x 1.52 Fl
(Superseded to 7092007YP)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 7200139

SHAFT, Roller, 46"
(Superseded to 7200139YP)

$46.99

$

Usually ships in 2-12 days

0

18

Simplicity 1960687

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 1736074BM

BRACKET, Gauge Wheel, RH
(Superseded to 1736074BMYP)

$15.99

$

In Stock, only 1 left!

0

20

Simplicity 1736075BM

BRACKET, Gauge Wheel, LH
(Superseded to 1736075BMYP)

$14.99

$

In Stock, Qty 14

0

21

Simplicity 1736539

SHOULDER BOLT, 3/8-16 x 3.41" .750 Thread Yellow
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960170

WASHER, 1/2" Flat (0.51 ID x 1.00 OD x .10 Thick) Black
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

23

Simplicity 1736896

GAUGE WHEEL, Black Poly 5" Dia.
(Superseded to 1736896YP)

$16.99

$

In Stock, only 4 left!

0

24

Simplicity 1736071BM

HITCH, Front, 46/52 Mower
(Superseded to 1736071BMYP)

$29.99

$

Usually ships in 2-12 days

0

25

Simplicity 1924366

WASHER, 5/8" Flat
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0
