ZT 26520 (7800766-01) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton Electrical Group (7501704_7501960) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

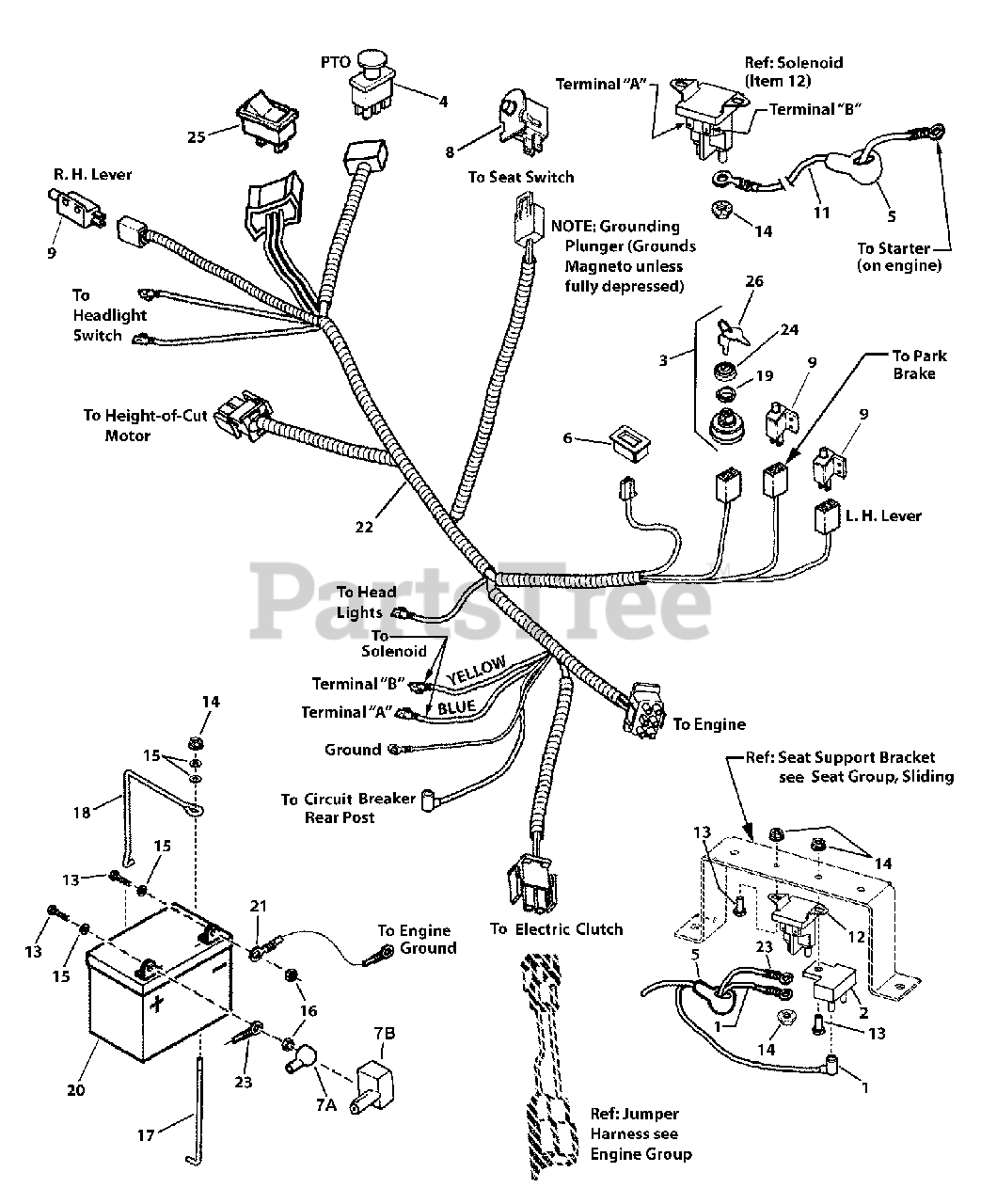

Electrical Group (7501704_7501960) Parts Diagram

  • Title

1

Simplicity 1665237

WIRE, 12 Gage, 8", Red
(Superseded to 1665237SM)

$11.99

$

In Stock, Qty 7

0

2

Simplicity 1665238

BREAKER, Circuit 12 Volt 20 AMP w/Tab
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 20+

0

3

Simplicity 1737853

SWITCH ASSEMBLY, Ignition, Indak No Keys/Hdwr
(Superseded to 1737853YP)

$35.99

$

In Stock, Qty 20+

0

4

Simplicity 1722887

SWITCH, PTO, Push/Pull Symbols
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

5

Simplicity 1724588

COVER, Terminal, Red Vinyl
(Superseded to 1724588SM)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1731185

HOUR METER
(Superseded to 1731185SM)

Note: (Not used on some models)

$60.99

$

In Stock, only 2 left!

0

7A

Simplicity 1677296

BOOT, Insulator, Battery Terminal, PVC, Red
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

7B

Simplicity 7012444

COVER, Battery Cover
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

8

Simplicity 7023354

SWITCH, Push Button (NC) (gray)
(Superseded to 7023354YP)

Note: (seat switch)

$12.99

$

In Stock, Qty 20+

0

9

Simplicity 7023355

SWITCH, DPDT (NC/NO) (Gray)
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

11

Simplicity 7042956

CABLE, Starter, 8 Gage, 14, Black
(Superseded to 7028027YP)

$10.99

$

In Stock, Qty 7

0

12

Simplicity 7075622

SOLENOID, Super Trombetta - 2 Terminal
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 20+

0

13

Simplicity 80002437

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5
(Superseded to 001X38MA)

Note: (Was 7090072)

$4.49

$

In Stock, Qty 18

0

14

Simplicity 80002727

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

Note: (Was 7091584)

$4.49

$

In Stock, Qty 6

0

15

Simplicity 80002742

WASHER, 1/4" Flat
(Superseded to 703332)

Note: (Was 7091294)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 7090372

NUT, 1/4-20 Hex Center Lock, GR B
(Superseded to 703954)

$

$

Not available

17

Simplicity 7100308

HOLD DOWN, Battery
(Superseded to 7100308SM)

$7.99

$

Usually ships in 2-12 days

0

18

Simplicity 7100309

BRACKET, Battery
(Superseded to 7100309SM)

$10.99

$

In Stock, only 1 left!

0

19

Simplicity 7100329

NUT, 5/8"-32 E-Start
(Superseded to 703995)

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 7060618

BATTERY, 12 Volt, 230 CCA
(Superseded to 1685215SM)

$

$

Not available

21

Simplicity 7100636

CABLE, Battery, Negative, 8 Gage, 20" Black
(Superseded to 7100636SM)

$8.99

$

Usually ships in 2-12 days

0

22

Simplicity 7103412

HARNESS, Wiring
(Superseded to 7103412YP)

$103.99

$

In Stock, only 1 left!

0

23

Simplicity 720348

CABLE, Battery, Positive, 8 Gage, Red
(Superseded to 024X31MA)

$7.49

$

In Stock, only 1 left!

0

24

Simplicity 727338

CAP, Ignition Switch
(Superseded to 091488MA)

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1734141

SWITCH, Rocker Electric Height-Of-Cut
(Superseded to 1734141SM)

Note: (Not used on some models)

$47.99

$

In Stock, Qty 20+

0

26

Simplicity 1737836

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/Spanish (set of two, one coated)
(Superseded to 1737836YP)

Note: (or 7011138)

$20.99

$

In Stock, only 1 left!

0
