ZT 26520 (7800766-01) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton Bumper, Rear Assembly (7501811C) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

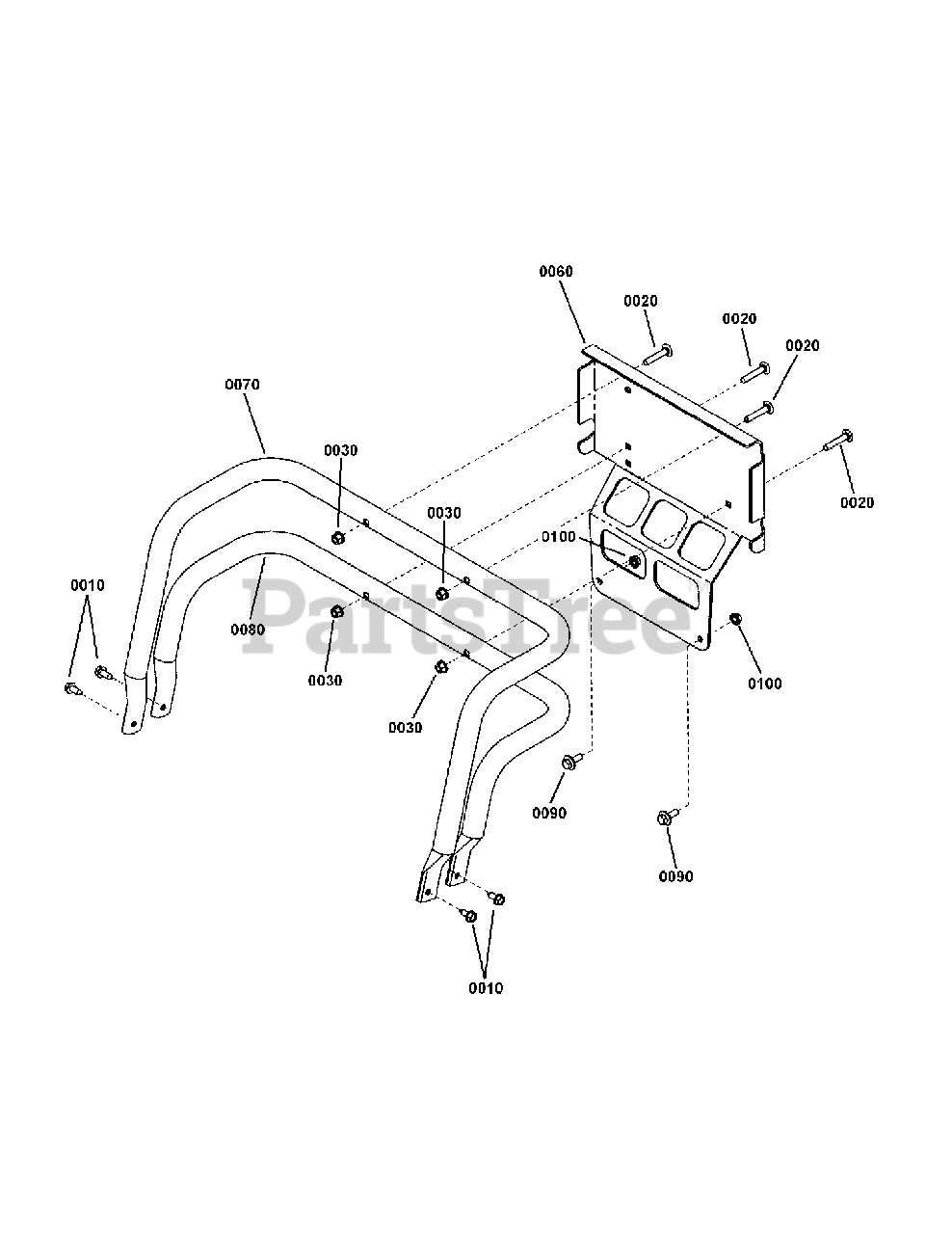

Bumper, Rear Assembly (7501811C) Parts Diagram

  • Title
0010

Simplicity 80002741

SCREW, 5/16-18 x 3/4" Hex Washer Head Self-Tap, Black
(Superseded to 703228)

Note: (Was 1664847SM)

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 80003731

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck
(Superseded to 703175)

Note: (Was 1931338)

$3.99

$

In Stock, only 2 left!

0

0030

Simplicity 80002732

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

Note: (Was 1960686)

$3.49

$

In Stock, Qty 20+

0

0060

Simplicity 1753572C

PLATE, Brand
(Superseded to 1753572CYP)

Note: (Was 7301121C)

$96.99

$

Usually ships in 2-12 days

0

0070

Simplicity 7301123BM

TUBE, Bumper, Upper, 285Z
(Superseded to 7301123BMYP)

$142.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1753517BM

TUBE, Bumper, Lower, 285Z
(Superseded to 1753517BMYP)

Note: (Was 7301124BM)

$92.99

$

In Stock, only 1 left!

0

0090

Simplicity 1716654

BOLT, Shoulder
(Superseded to 1716654SM)

$5.49

$

In Stock, only 3 left!

0

0100

Simplicity 80003641

NUT, 5/16-18 Hex Flange Lock, Large, Black
(Superseded to 703330)

Note: (Was 1927557)

$4.99

$

In Stock, Qty 14

0
