ZT 26520 (7800766-01) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton 52" Mower Deck - Idler Group (7501581) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

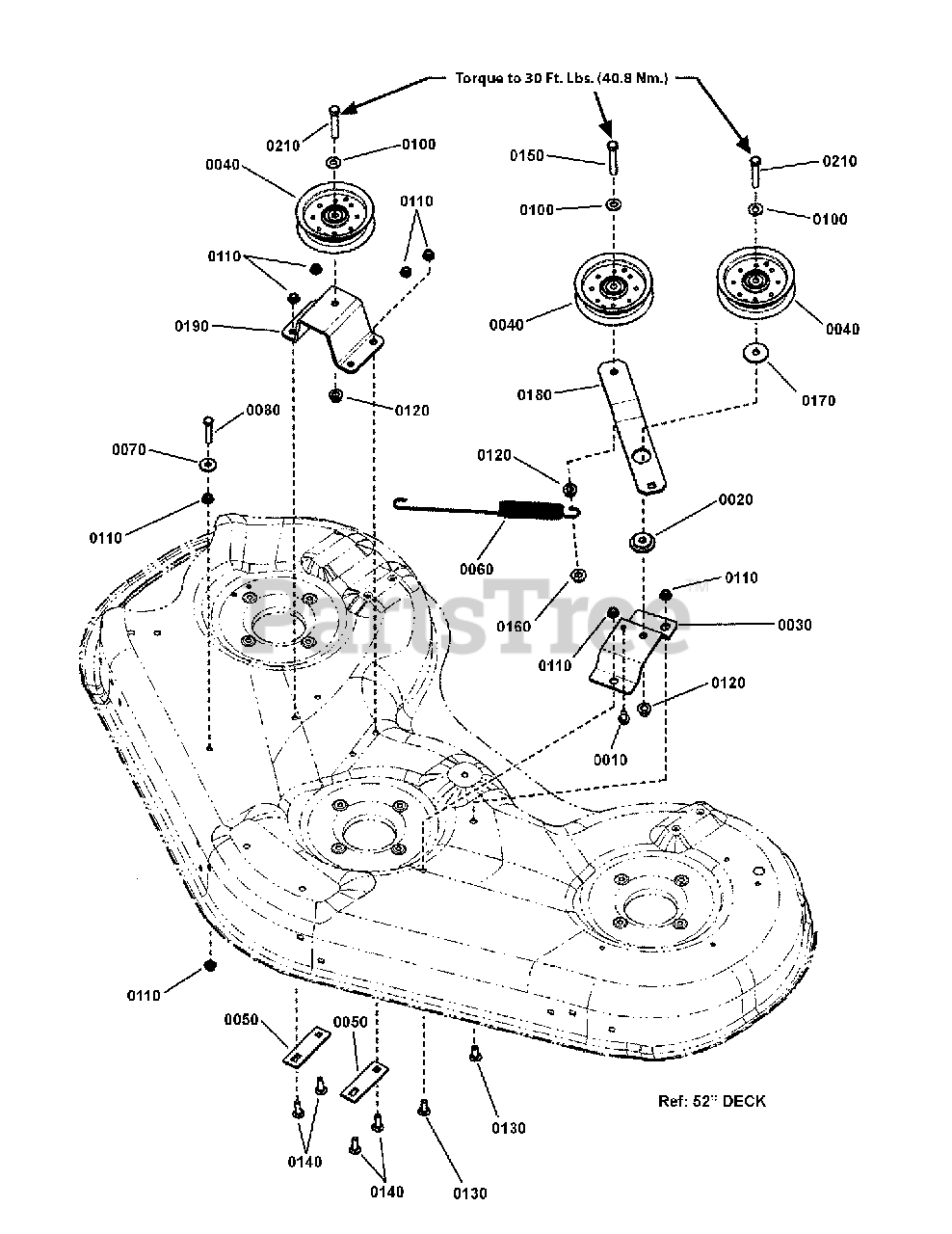

52" Mower Deck - Idler Group (7501581) Parts Diagram

  • Title

0010

Simplicity 80002741

SCREW, 5/16-18 x 3/4" Hex Washer Head Self-Tap, Black
(Superseded to 703228)

Note: (Was 1664847SM)

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 1714255

SPACER, .406 ID x 1.50 OD x .350 Thick, PM
(Superseded to 1714255SM)

$6.49

$

In Stock, Qty 17

0

0030

Simplicity 1736437BM

BRACKET, Idler Mount Front 46/52, Black
(Superseded to 1736437BMYP)

$21.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1736540

PULLEY, Idler 46/52, Mowers
(Superseded to 1736540YP)

$35.99

$

In Stock, only 3 left!

0

0050

Simplicity 1737229BM

PLATE, Idler Bracket 46/52 Mowers
(Superseded to 1737229BMYP)

$8.49

$

Usually ships in 2-12 days

0

0060

Simplicity 1737415

SPRING, Extension, PTO
(Superseded to 1737415YP)

$12.99

$

In Stock, only 1 left!

0

0070

Simplicity 80003525

WASHER, 5/16" Flat (.341 ID x 1.00 OD x .13 Thick) Black
(Superseded to 703298)

Note: (Was 1919381)

$4.49

$

In Stock, only 1 left!

0

0080

Simplicity 80002717

SCREW, 5/16-18 X 1-3/4"Hex Head Cap, GR 5 Yellow Zinc
(Superseded to 704288)

Note: (Was 1922127)

$4.99

$

Usually ships in 2-12 days

0

0100

Simplicity 80003621

WASHER, 3/8" Flat (.41 ID x .87 OD)
(Superseded to 703878)

Note: (Was 1924940)

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 80003641

NUT, 5/16-18 Hex Flange Lock, Large, Black
(Superseded to 703330)

Note: (Was 1927557)

$4.99

$

In Stock, Qty 14

0

0120

Simplicity 80002729

NUT, 3/8-16 Hex Flange lock, GR F, BZ
(Superseded to 703333)

Note: (Was 1931211)

$4.99

$

In Stock, Qty 20+

0

0130

Simplicity 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

0140

Simplicity 1931335

BOLT, 5/16-18 x 1" Round Head Short Square Neck, GR 5 Zinc
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

0150

Simplicity 1933685

SCREW, 3/8-16 x 2-1/2" Hex Head Cap GR 5 Black
(Superseded to 1933685SM)

$5.49

$

In Stock, only 1 left!

0

0160

Simplicity 1960339

NUT, 3/8-16 Hex Flange Lock, Large, Black
(Superseded to 1922694SM)

$6.99

$

In Stock, Qty 20+

0

0170

Simplicity 7091331

WASHER, .406 x 1.50 x .120 Flat, Yellow Zinc
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0180

Simplicity 7301100BM

ARM, Idler, 46/52 RZT
(Superseded to 7301100BMYP)

$

$

Not available

0190

Simplicity 7301102BM

BRACKET, Idler, Rear, 46/52 RZT
(Superseded to 7301102BMYP)

$

$

Not available

0210

Simplicity 1922130

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR 5 Black
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0
