ZT 26520 (7800766-01) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton 52" Mower Deck - Hitch & Height Adjustment Group (7501576C) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

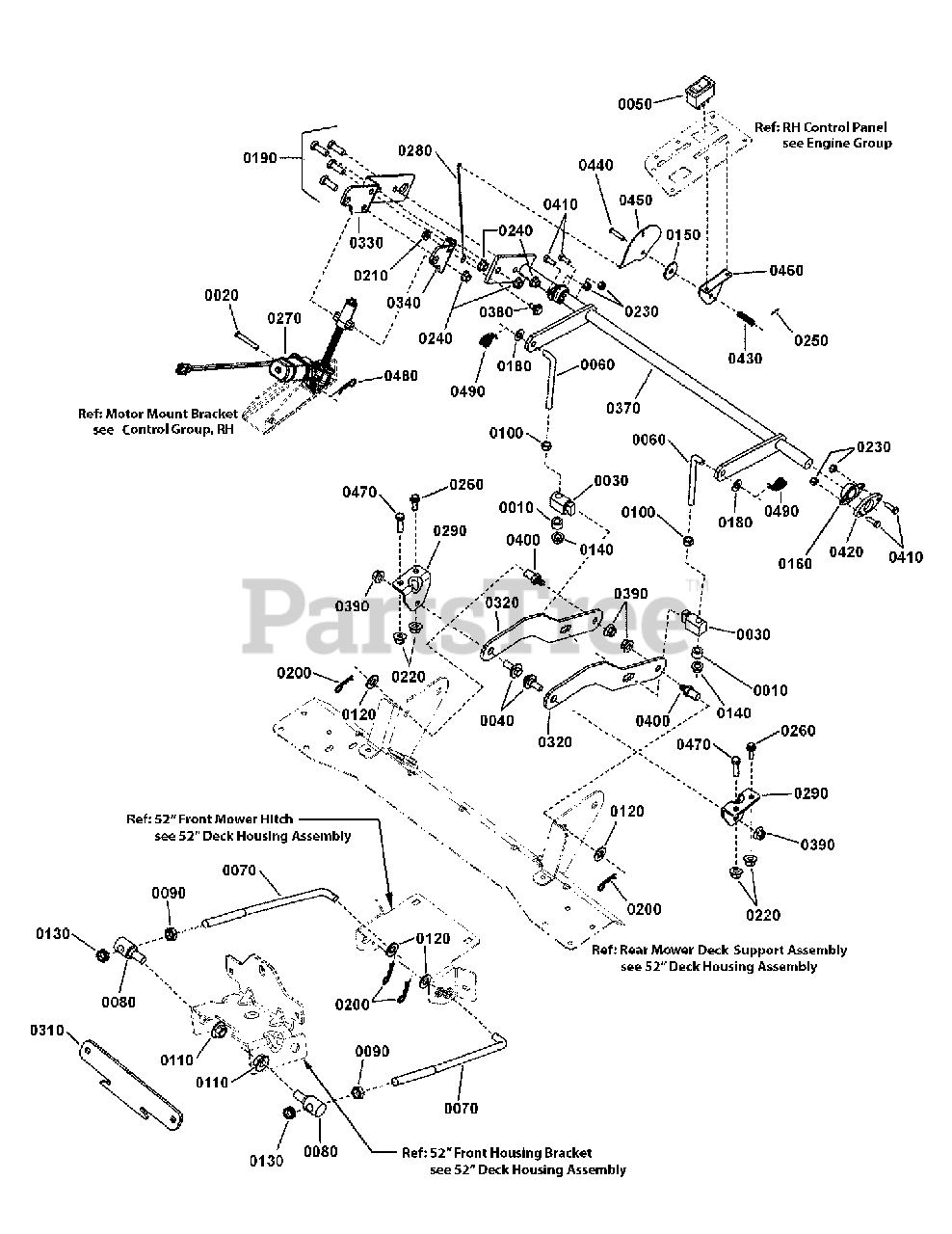

52" Mower Deck - Hitch & Height Adjustment Group (7501576C) Parts Diagram

  • Title

0010

Simplicity 1666294

SPACER, .385 ID x .6697 OD x .455 Long, PM Yellow
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

0020

Simplicity 1739295

SHEAR PIN, .248 ID x 1-3/4" Long
(Superseded to 703063)

Note: (Was 1668344)

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 1731894

TRUNNION, Powdered Metal, Yellow, Regent
(Superseded to 1731894SM)

$9.99

$

In Stock, only 3 left!

0

0040

Simplicity 1732129

SHOULDER BOLT, 3/8-16 x .94, BZ
(Superseded to 1732129SM)

$5.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1734141

SWITCH, Rocker Electric Height-Of-Cut
(Superseded to 1734141SM)

$47.99

$

In Stock, Qty 19

0

0060

Simplicity 1734217

ROD, Mower Lift (3/8-16 thread) Yellow
(Superseded to 1734217SM)

$14.99

$

In Stock, Qty 5

0

0070

Simplicity 1736081

ROD, Front Bail (1/2-13 thread) 46, 52" MWR
(Superseded to 1736081YP)

$12.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1737417

TRUNNION, Unthreaded
(Superseded to 1737417YP)

$21.99

$

In Stock, only 2 left!

0

0090

Simplicity 1913744

NUT, 1/2-13 Hex Jam, Black
(Superseded to 1913744SM)

$4.99

$

In Stock, Qty 19

0

0100

Simplicity 1916950

NUT, 3/8-16 Hex, Black
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

0110

Simplicity 1930644

NUT, 1/2-13 Hex Flange Two-Way Lock Black
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

0120

Simplicity 1960170

WASHER, 1/2" Flat (0.51 ID x 1.00 OD x .10 Thick) Black
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0130

Simplicity 1960379

NUT, 1/2-13 Jam, Esna Light Thin
(Superseded to 1960379SM)

$4.99

$

In Stock, Qty 18

0

0140

Simplicity 80003660

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

Note: (Was 1960687)

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 7023649

WASHER, 5/16" Nylon
(Superseded to 7023649YP)

$4.49

$

In Stock, only 2 left!

0

0160

Simplicity 7026196

BEARING, Flange, .75 ID PM
(Superseded to 7026196SM)

$7.49

$

In Stock, only 2 left!

0

0180

Simplicity 7090122

WASHER, 3/8" Flat (SAE)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Simplicity 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

0200

Simplicity 80002737

HAIR PIN, 3/32 x 1-1/2" YZ
(Superseded to 703300)

Note: (Was 7091503)

$3.99

$

In Stock, Qty 20+

0

0210

Simplicity 80002727

NUT, 1/4-20 Hex Flange Lock, GR 5, YZ
(Superseded to 703233)

Note: (Was 7091584)

$4.49

$

In Stock, Qty 5

0

0220

Simplicity 80002728

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

Note: (Was 7091601)

$5.49

$

In Stock, Qty 20+

0

0230

Simplicity 7092126

NUT, 1/4-20 Hex Center Lock, YZ
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0240

Simplicity 80002729

NUT, 3/8-16 Hex Flange lock, YZ
(Superseded to 703333)

Note: (Was 7091619)

$4.99

$

In Stock, Qty 20+

0

0250

Simplicity 7090673

COTTER PIN, .06 x 1/2" YZ
(Superseded to 703464)

Note: (Was 7091629)

$4.49

$

In Stock, only 1 left!

0

0260

Simplicity 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, GR 5, YZ
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

0270

Simplicity 7103818

MOTOR, Actuator, Lift, Deck
(Superseded to 7103818YP)

$148.99

$

In Stock, Qty 13

0

0280

Simplicity 7103956

ROD, Indicator, Height-Of-Cut
(Superseded to 7103956YP)

$9.99

$

In Stock, only 1 left!

0

0290

Simplicity 7300028BM

BRACKET, Deck Hanger
(Superseded to 7300028BMYP)

$14.99

$

Usually ships in 2-12 days

0

0310

Simplicity 7301097BM

SUPPORT, Hanger (46/52)
(Superseded to 7301097BMYP)

$10.99

$

Usually ships in 2-12 days

0

0320

Simplicity 7301098BM

BAR, Rear Lift
(Superseded to 7301098BMYP)

$28.99

$

In Stock, only 4 left!

0

0330

Simplicity 7301104BM

BRACKET, Lift, Deck, Primary
(Superseded to 7301104BMYP)

$

$

Not available

0340

Simplicity 7301105BM

BRACKET, Lift, Deck, Secondary
(Superseded to 7301105BMYP)

$15.99

$

Usually ships in 2-12 days

0

0370

Simplicity 7400011BM

WELDMENT, Deck Lift, 38/42
(Superseded to 7400011BMYP)

$193.99

$

In Stock, only 1 left!

0

0380

Simplicity 720100

SHOULDER BOLT, 1/4-20 x 3/8"
(Superseded to 009X54MA)

$5.49

$

In Stock, only 1 left!

0

0390

Simplicity 720148

NUT, 3/8-16 Hex Flange Center Lock, Zinc Plated
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0400

Simplicity 721221

PIN, 3/8-16 Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

0410

Simplicity 80002712

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5 YZ
(Superseded to 703925)

Note: (Was 7091495)

$4.49

$

In Stock, Qty 7

0

0420

Simplicity 7301125BM

SPACER, Bearing, .25"
(Superseded to 7301125BMYP)

$12.99

$

In Stock, only 2 left!

0

0430

Simplicity 722412

SPRING, Compression
(Superseded to 164X34MA)

$5.99

$

In Stock, Qty 14

0

0440

Simplicity 80003541

CLEVIS PIN, .25 x 1.09
(Superseded to 578309MA)

Note: (Was 724579)

$5.49

$

In Stock, Qty 6

0

0450

Simplicity 7301119BC

LEVER, Indicator, Height-Of-Cut
(Superseded to 7301119BCYP)

$8.49

$

Usually ships in 2-12 days

0

0460

Simplicity 7301120BM

BRACKET, Indicator, Height-Of-Cut
(Superseded to 7301120BMYP)

$9.99

$

Usually ships in 2-12 days

0

0470

Simplicity 80002716

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703585)

Note: (Was 7027168)

$4.99

$

Usually ships in 2-12 days

0

0480

Simplicity 80003663

HAIR PIN, .080 Wire x 1.19 LG x .25/.38 Dia
(Superseded to 703430)

Note: (Was 1722460)

$3.49

$

In Stock, only 1 left!

0

0490

Simplicity 7091593

COTTER PIN, Self Locking, 3/8", YZ
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0
