ZT 26520 (7800633) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton Transaxle Group - ZT26520, EZT (7501573) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

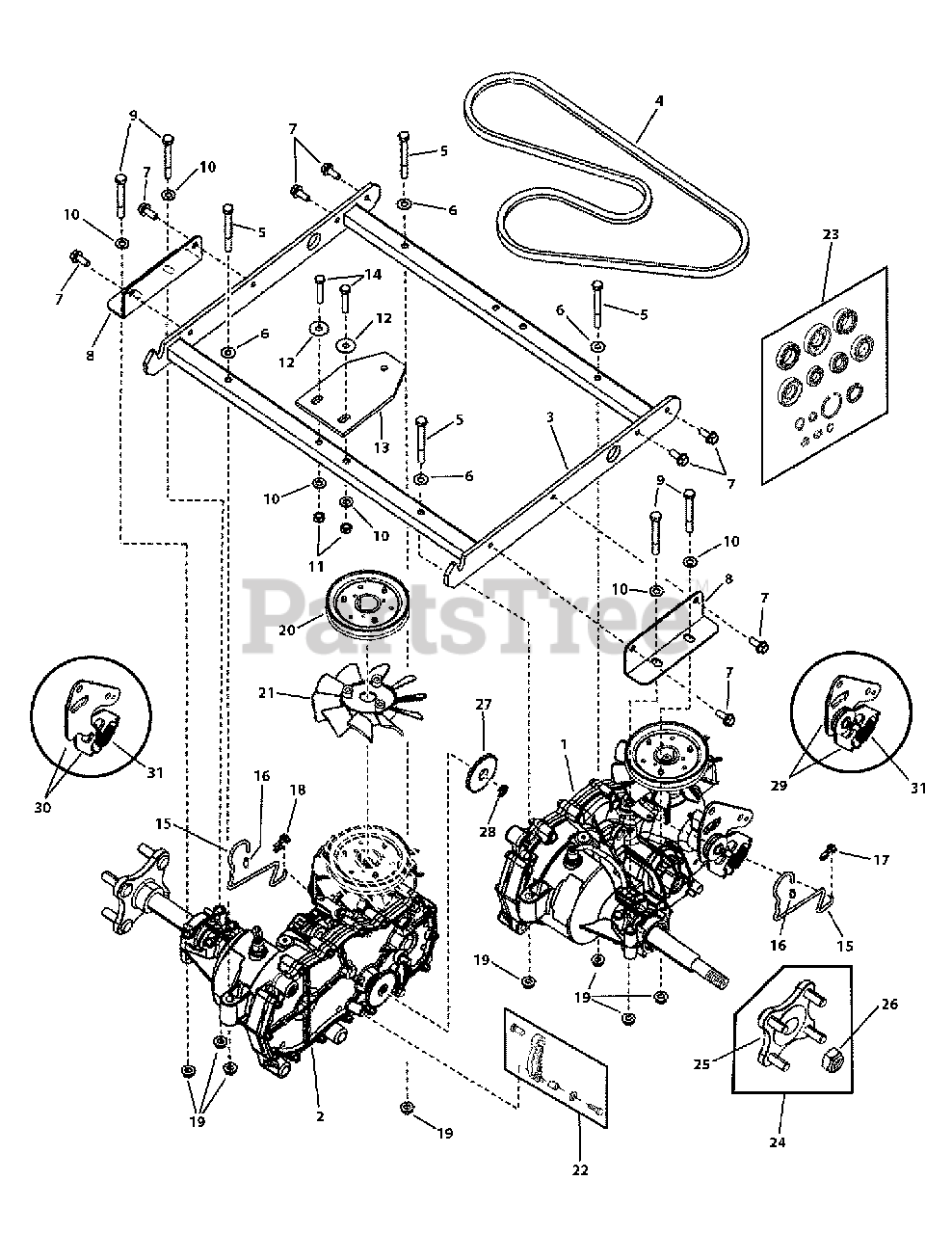

Transaxle Group - ZT26520, EZT (7501573) Parts Diagram

  • Title

1

Simplicity 7104656

TRANSMISSION- Hydro Gear, EZT LH ZT (ZC-AHBB-2A7B-1DPX)
(Superseded to 7104656YP)

$1171.99

$

Usually ships in 2-12 days

0

2

Simplicity 7104657

TRANSMISSION- Hydro Gear, EZT RH ZT (ZC-DHBB-2A7C-1DPX)
(Superseded to 7104657YP)

$1173.99

$

Usually ships in 2-12 days

0

3

Simplicity 7400288BM

WELDMENT, Transaxle Support
(Superseded to 7400288BMYP)

$210.99

$

Usually ships in 2-12 days

0

4

Simplicity 7100102

V-BELT, Hydro Drive
(Superseded to 7100102SM)

Note: (HA Wrapped Section; 58" Effective Length)

$43.99

$

In Stock, Qty 20+

0

5

Simplicity 7091830

SCREW, 5/16-18 x 3" Hex Head Cap, GR 5, YZ
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 7015686

SHIM WASHER, 5/16 I.D.
(Superseded to 7015686SM)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap, YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 7300000BM

BRACKET, Transaxle Support
(Superseded to 7300000BMYP)

$12.99

$

Usually ships in 2-12 days

0

9

Simplicity 7091944

SCREW, 5/16-18 x 2-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

10

Simplicity 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 7091575

NUT, 5/16-18 Hex Center Lock, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

12

Simplicity 7011763

FENDER WASHER, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 7101161

RUBBER, Anti-Rotation
(Superseded to 7104674YP)

$

$

Not available

14

Simplicity 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0

15

Simplicity 7103512

ROD, Roll Release
(Superseded to 7103512YP)

$19.99

$

In Stock, only 1 left!

0

16

Simplicity 7103537

CAP, Vinyl
(Superseded to 7103537YP)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 1725550

CLIP, Rod End Clevis LH for .188 Dia. Rod
(Superseded to 1725550SM)

$5.99

$

Usually ships in 2-12 days

0

18

Simplicity 1717024

CLIP, Rod End Clevis RH for .188 Dia. Rod
(Superseded to 1717024SM)

$7.49

$

In Stock, only 2 left!

0

19

Simplicity 720145

NUT, 5/16-18 Hex Flange Center Lock
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

20

Simplicity 1728073SM

PULLEY, 4-1/2"

$

$

Not available

21

Simplicity 1728074SM

FAN, 6"

$43.99

$

Usually ships in 2-12 days

0

22

Simplicity 1728075SM

ASSEMBLY, Parking Brake Arm, Trans

$50.99

$

In Stock, only 1 left!

0

23

Simplicity 1728060SM

KIT, Hydro Seal

$140.99

$

Usually ships in 2-12 days

0

24

Simplicity 1687329SM

KIT, Hub Replacement (Incldes Ref. Nos. 25 & 26)
(Superseded to 1687471YP)

$153.99

$

Usually ships in 2-12 days

0

25

HUB, EZT Trans (Included in Ref. No. 24)

$

$

Not available

26

NUT, EZT Trans (Included in Ref. No. 24)

$

$

Not available

27

Simplicity 1728076SM

GEAR, Parking Brake, Trans

$37.99

$

Usually ships in 2-12 days

0

28

Simplicity 1716622SM

E-CLIP, Trans Parking Brake

$4.49

$

Usually ships in 2-12 days

0

29

Simplicity 1735490SM

KIT, LH Arm Control

$108.99

$

Usually ships in 2-12 days

0

30

Simplicity 1735491SM

KIT, RH Arm Control

$92.99

$

Usually ships in 2-12 days

0

31

Simplicity 1735483SM

SPRING, Extension (used only on Hydro Gear P/N ZC-AHBB-2A7B-1DPX & ZC-DHB-2A7C-1DPX)

$16.99

$

In Stock, Qty 6

0

31

Simplicity 1735482SM

SPRING, Extension (used only on Hydro Gear P/N ZC-AHBB-2ADB-1DPX & ZC-DHB-2ADC-1DPX)

$

$

Not available
