ZT 26520 (7800633) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton Front Axle Group - ZT26520 (7501589) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

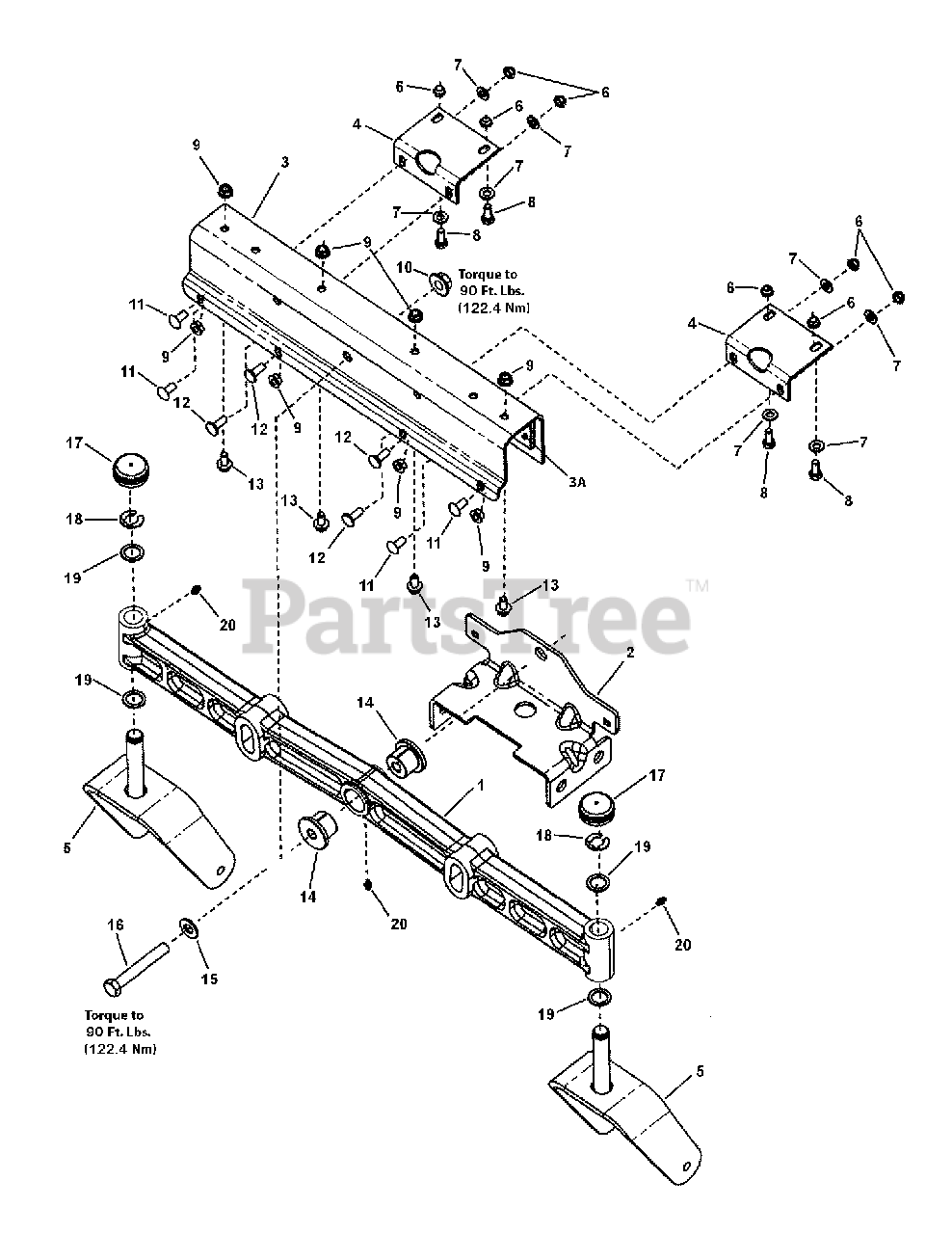

Front Axle Group - ZT26520 (7501589) Parts Diagram

  • Title

1

Simplicity 1733426

AXLE, Front Iron Casting Machined ZT 2007
(Superseded to 1733426SM)

$243.99

$

Usually ships in 2-12 days

0

2

Simplicity 7301096BM

BRACKET, Hanger, Front (46/52)
(Superseded to 7301096BMYP)

$39.99

$

Usually ships in 2-12 days

0

3

Simplicity 7301076BM

BRACKET, Axle
(Superseded to 7301076BMYP)

$39.99

$

Usually ships in 2-12 days

0

3A

Simplicity 7103773

PLATE, Friction, Adhesive Backed
(Superseded to 7103773YP)

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 7300004BM

BRACKET, Axle Support
(Superseded to 7300004BMYP)

$21.99

$

In Stock, only 1 left!

0

5

Simplicity 1733448BM

WELDMENT, Caster Yoke & Spindle, Black
(Superseded to 1733448BMYP)

$152.99

$

In Stock, only 3 left!

0

6

Simplicity 7091706

NUT, 5/16-18 Hex Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

9

Simplicity 7091601

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

10

Simplicity 1930644

NUT, 1/2-13 Hex Flange Two-Way Lock Black
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

11

Simplicity 7091508

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5, YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

12

Simplicity 1931334

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

13

Simplicity 7091811

BOLT, 5/16-18 x 5/8" Hex Flange lock, GR 5, YZ
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

14

Simplicity 7103454

BUSHING, Axle Pivot
(Superseded to 7103454YP)

$45.99

$

In Stock, only 2 left!

0

15

Simplicity 7091587

WASHER, 1/2" Flat (SAE)
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 7091558

SCREW, 1/2-13 x 3-1/2" Hex Head Cap, YZ
(Superseded to 7091558SM)

$4.99

$

In Stock, only 1 left!

0

17

Simplicity 1734135

HUB CAP, 1.481 I.D x .62 Long Red Poly
(Superseded to 1734135SM)

$5.99

$

In Stock, Qty 20+

0

18

Simplicity 1611710

RING, Klipring External for .750 Dia. Shaft Bln
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1960160

WASHER, 0.750 ID x 1.60 OD x .05 Thick, Black
(Superseded to 1960160SM)

$4.99

$

In Stock, Qty 9

0

20

Simplicity 7013864

LUBE FITTING, 3/16" Press Fit
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0
