ZT 26520 (7800633) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton Engine Group - 26HP & 27HP B&S V-Twin (7501568_7501936) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

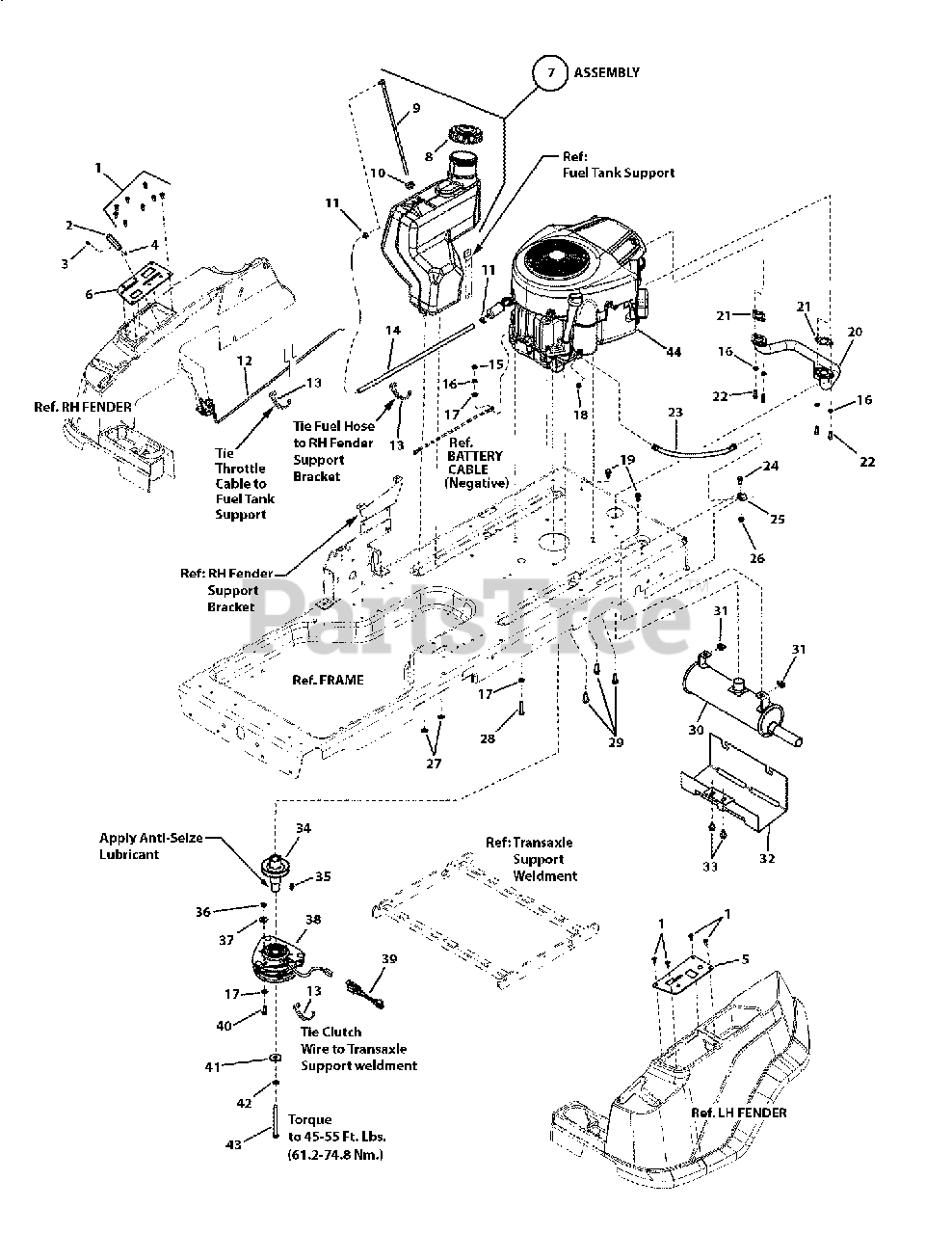

Engine Group - 26HP & 27HP B&S V-Twin (7501568_7501936) Parts Diagram

  • Title

1

Simplicity 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tap (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 7103888

KNOB, Throttle, Red
(Superseded to 7103888YP)

$8.49

$

Usually ships in 2-12 days

0

3

Simplicity 7091017

SCREW, #8-32 x 3/8" Cross Recess Filister Head, GR 2
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0

4

Simplicity 7091018

NUT, #8-32 Hex, GR 2B
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

5

Simplicity 7301084BM

PANEL, Control, LH
(Superseded to 7301084BMYP)

$21.99

$

Usually ships in 2-12 days

0

6

Simplicity 7301093BM

PANEL, Control, RH
(Superseded to 7301093BMYP)

$20.99

$

Usually ships in 2-12 days

0

7

Simplicity 7103815

ASSEMBLY, Fuel Tank, 3 Gallon (incl. 4 items shown below)
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

--

Simplicity 7103532

TANK, Fuel, 3 Gal. (not sold separately, order item 7)
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

8

Simplicity 1715917

CAP, Fuel Tank
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

9

Simplicity 7103536

ASSEMBLY, Elbow, Pickup Tube
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

10

Simplicity 1726400

BUSHING, Fuel
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

11

Simplicity 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 7103771

ASSEMBLY, Throttle, Choke-A-Matic, B&S V-Twin
(Superseded to 7103771YP)

Note: (used on 7800633, ZT26520)

$40.99

$

Usually ships in 2-12 days

0

12

Simplicity 7104211

ASSEMBLY, Throttle, B&S V-Twin w/EFM
(Superseded to 7104211YP)

Note: (used on 7800579, ZT27460)

$45.99

$

Usually ships in 2-12 days

0

13

Simplicity 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 7200140

HOSE, Fuel, 1/4" x 32"
(Superseded to 7200140YP)

$14.99

$

In Stock, only 1 left!

0

15

Simplicity 7091511

NUT, 5/16-18 Hex, GR 5 or B, YZ
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 7091584

NUT, 1/4-20 Hex Flange Lock, GR 5, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

19

Simplicity 1930591

SCREW, 5/16-18 x 3/4" Hex Flange Lock, Black
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

20

Simplicity 7103414

MANIFOLD, B&S V-Twin
(Superseded to 7103414YP)

$96.99

$

In Stock, only 1 left!

0

21

Simplicity 1731214

GASKET, Exhaust B&S Reg (No Chre) 273485
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 7091738

SCREW, 5/16-18 x 3/4" Allen Socket Head, GR 8 Black
(Superseded to 7091738SM)

$4.99

$

In Stock, Qty 14

0

23

Simplicity 1726498

HOSE, Oil Drain
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

24

Simplicity 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

25

Simplicity 7900020

HARNESS CLIP, 5/8"
(Superseded to 7900020SM)

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 7091601

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Simplicity 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5 YZ
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 7103411

MUFFLER, RZT
(Superseded to 7103411YP)

$231.99

$

Usually ships in 2-12 days

0

31

Simplicity 1935255

SPEEDNUT, 5/16 -18, Lug Type .025/.150 B
(Superseded to 1935255SM)

$3.49

$

In Stock, only 2 left!

0

32

Simplicity 7301083BM

HEAT SHIELD, Muffler
(Superseded to 7301083BMYP)

$46.99

$

Usually ships in 2-12 days

0

33

Simplicity 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

34

Simplicity 7043343

ASSEMBLY, Engine Pulley
(Superseded to 7043343SM)

$114.99

$

In Stock, only 1 left!

0

35

Simplicity 7016755

KEY, 1/4" Square x 3/4"
(Superseded to 7016755YP)

$4.99

$

Usually ships in 2-12 days

0

36

Simplicity 7091575

NUT, 5/16-18 Hex Center Lock, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

37

Simplicity 7011763

FENDER WASHER, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, only 4 left!

0

38

Simplicity 1717664

CLUTCH, Ogura JD-11
(Superseded to 1757359)

$290.99

$

In Stock, only 1 left!

0

39

Simplicity 1737462

HARNESS, Jumper (used with Ogura Clutch only)
(Superseded to 1737462YP)

$9.99

$

In Stock, only 1 left!

0

40

Simplicity 7091904

SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5, YZ
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

41

Simplicity 7029138

WASHER, .468 ID x 1-1/2" OD x .188 Flat, YZ
(Superseded to 704053)

$9.99

$

In Stock, only 1 left!

0

42

Simplicity 7091301

WASHER, 7/16" Split Lock, YZ
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

43

Simplicity 7092130

SCREW, 7/16-20 x 4-1/2" Hex Head Cap, GR 5
(Superseded to 7092130SM)

$

$

Not available

44

Simplicity 44P777-0167-B1

* ENGINE, 26 HP, B&S V-Twin (early models)

Note: (used on 7800633, ZT26520)

$

$

Not available

44

Simplicity 44P777-2167-G1

* ENGINE, 26 HP, B&S V-Twin

Note: (used on 7800633, ZT26520)

$

$

Not available

44

Simplicity 44Q777-0141-B1

* ENGINE, 27 HP, B&S Pro w/EFM (early models)

Note: (used on 7800579, ZT27460)

$

$

Not available

44

Simplicity 44Q777-2141-G1

* ENGINE, 27 HP, B&S Pro w/EFM

Note: (used on 7800579, ZT27460)

$

$

Not available
