ZT 26520 (7800633) - Simplicity 52" Zero-Turn Mower, 26hp Briggs & Stratton Control Group - LH (7501570) Parts Diagram

52" Zero-Turn Mower, 26hp Briggs & Stratton

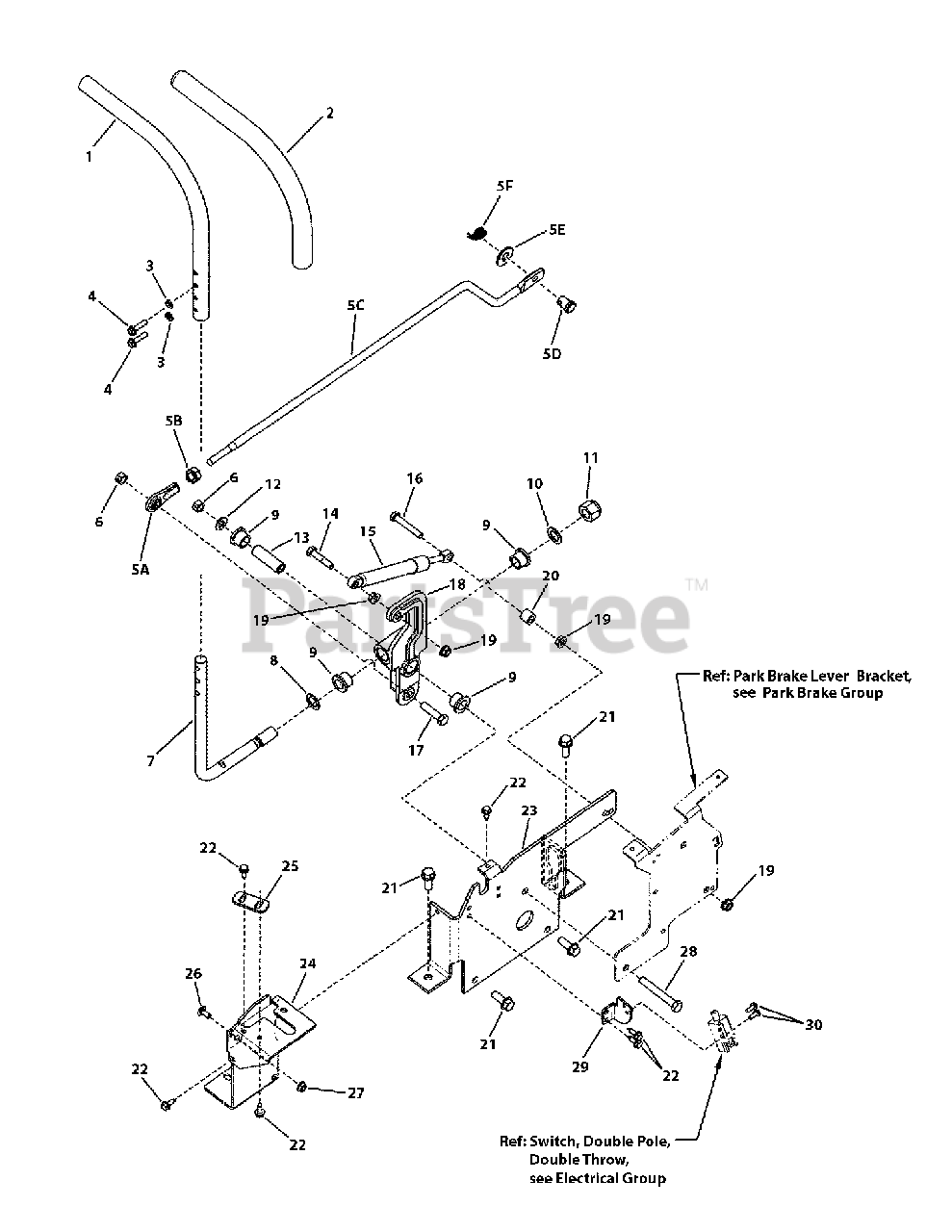

Control Group - LH (7501570) Parts Diagram

  • Title

1

Simplicity 7043338A

HANDLE
(Superseded to 7043338AYP)

$45.99

$

Usually ships in 2-12 days

0

2

Simplicity 7100051

GRIP, Handle
(Superseded to 7100051YP)

$10.99

$

Usually ships in 2-12 days

0

3

Simplicity 1916964

LOCKWASHER, 1/4" Spring, YZ
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

4

Simplicity 1921960

SCREW, 1/4-20 x 1" Hex Head Cap, GR 5, BZ
(Superseded to 1921960SM)

$3.49

$

In Stock, only 1 left!

0

5A

Simplicity 7100743

ROD END, (3/8-24 thread)
(Superseded to 7100743YP)

$10.99

$

In Stock, only 2 left!

0

5B

Simplicity 7091630

NUT, 3/8-24 Hex, GR B, YZ
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

5C

Simplicity 7104168

ROD, Link Foward/Reverse (3/8-24 thread)
(Superseded to 7104168YP)

$30.99

$

Usually ships in 2-12 days

0

5D

Simplicity 7900000

PIN, 7/16 x 1" Clevis
(Superseded to 7900000SM)

$6.99

$

Usually ships in 2-12 days

0

5E

Simplicity 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

5F

Simplicity 7091594

COTTER PIN, 1/2 Self, YZ
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0

6

Simplicity 7091585

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

7

Simplicity 7200004

ROD, Handle R.H.
(Superseded to 7200004SM)

$54.99

$

Usually ships in 2-12 days

0

8

Simplicity 7091628

WASHER, .64 x .99 x .05 Flat, YZ
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 7013874

BUSHING

$5.49

$

Usually ships in 2-12 days

0

10

Simplicity 7900016

WASHER, 5/8 ID x 1.00 OD x .065 Nylon
(Superseded to 7900016SM)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 7091505

NUT, 5/8-18 Hex Nyloc, YZ
(Superseded to 703432)

$

$

Not available

12

Simplicity 7090122

WASHER, 3/8" Flat (SAE)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 7100714

SPACER, Sleeve, RZT
(Superseded to 7100714YP)

$16.99

$

Usually ships in 2-12 days

0

14

Simplicity 7091540

SCREW, 5/16-18 x 1-1/2 Hex Head Cap, YZ
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

15

Simplicity 5100728

DAMPENER, Control
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

16

Simplicity 7027174

SCREW, 5/16-18 x 2" Hex Head Cap, GR 5, YZ
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

17

Simplicity 7091497

SCREW, 3/8-16 x 1-1/2 Hex Head Cap, GR 5, YZ
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

18

Simplicity 7100715

ARM, Die Cast Aluminum
(Superseded to 7100715YP)

$28.99

$

Usually ships in 2-12 days

0

19

Simplicity 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

20

Simplicity 7023206

SPACER
(Superseded to 7023206YP)

$8.49

$

Usually ships in 2-12 days

0

21

Simplicity 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

22

Simplicity 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap, Black
(Superseded to 703466)

$3.99

$

In Stock, Qty 11

0

23

Simplicity 7043302BM

CONTROL BRACKET, LH
(Superseded to 7043302BMYP)

$33.99

$

Usually ships in 2-12 days

0

24

Simplicity 7301128BM

BRACKET, Guide, Stick, Control, LH
(Superseded to 7301128BMYP)

$27.99

$

Usually ships in 2-12 days

0

25

Simplicity 7300009BM

PLATE, Foward/Reverse Adjust
(Superseded to 7300009BMYP)

$8.49

$

Usually ships in 2-12 days

0

26

Simplicity 7091573

BOLT, 1/4-20 x 5/8" Round Head Short Square Neck, GR 5, YZ
(Superseded to 7091573YP)

$4.49

$

In Stock, only 1 left!

0

27

Simplicity 1960294

NUT, 1/4-20 Hex Flange Lock, Black
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

28

Simplicity 1922918

SCREW, 3/8-16 x 3-1/4" Hex Head Cap, GR 5
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

29

Simplicity 7300032BM

BRACKET, Switch
(Superseded to 7300032BMYP)

$9.99

$

Usually ships in 2-12 days

0

30

Simplicity 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap, Torx
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0
