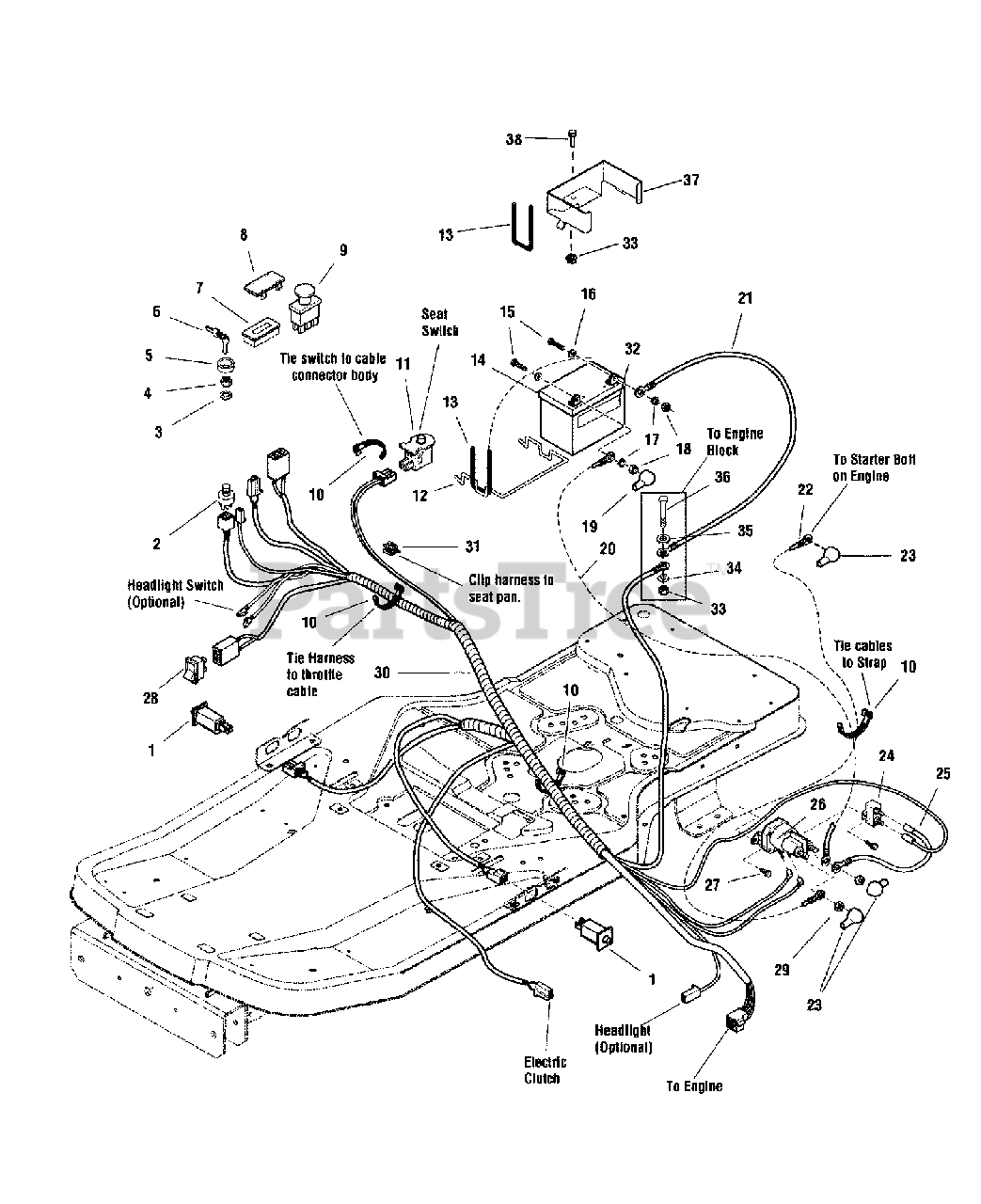

ZT 2650 (7800375) - Simplicity Axion 50" Zero-Turn Mower, 26hp Electrical Group Parts Diagram

Axion 50" Zero-Turn Mower, 26hp

Electrical Group Parts Diagram

  • Title

1

Simplicity 7022886SM

SWITCH, Push Button (NO/NC) Snap-In
(Superseded to 7022886YP)

Note: or 1732006

$14.99

$

In Stock, Qty 20+

0

2

Simplicity 1686734SM

SWITCH ASSEMBLY, Ignition

$32.99

$

In Stock, Qty 20+

0

3

Simplicity 1960547SM

LOCKWASHER, Internal Tooth 5/8" Thin

$4.49

$

In Stock, only 4 left!

0

4

Simplicity 1717549SM

NUT, 5/8-32 Hex Flange (Ignition Switch Die Cast)
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

6

Simplicity 1717163SM

KEYS (set of two)

$8.99

$

In Stock, Qty 20+

0

7

Simplicity 1731185SM

HOUR METER, No Alarms

$60.99

$

In Stock, only 2 left!

0

8

Simplicity 1722611SM

PLUG, Hole (Black Plastic)

$6.99

$

In Stock, only 1 left!

0

9

Simplicity 1722887SM

SWITCH, PTO, Push/Pull Symbols

$33.99

$

In Stock, Qty 20+

0

10

Simplicity 1701011SM

TIE, Self Locking, .184 Wide 7.31 Long

$5.49

$

In Stock, only 2 left!

0

11

Simplicity 7023354YP

SWITCH, Push Button (NC)

Note: or 1732005

$12.99

$

In Stock, Qty 20+

0

12

Simplicity 1667805SM

BRACE, Battery, .19 Dia. Wire

$

$

Not available

13

Simplicity 1665872SM

STRAP, Black Rubber, .19 Square 7.88 O.D. Battery

$11.99

$

In Stock, Qty 7

0

14

Simplicity 1685215SM

BATTERY, 12 Volt, 230 CCA

$

$

Not available

15

Simplicity 2823341SM

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

16

Simplicity 2821319SM

WASHER, 1/4, .27 I.D. x .62 O.D. x .05 Thick
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 2816964SM

WASHER, 1/4" Spring Lock
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

18

Simplicity 2816622SM

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1677296SM

BOOT, Insulator, Red PVC Warning

$6.49

$

In Stock, Qty 11

0

20

Simplicity 1716549SM

CABLE, #6 x 10 Long, Red Two-Ring Terminals
(Superseded to 1752685YP)

$11.99

$

In Stock, only 2 left!

0

21

Simplicity 1713163SM

CABLE, # 6 x 26 Long Two-Ring Terminals

$24.99

$

Usually ships in 2-12 days

0

22

Simplicity 1727668SM

CABLE, #6 x 15 Long, Two-Ring Terminals

$11.99

$

Usually ships in 2-12 days

0

23

Simplicity 1724588SM

COVER, Terminal Red PVC

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1665238SM

BREAKER, Circuit 12 Volt 20 AMP

$14.99

$

In Stock, Qty 20+

0

25

Simplicity 1665237SM

WIRE, 12 Gage

$11.99

$

In Stock, Qty 7

0

26

Simplicity 7075622SM

SOLENOID, Super Trombetta - 2 Terminal
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 20+

0

27

Simplicity 1925003SM

SCREW, 1/4-20 x 1/2" Hex Washer Head Screw Black (Taptite)
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

28

Simplicity 1734141SM

SWITCH, Electric Height-of-Cut

$47.99

$

In Stock, Qty 19

0

29

Simplicity 2860750SM

NUT, 5/16-24 Hex Keps

$2.99

$

Usually ships in 2-12 days

0

30

Simplicity 7102581SM

HARNESS, Wiring
(Superseded to 7103103YP)

$170.99

$

Usually ships in 2-12 days

0

31

Simplicity 2172434SM

CLIP, Cable, .390 Wire Dia.

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1730185SM

DECAL, Danger Poison

$6.49

$

Usually ships in 2-12 days

0

33

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock, Small - Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Simplicity 2820427SM

WASHER, 3/8" External Tooth Lock
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1919326SM

WASHER, .312 (.34 I.D. x.75 O.D.)

$4.49

$

In Stock, Qty 8

0

36

Simplicity 1921978SM

SCREW, 5/16-18 x 2" Hex Head Cap
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

37

Simplicity 1735351ASM

BRACKET, Battery Hold Down
(Superseded to 1735351BMYP)

Note: used on 33" Deck Models

$43.99

$

Usually ships in 2-12 days

0

38

Simplicity 7091905SM

BOLT, 5/16-18 x 7/8" Hex Flange Lock

$4.49

$

Usually ships in 2-12 days

0
