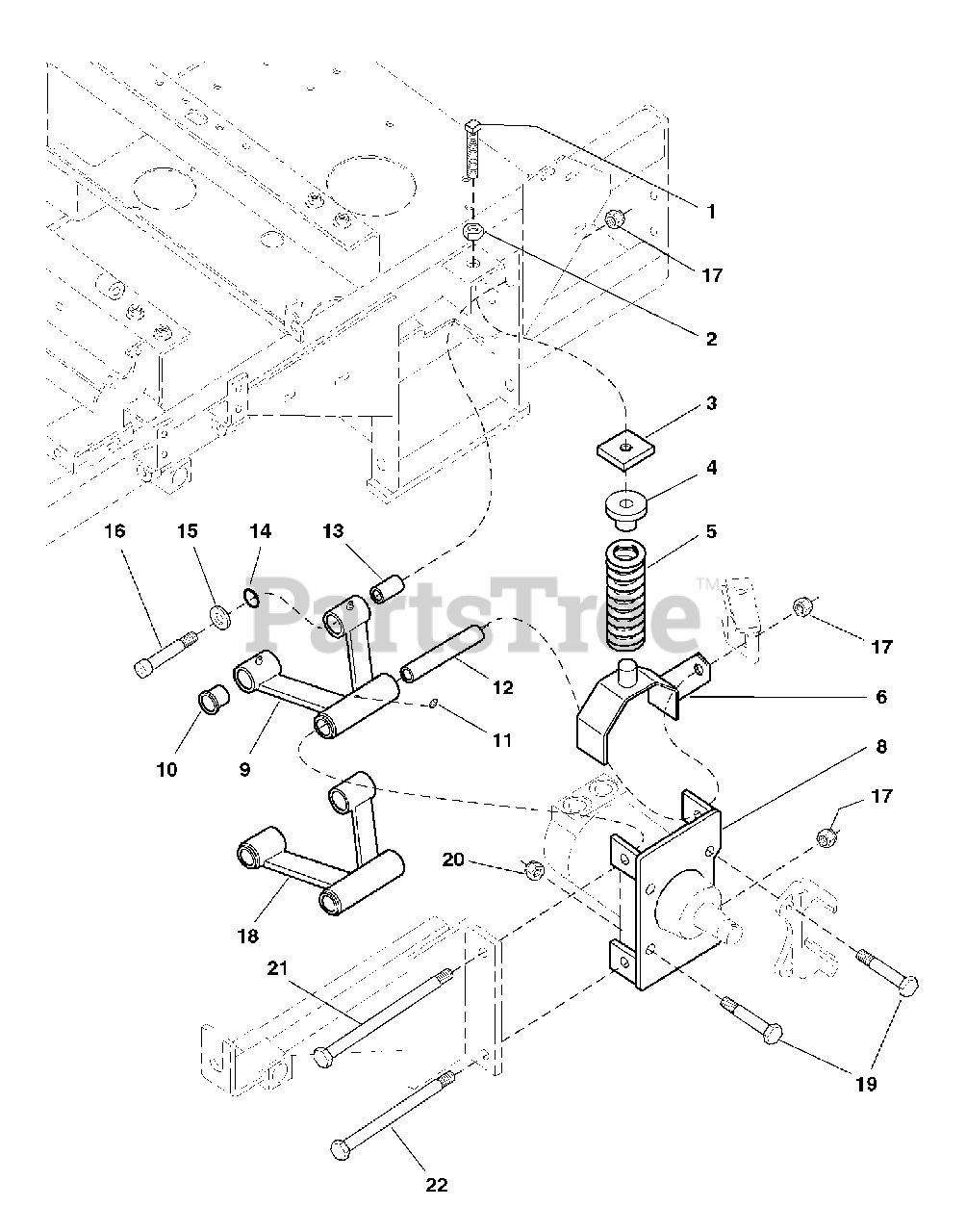

ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Suspension Group (7012sg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

Suspension Group (7012sg) Parts Diagram

  • Title

1

Simplicity 5025295

SET SCREW, Square Hd, 1/2-13 x 3

$

$

Not available

2

Simplicity 5025301SM

NUT, Hex, Jam, 1/2-13

$3.49

$

In Stock, only 1 left!

0

3

Simplicity 5045904SM

SPRING COMPRESSION PLATE

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 5045898SM

SPRING RETAINER

$

$

Not available

5

Simplicity 5021747SM

SPRING, Suspension
(Superseded to 5022323SM)

$

$

Not available

6

Simplicity 1845601

SPRING SADDLE-LH
(Superseded to 5045601E)

$

$

Not available

7

Simplicity 1845602

SPRING SADDLE-RH (not shown)
(Superseded to 5045602E)

$

$

Not available

8

Simplicity 1845588

WHEEL MOTOR MOUNT
(Superseded to 5045588E)

$

$

Not available

9

Simplicity 1845304

SUSPENSION A-ARM, Upper
(Superseded to 5045304E)

$

$

Not available

10

Simplicity 5022250SM

BUSHING, Flange

$9.49

$

Usually ships in 2-12 days

0

11

Simplicity 5020095SM

GREASE FITTING

$3.99

$

In Stock, only 3 left!

0

12

Simplicity 5045305SM

PIVOT SLEEVE, Long

$64.99

$

Usually ships in 2-12 days

0

13

Simplicity 5045306SM

PIVOT SLEEVE, Short

$32.99

$

Usually ships in 2-12 days

0

14

Simplicity 5022269SM

O-RING

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5045307SM

WASHER, A-Arm

$5.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025294SM

CAPSCREW, Allen Head, 1/2-13 x 3

$6.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 3 left!

0

18

Simplicity 1845308

SUSPENSION A-ARM, Lower
(Superseded to 5045308E)

$

$

Not available

19

Simplicity 502501824

CAPSCREW, Hex Hd, 1/2-20 x 3

$

$

Not available

20

Simplicity 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 502501760

CAPSCREW, Hex Hd, 1/2-13 x 7-1/2

$

$

Not available

22

Simplicity 5025017X52SM

CAPSCREW, Hex Hd, 1/2-13 x 6-1/2

$10.99

$

In Stock, only 2 left!

0
