ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Seat & Seat Mount Group (7012ssmg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

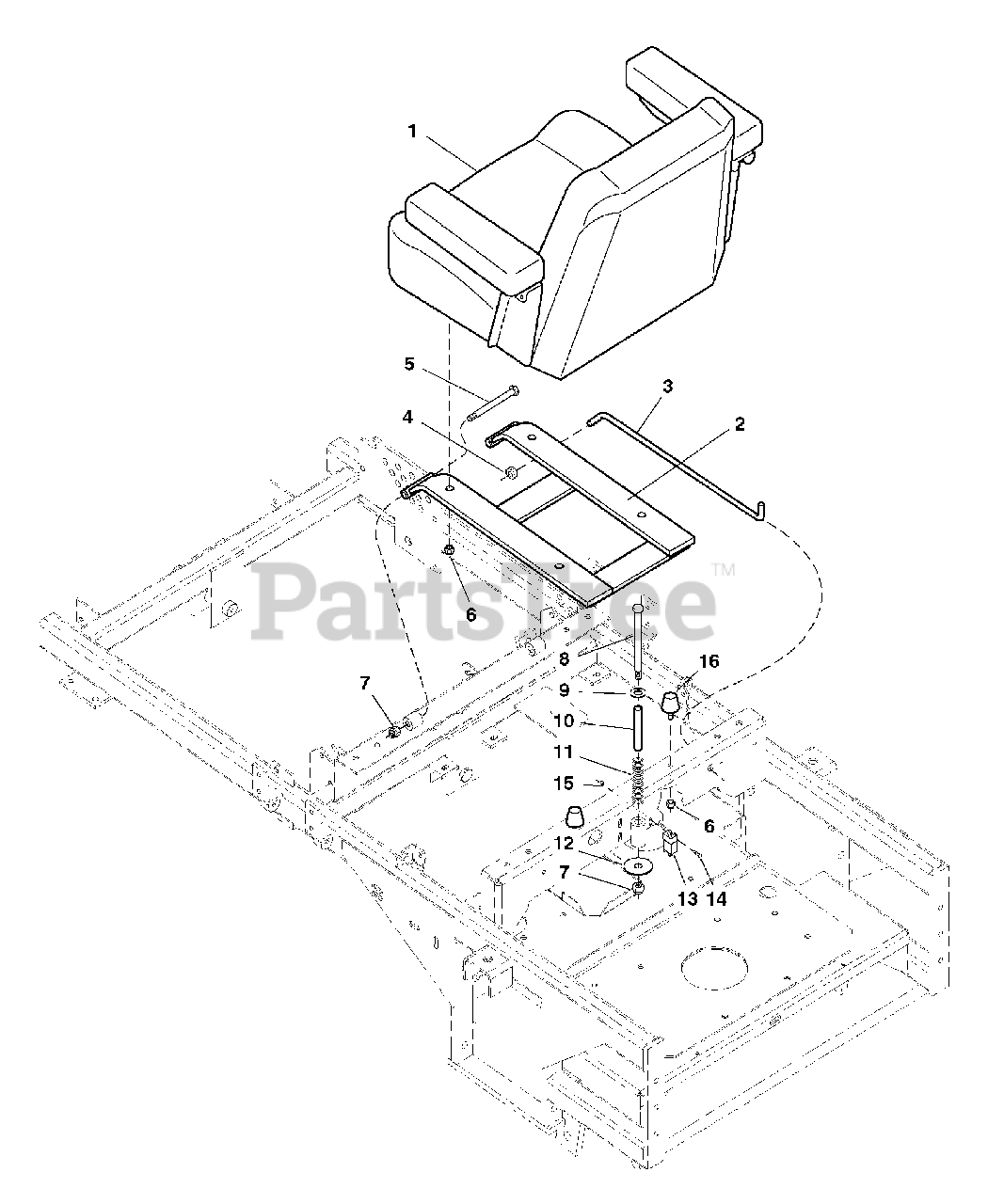

Seat & Seat Mount Group (7012ssmg) Parts Diagram

  • Title

1

Simplicity 5022363SM

SEAT, Brown (complete)

$

$

Not available

*

Simplicity 5022363X1SM

CUSHION, Seat, Brown

$

$

Not available

*

Simplicity 5022197X2SM

CUSHION, Back, Brown

$205.99

$

Usually ships in 2-12 days

0

*

Simplicity 5022440

ARM REST, Black
(Superseded to 5022185)

$70.99

$

Usually ships in 2-12 days

0

2

Simplicity 1846394

SEAT MOUNT
(Superseded to 5046394E)

$

$

Not available

3

Simplicity 5046470SM

SEAT STOP ROD

$33.99

$

Usually ships in 2-12 days

0

4

Simplicity 5020047SM

COLLAR, 5/16 Set

$7.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X32SM

CAPSCREW, Hex Hd, 3/8-16 x 4

$3.99

$

In Stock, Qty 11

0

6

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 5025013X48SM

CAPSCREW, Hex Hd, 3/8-16 x 6

$5.99

$

In Stock, Qty 20+

0

9

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

10

Simplicity 5046463

SPACER, Seat Spring

$

$

Not available

11

Simplicity 5022597

SPRING, Compression

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025326SM

WASHER, 3/8 x 2

$4.49

$

Usually ships in 2-12 days

0

13

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 20+

0

14

Simplicity 5025270SM

SCREW, #10-24 x 1

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025029SM

NUT, Hex, #10-24

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 5022612SM

RUBBER BUMPER

$23.99

$

In Stock, only 2 left!

0
