ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Reservoir Mount & Battery Group (7012rmbg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

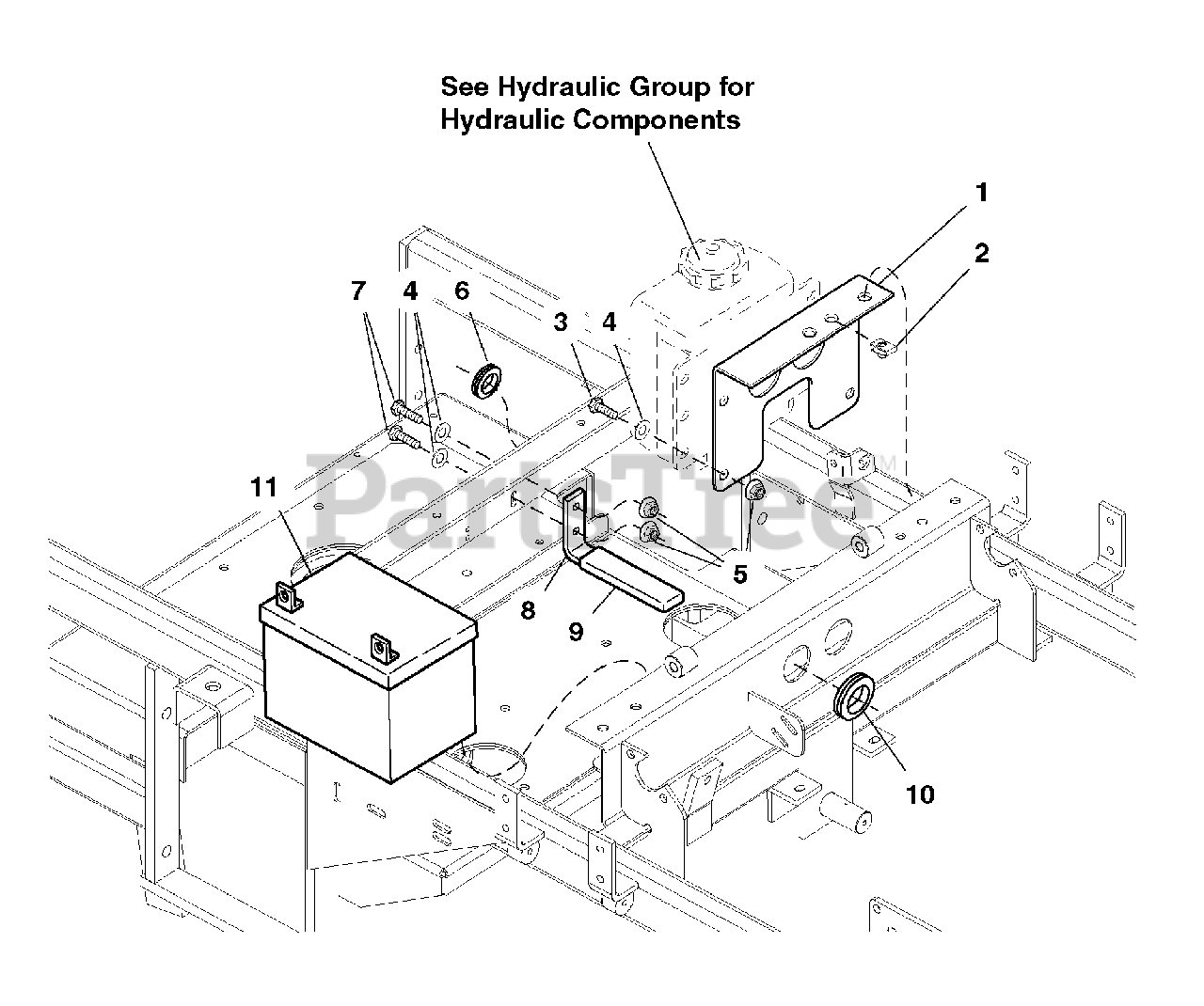

Reservoir Mount & Battery Group (7012rmbg) Parts Diagram

  • Title

1

Simplicity 1846397

MOUNT, Reservoir

$

$

Not available

2

Simplicity 5022649SM

BODY CLIP, 3/8-16

$

$

Not available

3

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Simplicity 5021379SM

GROMMET, 7/8

$6.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

8

Simplicity 1846447

RETAINER, Battery
(Superseded to 5046447E)

$

$

Not available

9

Simplicity 5025510SM

FOAM GRIP

$6.49

$

In Stock, Qty 12

0

10

Simplicity 5021397SM

GROMMET, 1-1/4

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1685215SM

BATTERY, Dry Cell (12V, 400CA Lawn & Garden)

$

$

Not available
