ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Frame Group - Main Frame & Front Pivot (7012mfpg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

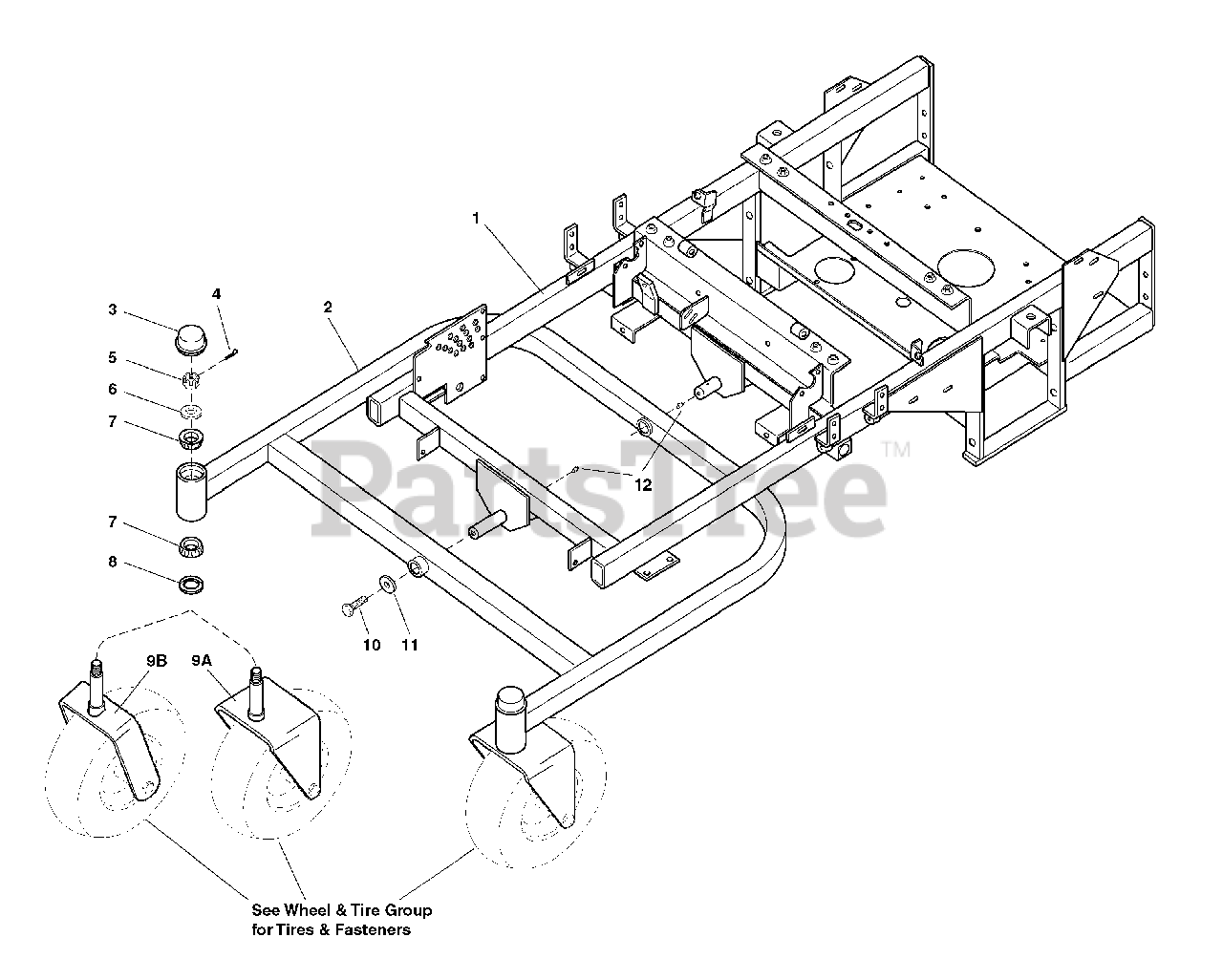

Frame Group - Main Frame & Front Pivot (7012mfpg) Parts Diagram

  • Title

1

Simplicity 1846373

MAIN FRAME
(Superseded to 5046373E)

$

$

Not available

2

Simplicity 1844908

FRONT PIVOT FRAME
(Superseded to 5044908E)

$

$

Not available

3

Simplicity 5021073SM

CAP

$7.49

$

In Stock, Qty 6

0

4

Simplicity 5025203X10SM

PIN, Cotter

$3.99

$

In Stock, only 1 left!

0

5

Simplicity 5025104SM

NUT, Hex, Slotted, 3/4-16
(Superseded to 1960387SM)

$6.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025160SM

WASHER, 3/4

$3.99

$

In Stock, Qty 7

0

7

Simplicity 5020884SM

BEARING, Tapered Roller

$25.99

$

In Stock, Qty 20+

0

8

Simplicity 5021072SM

SEAL, Grease

$7.49

$

In Stock, Qty 5

0

9A

Simplicity 1844914

YOKE, Caster (Serial No. 101-200)
(Superseded to 5044914E)

$

$

Not available

9B

Simplicity 1847049

YOKE, Caster (Serial No. 201 & up)
(Superseded to 5600099)

$

$

Not available

10

Simplicity 5025018X10SM

CAPSCREW, Hex Hd, 1/2-20 x 1-1/4

$2.99

$

In Stock, Qty 20+

0

11

Simplicity 5044913SM

RETAINER, Frame

$6.99

$

In Stock, Qty 13

0

12

Simplicity 5020095SM

GREASE FITTING

$3.99

$

In Stock, only 2 left!

0
