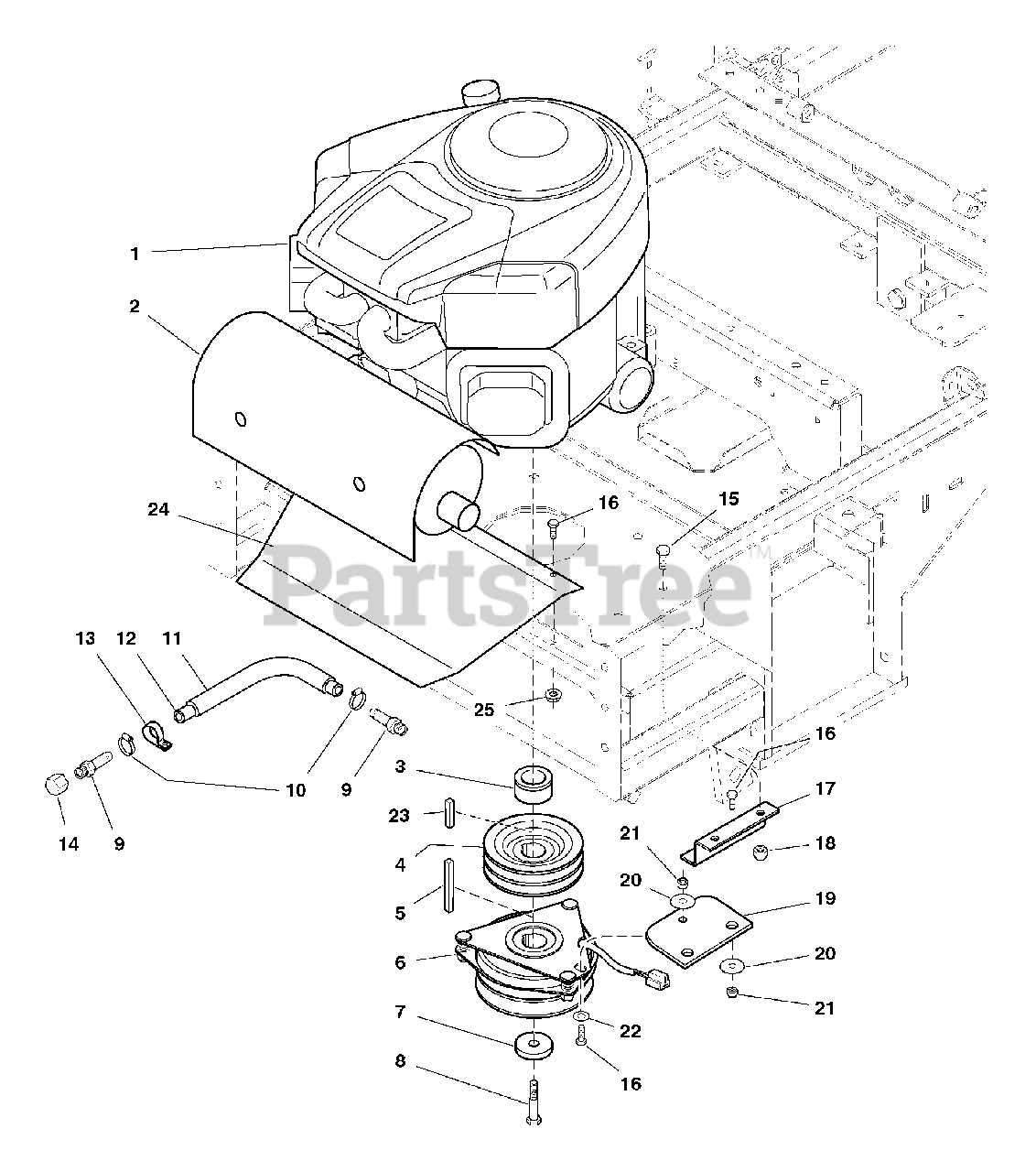

ZT 2561 - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton Engine Group - PTO - Briggs & Stratton - S/N 101 - 540 (7012epgb) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler/Briggs & Stratton

Engine Group - PTO - Briggs & Stratton - S/N 101 - 540 (7012epgb) Parts Diagram

  • Title

1

Simplicity 5022504

ENGINE, 25HP Briggs & Stratton

$

$

Not available

2

Snapper 5022505SM

MUFFLER

$224.99

$

Usually ships in 2-12 days

0

3

Simplicity 5047033SM

CRANKSHAFT SPACER

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 5047075SM

CRANKSHAFT PULLEY

$137.99

$

Usually ships in 2-12 days

0

5

Simplicity 50504079

KEY, 1/4 Sq. x 2-1/2

$

$

Not available

6

Simplicity 5023232SM

ELECTRIC CLUTCH

$744.99

$

Usually ships in 2-12 days

0

7

Simplicity 5045475SM

RETAINER, Clutch

$14.99

$

In Stock, only 1 left!

0

8

Simplicity 5045331SM

CRANKSHAFT BOLT, 7/16 x 1-3/4

$7.49

$

Usually ships in 2-12 days

0

9

Simplicity 5021372SM

FITTING, 3/8NPT - 1/2 Str.

$15.99

$

Usually ships in 2-12 days

0

10

Simplicity 5021392SM

HOSE CLAMP

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 505086212

WIRE LOOM, 12"

$

$

Not available

12

Simplicity 5050857X13SM

HOSE, 13"

$8.49

$

Usually ships in 2-12 days

0

13

Simplicity 5021500SM

CLAMP, Vinyl

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 5021466SM

CAP, 3/8NPT

$6.49

$

Usually ships in 2-12 days

0

15

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0

16

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

17

Simplicity 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025165SM

WASHER, Fender, 5/16

$3.99

$

In Stock, only 2 left!

0

21

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

23

Simplicity 5050407X8SM

KEY, 1/4 Sq. x 1

$3.99

$

In Stock, only 1 left!

0

24

Simplicity 1846483

HEAT SHIELD
(Superseded to 5046483E)

$

$

Not available

25

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
