ZT 2561 F - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler Motion Control Group - Upper (7087mcgu) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

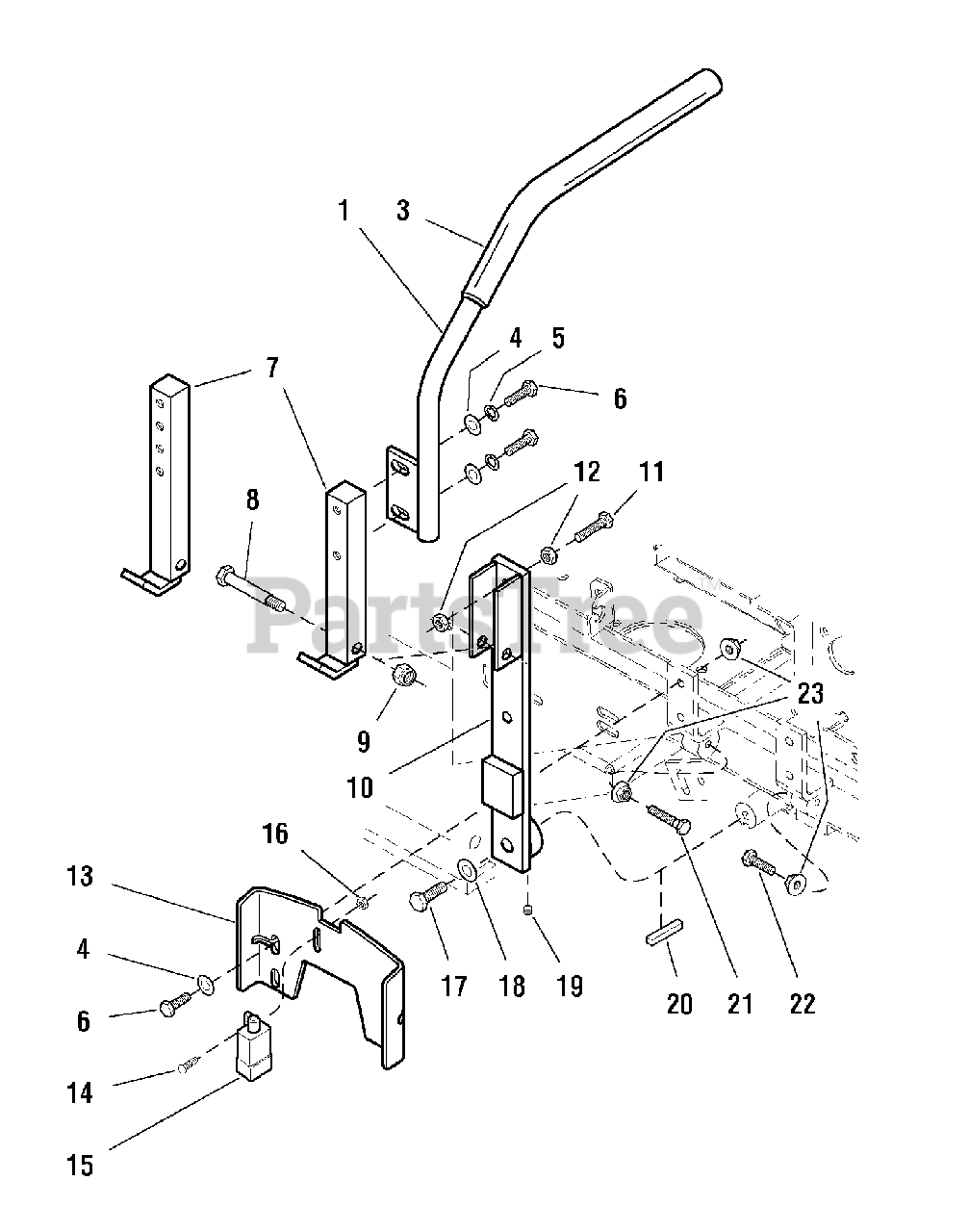

Motion Control Group - Upper (7087mcgu) Parts Diagram

  • Title

1

Simplicity 5045913CSM

MOTION CONTROL LEVER-RH

$

$

Not available

2

Simplicity 5045912CSM

MOTION CONTROL LEVER-LH (not shown)

$96.99

$

Usually ships in 2-12 days

0

3

Simplicity 5022068SM

FOAM GRIP

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 5025170SM

WASHER, Lock, 5/16

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 7

0

7

Simplicity 5049382CSM

CONTROL LEVER BASE (2 holes, S/N: 1000 & below)

$43.99

$

Usually ships in 2-12 days

0

-

Simplicity 5049382CSM

CONTROL LEVER BASE (4 holes, S/N: 1001 & above)

$43.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025013X16SM

CAPSCREW, Hex Hd, 3/8-16 x 2

$4.49

$

In Stock, Qty 6

0

9

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 5046409CSM

CONTROL LEVER MOUNT

$85.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

12

Simplicity 5025032SM

NUT, Hex, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 5045902CSM

NEUTRAL LOCK PLATE

$

$

Not available

14

Simplicity 5025270SM

SCREW, #10-24 x 1

$3.49

$

Usually ships in 2-12 days

0

15

SWITCH (see electrical schematic)

$

$

Not available

16

Simplicity 5025029SM

NUT, Hex, #10-24

$2.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025323SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/4 w/ patch

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

19

Simplicity 50252782

SET SCREW, 5/16-18 x 1/4 w/ patch

$

$

Not available

20

Simplicity 5050407X8SM

KEY, 1/4" x 1

$3.99

$

In Stock, only 1 left!

0

21

Simplicity 5025011X14SM

CAPSCREW, Hex Hd, 5/16-18 x 1-3/4

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
