ZT 2561 F - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler Hydraulic Group (7087hg) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

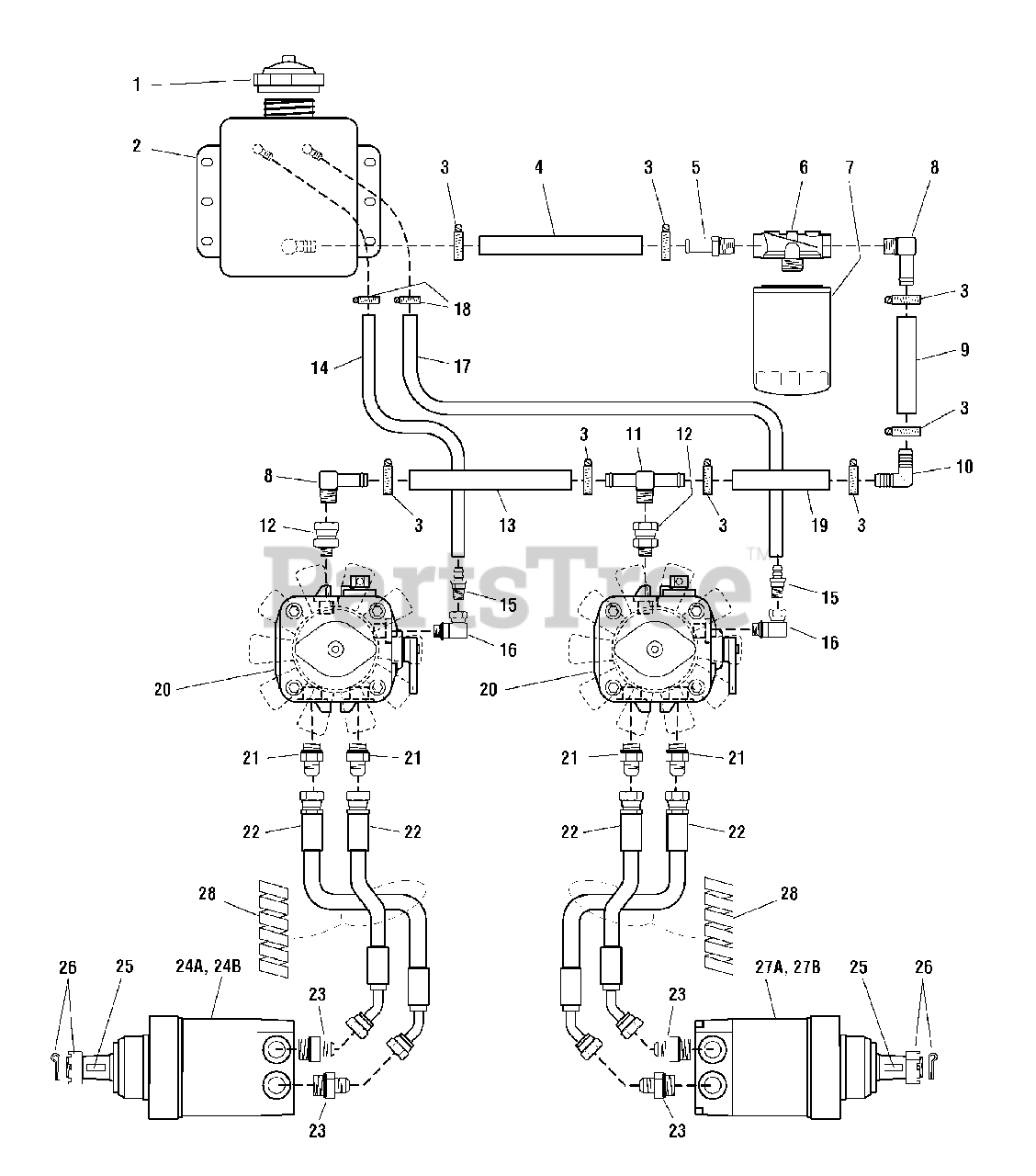

Hydraulic Group (7087hg) Parts Diagram

  • Title

1

Simplicity 5023191SM

CAP

$28.99

$

In Stock, only 1 left!

0

2

Simplicity 5022636SM

RESERVOIR
(Superseded to 5102970YP)

$170.99

$

Usually ships in 2-12 days

0

3

Simplicity 5021164SM

HOSE CLAMP, #10

$3.99

$

In Stock, only 3 left!

0

4

Simplicity 5050933X11

HOSE, Hydraulic, 11"

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 5022635SM

FITTING, 1/2" NPT, Straight

$31.99

$

Usually ships in 2-12 days

0

6

Simplicity 5021356SM

FILTER HEAD

$61.99

$

Usually ships in 2-12 days

0

7

Simplicity 5021357X1SM

FILTER

$

$

Not available

8

Simplicity 5021233SM

FITTING, 1/2" NPT, 90 Deg.

$12.99

$

Usually ships in 2-12 days

0

9

Simplicity 5050933X3P5

HOSE, Hydraulic, 3-1/2"

$

$

Not available

10

Simplicity 5021395SM

FITTING, 5/8", 90 Deg.

$2.49

$

Usually ships in 2-12 days

0

11

Simplicity 5022364SM

FITTING, 1/2" NPT, Tee

$16.99

$

Usually ships in 2-12 days

0

12

Simplicity 5022365SM

FITTING, Hydraulic, Straight Swivel

$15.99

$

Usually ships in 2-12 days

0

13

Simplicity 5050933X12

HOSE, Hydraulic, 12"

$

$

Not available

14

Simplicity 505086016

HOSE, Hydraulic, 16"

$

$

Not available

15

Simplicity 5022106SM

FITTING, 1/4" NPT, Straight

$11.99

$

Usually ships in 2-12 days

0

16

Simplicity 5022052SM

FITTING, Hydraulic, O-Ring, 90 Deg. Swivel

$16.99

$

Usually ships in 2-12 days

0

17

Simplicity 505086024

HOSE, Hydraulic, 24"

$

$

Not available

18

Simplicity 5021392SM

HOSE CLAMP, #6

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 5050933X3

HOSE, Hydraulic, 3"
(Superseded to 5050933X3YP)

$7.49

$

Usually ships in 2-12 days

0

20

Simplicity 5022571SM

HYDRAULIC PUMP w/ FAN

$1341.99

$

Usually ships in 2-12 days

0

*

Simplicity 5022571X1SM

FAN
(Superseded to 5100161X1SM)

$67.99

$

Usually ships in 2-12 days

0

21

Simplicity 5022633SM

FITTING, Hydraulic, O-Ring Adapter

$12.99

$

In Stock, only 3 left!

0

22

Simplicity 5102096SM

HYDRAULIC HOSE ASSEMBLY

$

$

Not available

23

Simplicity 5022634SM

FITTING, Hydraulic, O-Ring Adapter

$15.99

$

In Stock, Qty 8

0

24A

Simplicity 5022661LSM

HYDRAULIC WHEEL MOTOR-LEFT, 18 CI, Complete (includes Ref 25 & 26)(S/N: 877 & below)

$1538.99

$

In Stock, only 1 left!

0

24B

Simplicity 5022660LSM

HYDRAULIC WHEEL MOTOR-LEFT, 15 CI, Complete (includes Ref 25 & 26)(S/N: 878 & above)
(Superseded to 5103117YP)

$1433.99

$

Usually ships in 2-12 days

0

25

Simplicity 5022042X2SM

KEY

$10.99

$

In Stock, only 1 left!

0

26

Simplicity 5220423

NUT & COTTER PIN
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

27A

Simplicity 5022661RSM

HYDRAULIC WHEEL MOTOR-RIGHT, 18 CI, Complete (includes Ref 25 & 26)(S/N: 877 & below)

$1829.99

$

Usually ships in 2-12 days

0

27B

Simplicity 5022660RSM

HYDRAULIC WHEEL MOTOR-RIGHT, 15 CI, Complete (includes Ref 25 & 26)(S/N: 878 & above)

$

$

Not available

28

Simplicity 505083712

PROTECTIVE COIL, 12"

$

$

Not available
