ZT 2561 F - Simplicity Stallion 61" Zero-Turn Mower, 25hp Kohler 61" Mower Deck - Housing, Covers, Spindles & Blades (7087hcsb) Parts Diagram

Stallion 61" Zero-Turn Mower, 25hp Kohler

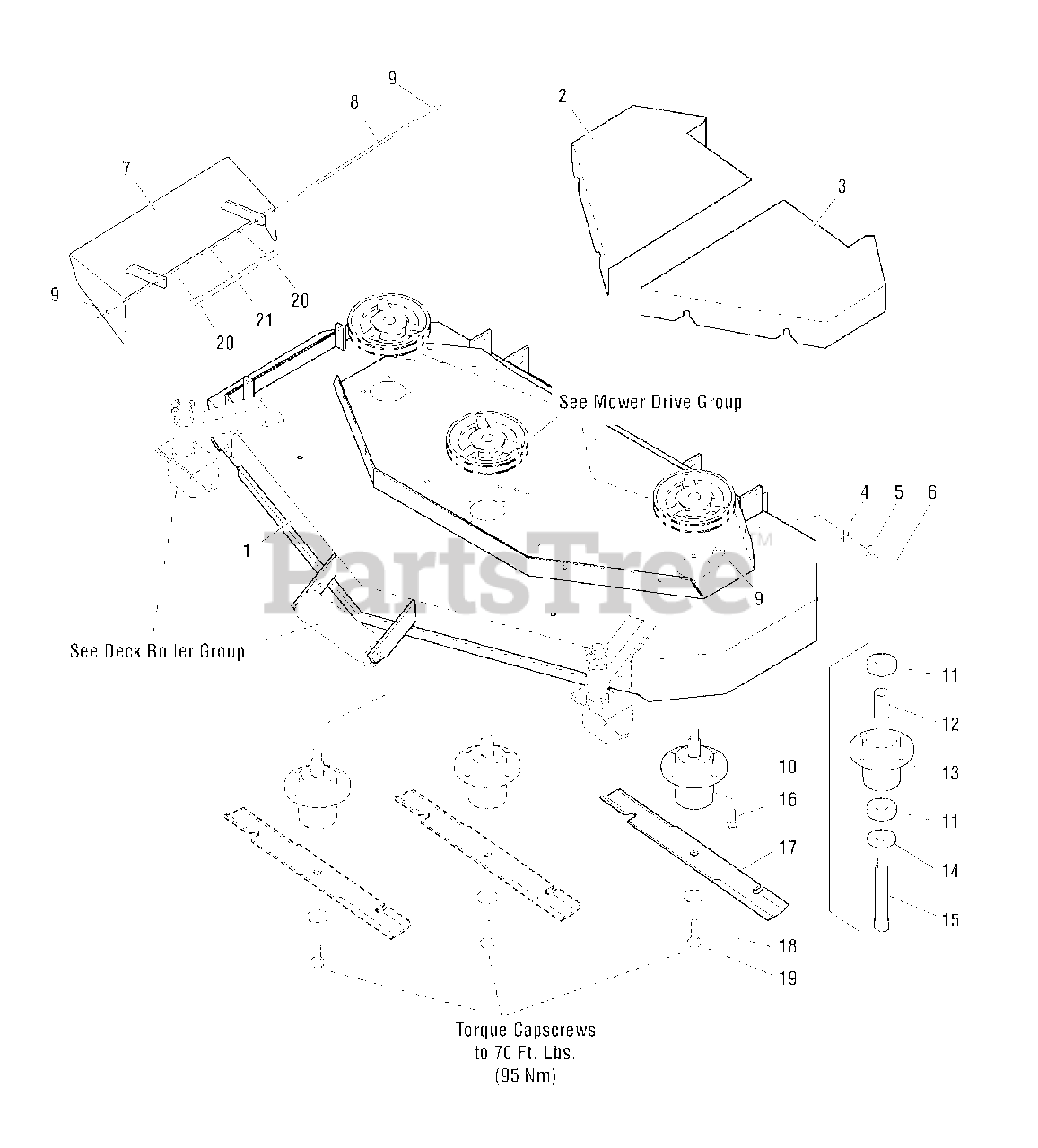

61" Mower Deck - Housing, Covers, Spindles & Blades (7087hcsb) Parts Diagram

  • Title

1

Simplicity 5047751CSM

MOWER HOUSING, 61"

$1907.99

$

Usually ships in 2-12 days

0

2

Simplicity 5047289CSM

SPINDLE COVER-RH

$148.99

$

Usually ships in 2-12 days

0

3

Simplicity 5047290CSM

SPINDLE COVER-LH

$153.99

$

Usually ships in 2-12 days

0

4

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, only 2 left!

0

5

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

7

Simplicity 5047233CSM

DISCHARGE CHUTE

$168.99

$

Usually ships in 2-12 days

0

8

Simplicity 5042555SM

ROD

$10.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

10

* SPINDLE ASSEMBLY, Complete (includes Ref 11-15)

$

$

Not available

11

Simplicity 5061095SM

BEARING, Ball

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

12

Simplicity 5061095SM

SPACER, Bearing

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

13

Simplicity 5061095SM

SPINDLE HOUSING

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

14

Simplicity 5061095SM

TRASH SHIELD

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

15

Simplicity 5061095SM

SPINDLE SHAFT

Note: (Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

16

Simplicity 5023156SM

CAPSCREW, Hex Flange Head, 5/16-18 x 1-1/4

$3.99

$

In Stock, only 1 left!

0

17

Simplicity 5022808ASM

MOWER BLADE

$29.99

$

In Stock, only 3 left!

0

18

Simplicity 5025159SM

WASHER, USS, 5/8
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

19

Simplicity 5025320X14SM

CAPSCREW, Hex Hd, 5/8-11 x 1-3/4
(Superseded to 770136)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1723938SM

SPRING, Torsion

$

$

Not available

21

Simplicity 5045637SM

SPRING SPACER

$11.99

$

Usually ships in 2-12 days

0
