ZT 2548 (2691163-00) - Simplicity 48" Zero-Turn Mower, 25hp Briggs & Stratton Transmission Group Parts Diagram

48" Zero-Turn Mower, 25hp Briggs & Stratton

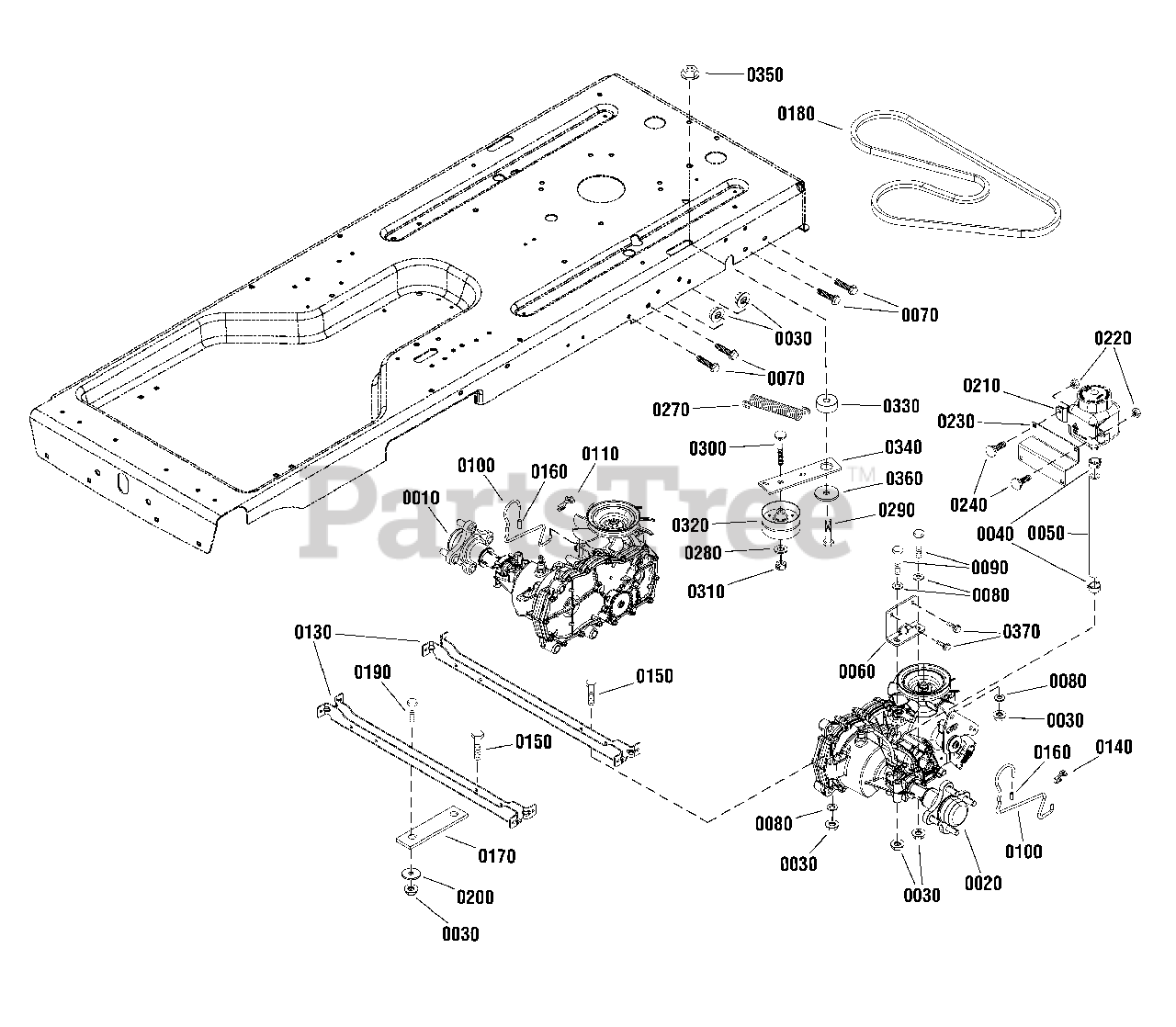

Transmission Group Parts Diagram

  • Title

0010

Simplicity 706114

TRANSAXLE, Hydro Gear, RH

$

$

Not available

0020

Simplicity 706113

TRANSAXLE, Hydro Gear, LH

$1628.99

$

Usually ships in 2-12 days

0

0030

Simplicity 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 5025474SM

CLAMP Hose

$3.49

$

Usually ships in 2-12 days

0

0050

Simplicity 703343

HOSE, Push Lock

$12.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1756690BMYP

BRACKET, Transaxle

$20.99

$

Usually ships in 2-12 days

0

0070

Simplicity 703325

SCREW, Washer Head, 5/16-18 X 3/4
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 703350

WASHER, Flat

$4.49

$

In Stock, only 2 left!

0

0090

Simplicity 703869

CAPSCREW, Hex Head, 5/16-18 X 2 3/4

$6.49

$

Usually ships in 2-12 days

0

0100

Simplicity 7103512YP

ROD, Roll Release

$19.99

$

In Stock, only 1 left!

0

0110

Simplicity 1717024SM

CLIP, Clevis, RH

$7.49

$

In Stock, only 2 left!

0

0130

Simplicity 1756569BMYP

BRACKET, Transaxle

$

$

Not available

0140

Simplicity 1725550SM

CLIP, Clevis, LH

$5.99

$

Usually ships in 2-12 days

0

0150

Simplicity 703177

CAPSCREW, Hex Head, 5/16-18 X 2 1/4

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 7103537YP

CAP

$3.49

$

Usually ships in 2-12 days

0

0170

Simplicity 7104674YP

RUBBER

$

$

Not available

0180

Simplicity 7100102SM

V-BELT, Hydro Drive

$43.99

$

In Stock, Qty 20+

0

0190

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0200

Simplicity 7011763SM

WASHER, Fender, 5/16

$4.49

$

In Stock, only 1 left!

0

0210

Simplicity 5100473SM

RESERVOIR

$40.99

$

Usually ships in 2-12 days

0

0220

Simplicity 703232

NUT, NyLock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0230

Simplicity 7301169BMYP

BRACKET, Tank Expansion

$12.99

$

Usually ships in 2-12 days

0

0240

Simplicity 703576

BOLT, Carriage, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 2 left!

0

0270

Simplicity 1756635YP

SPRING, Extension

$8.49

$

In Stock, only 1 left!

0

0280

Simplicity 703590

WASHER, Flat

$3.99

$

In Stock, Qty 12

0

0290

Simplicity 704669

CAPSCREW, Hex Head,1/2-13 X 1 3/4

$4.49

$

Usually ships in 2-12 days

0

0300

Simplicity 704278

BOLT, Carriage, 3/8-16 X 2

$5.49

$

Usually ships in 2-12 days

0

0310

Simplicity 703347

NUT, Hex, Centerlock, 3/8-16

$4.99

$

In Stock, only 4 left!

0

0320

Simplicity 7100103SM

IDLER, 3.25OD X.391ID X1.63, Backside

$43.99

$

In Stock, Qty 8

0

0330

Simplicity 1756633YP

SPACER, Idler

$8.49

$

Usually ships in 2-12 days

0

0340

Simplicity 1756634BMYP

ARM, Transaxle Idler

$9.49

$

Usually ships in 2-12 days

0

0350

Simplicity 1930644SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, Qty 6

0

0360

Simplicity 704668

WASHER, Flat

$5.49

$

Usually ships in 2-12 days

0

0370

Simplicity 703823

BOLT, Hex Flange, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0
