ZT 2548 (2691163-00) - Simplicity 48" Zero-Turn Mower, 25hp Briggs & Stratton Lift Group - EHOC Parts Diagram

48" Zero-Turn Mower, 25hp Briggs & Stratton

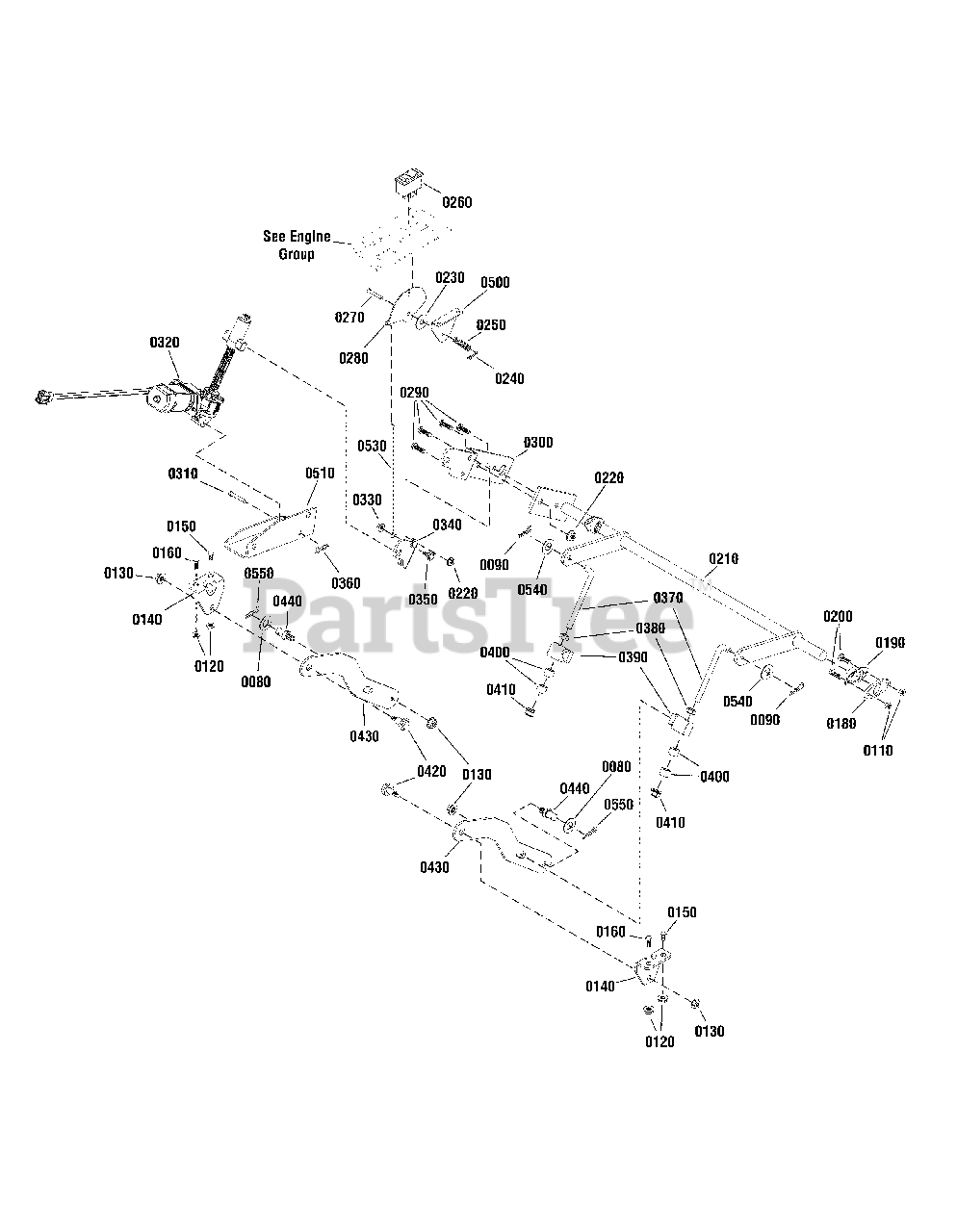

Lift Group - EHOC Parts Diagram

  • Title

0080

Simplicity 1960170SM

WASHER, 1/2" Flat
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0090

Simplicity 7091503SM

HAIR PIN, 3/32 x 1-1/2" YZ

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 7092126SM

NUT, 1/4-20 Hex Center Lock, GR 5
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0120

Simplicity 7091601SM

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0130

Simplicity 015X98MA

NUT, 3/8-16 Hex Flange Center Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0140

Simplicity 7300028BMYP

BRACKET, Deck Hanger

$14.99

$

Usually ships in 2-12 days

0

0150

Simplicity 7091811SM

BOLT, 5/16-18 x 5/8" Hex Flange lock, GR 5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

0160

Simplicity 7027168SM

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0180

Simplicity 7301125BMYP

SPACER, Bearing, 1/4

$12.99

$

In Stock, only 2 left!

0

0190

Simplicity 7026196SM

BEARING, Flange, 3/4

$7.49

$

In Stock, only 2 left!

0

0200

Simplicity 7091495SM

SCREW, 1/4-20 x 3/4, Hex Head Cap, GR 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

0210

Simplicity 1757866BMYP

WELDMENT, Deck Lift

$193.99

$

In Stock, only 1 left!

0

0220

Simplicity 7091619SM

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0230

Simplicity 7023649YP

WASHER, 5/16 Nylon

$4.49

$

In Stock, only 2 left!

0

0240

Simplicity 7090673SM

COTTER PIN, 1/2
(Superseded to 703464)

$4.49

$

In Stock, only 1 left!

0

0250

Simplicity 164X34MA

SPRING, Compression

$5.99

$

In Stock, Qty 14

0

0260

Simplicity 1734141SM

SWITCH, Rocker Electric Height-Of-Cut

$47.99

$

In Stock, Qty 19

0

0270

Simplicity 578309MA

CLEVIS PIN, 1/4

$5.49

$

In Stock, Qty 6

0

0280

Simplicity 7301119BCYP

LEVER, Indicator, Height-Of-Cut

$8.49

$

Usually ships in 2-12 days

0

0290

Simplicity 7091304SM

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

0300

Simplicity 7301104BMYP

BRACKET, Lift, Deck, Primary

$

$

Not available

0310

Simplicity 1668344SM

SHEAR PIN, 1 3/4
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 7103818YP

MOTOR, Actuator, Lift, Deck

$148.99

$

In Stock, Qty 13

0

0330

Simplicity 7091584SM

NUT, 1/4-20 Hex Flange Lock, GR 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0340

Simplicity 7301105BMYP

BRACKET, Lift, Deck, Secondary

$15.99

$

Usually ships in 2-12 days

0

0350

Simplicity 009X54MA

SHOULDER BOLT, 1/4-20 x 3/8

$5.49

$

In Stock, only 1 left!

0

0360

Simplicity 1722460SM

HAIRPIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0370

Simplicity 1734217SM

ROD, Mower Lift (3/8-16 thread)

$14.99

$

In Stock, Qty 5

0

0380

Simplicity 1916950SM

NUT, 3/8-16 Hex
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

0390

Simplicity 1731894SM

TRUNNION

$9.99

$

In Stock, only 3 left!

0

0400

Simplicity 1666294SM

SPACER, .385 ID x .6697 OD x .455 Long

$4.99

$

In Stock, Qty 20+

0

0410

Simplicity 1960687SM

NUT, 3/8-16 Hex Flange
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0420

Simplicity 1732129SM

SHOULDER BOLT, 3/8-16 x .94

$5.99

$

Usually ships in 2-12 days

0

0430

Simplicity 7301098BMYP

BAR, Rear Lift

$28.99

$

In Stock, only 4 left!

0

0440

Simplicity 094067MA

PIN, 3/8-16 Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

0500

Simplicity 7301120BMYP

BRACKET, Indicator, Height-Of-Cut

$9.99

$

Usually ships in 2-12 days

0

0510

Simplicity 7301103BMYP

BRACKET, Motor Mount

$14.99

$

Usually ships in 2-12 days

0

0550

Simplicity 703796

PIN, Hair

$5.49

$

In Stock, only 1 left!

0

0530

Simplicity 7103956YP

ROD, Indicator, Height-Of-Cut

$9.99

$

In Stock, only 1 left!

0

0540

Simplicity 7090122YP

WASHER, 3/8" Flat
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0
