ZT 2548 (2691163-00) - Simplicity 48" Zero-Turn Mower, 25hp Briggs & Stratton Frame Group - 2 Bar Parts Diagram

48" Zero-Turn Mower, 25hp Briggs & Stratton

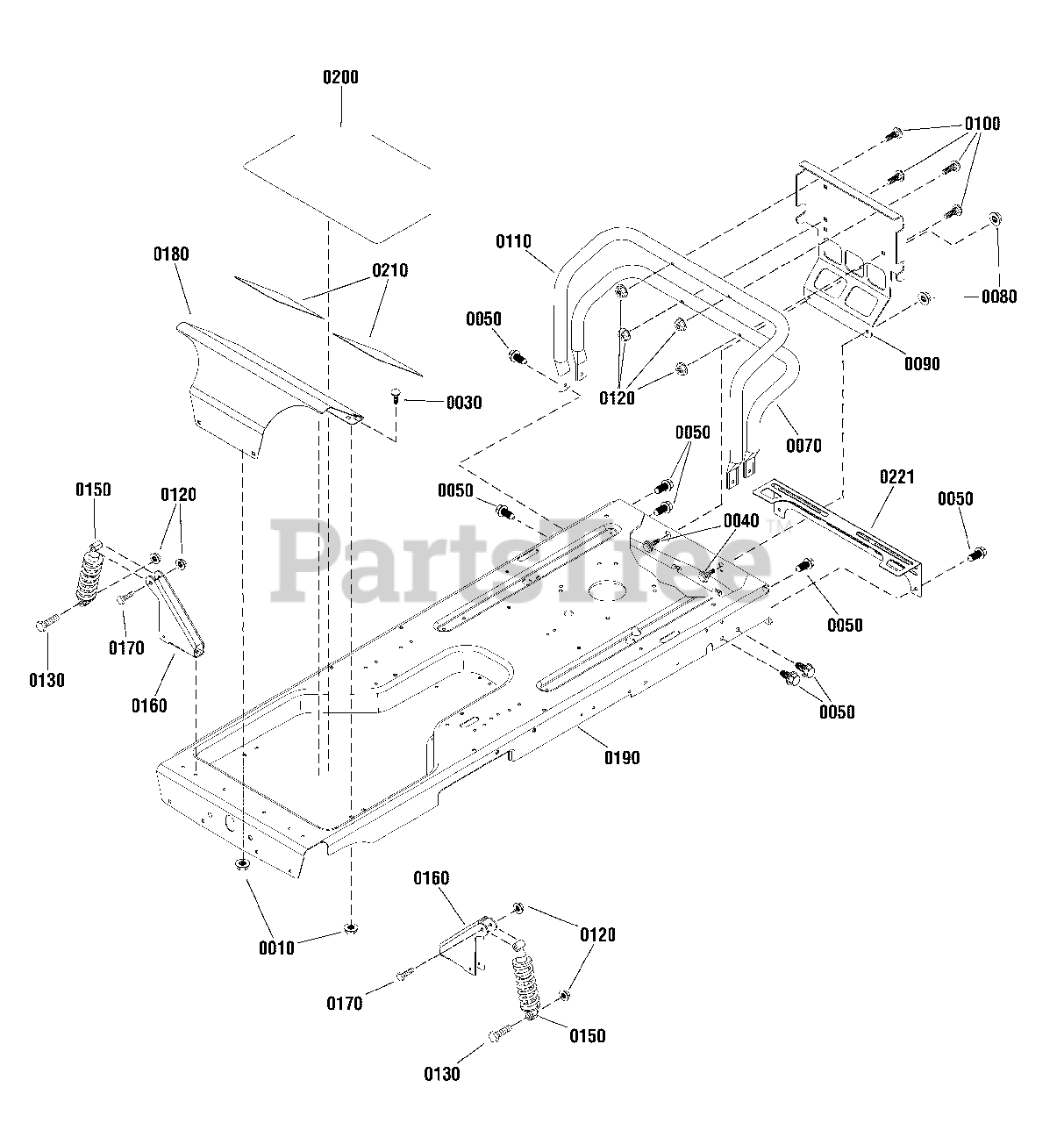

Frame Group - 2 Bar Parts Diagram

  • Title

0010

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0030

Simplicity 703125

BOLT, 5/16-18 x 5/8 Carriage, Grade 5

$3.99

$

In Stock, only 2 left!

0

0040

Simplicity 1716654SM

BOLT, 5/16-18 X 0.75, .50 Shoulder, G5 YZ

$5.49

$

In Stock, only 3 left!

0

0050

Simplicity 1960541SM

SCREW, 5/16-18X0.750, Washer Head Taptite

$3.49

$

Usually ships in 2-12 days

0

0070

Simplicity 1753517BMYP

BUMPER, Lower Tube

$92.99

$

In Stock, only 1 left!

0

0080

Simplicity 703330

NUT, 5/16-18, Hex Flange Whiz-Lock

$4.99

$

In Stock, Qty 14

0

0090

Simplicity 1753572CYP

PLATE

$96.99

$

Usually ships in 2-12 days

0

0100

Simplicity 703175

BOLT, Carriage,5/16-18 - 1 3/4, GR 5

$3.99

$

In Stock, only 2 left!

0

0110

Simplicity 7301123BMYP

TUBE, Bumper, Upper

$142.99

$

Usually ships in 2-12 days

0

0120

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F

$3.49

$

In Stock, Qty 20+

0

0130

Simplicity 7076938SM

SCREW, 5/16-18 x 2-1/4 Hex Head Cap, GR 5
(Superseded to 703177)

$3.49

$

Usually ships in 2-12 days

0

0150

Simplicity 5023213SM

SHOCK

$52.99

$

In Stock, only 1 left!

0

0160

Simplicity 7300079CYP

BRACKET, Shock

$119.99

$

In Stock, only 1 left!

0

0170

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0180

Simplicity 7300141CYP

FOOTREST

$77.99

$

Usually ships in 2-12 days

0

0190

FRAME

Note: (Not a serviceable part)

$

$

Not available

0200

Simplicity 7103830YP

MAT, Floor Pan

$33.99

$

Usually ships in 2-12 days

0

0210

Simplicity 7104571YP

PAD, Foot, Wide

$17.99

$

In Stock, Qty 5

0

0221

Simplicity 1757996BMYP

SHIELD, Heat

$92.99

$

Usually ships in 2-12 days

0
