ZT 2452 (5900928) - Massey Ferguson 52" Zero-Turn Mower Main Frame Group Parts Diagram

52" Zero-Turn Mower

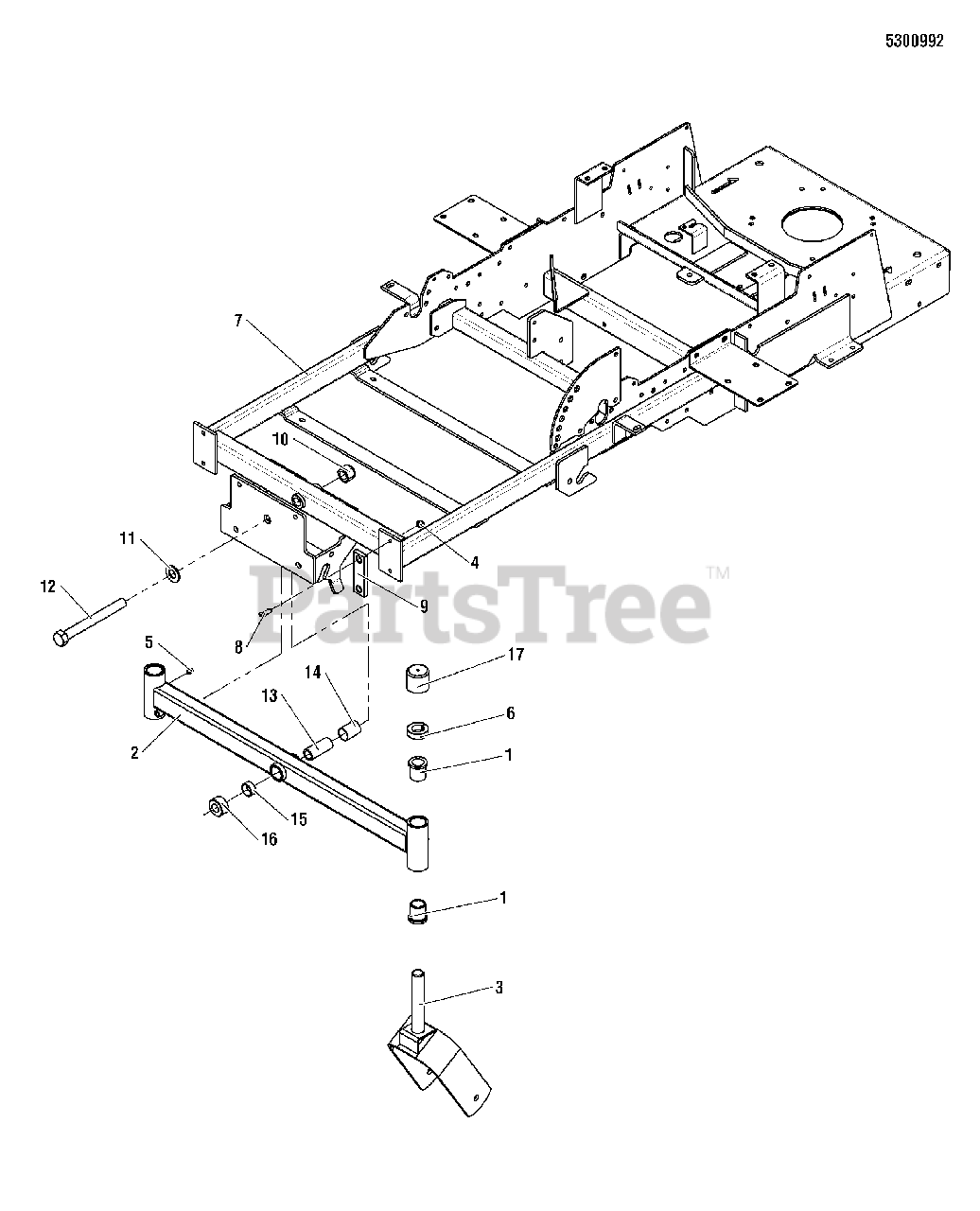

Main Frame Group Parts Diagram

  • Title

1

Simplicity 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

2

Simplicity 5400405D

WELD, PIVOTING FRONT END - RED
(Superseded to 5400405DYP)

$207.99

$

Usually ships in 2-12 days

0

3

Simplicity 5048775D

WELD, CASTER YOKE - RED
(Superseded to 5048775DYP)

$170.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

6

Simplicity 5020602

COLLAR, 1" SPLIT
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

7

Simplicity 5402896D

WELD, MAINFRAME, SNAPPER ZT, RED
(Superseded to 5402896DYP)

$1937.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025594YP

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5102702

PAD, FRICTION, .375 X 1.25 X 4.00
(Superseded to 5102702YP)

$6.99

$

In Stock, only 2 left!

0

10

Simplicity 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

11

Simplicity 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

12

Simplicity 5025265X56

BOLT, 3/4-16 X 7" YZ GD5
(Superseded to 5025265X56SM)

$43.99

$

Usually ships in 2-12 days

0

13

Simplicity 5047489

SPACER, .75 X 1.00 X 2.38
(Superseded to 5047489SM)

$35.99

$

In Stock, Qty 14

0

14

Simplicity 5022852

PIVOT BEARING, 1.00" X 1.125" OD X 1.50"
(Superseded to 5022852SM)

$33.99

$

In Stock, Qty 17

0

15

Simplicity 5100358

PIVOT BEARING, 1.00 X 1.125 OD X .50
(Superseded to 5100358SM)

$18.99

$

In Stock, Qty 14

0

16

Simplicity 5400756

SPACER, .76X 1.50 X .79
(Superseded to 5400756SM)

$9.99

$

Usually ships in 2-12 days

0

17

Simplicity 5023214

CAP, VINYL 1.687 X 1-1/2
(Superseded to 5023214SM)

$6.49

$

In Stock, Qty 16

0
