ZT 2452 (5900928) - Massey Ferguson 52" Zero-Turn Mower 52" Mower Deck Group - Housing, Spindles & Blades Group Parts Diagram

52" Zero-Turn Mower

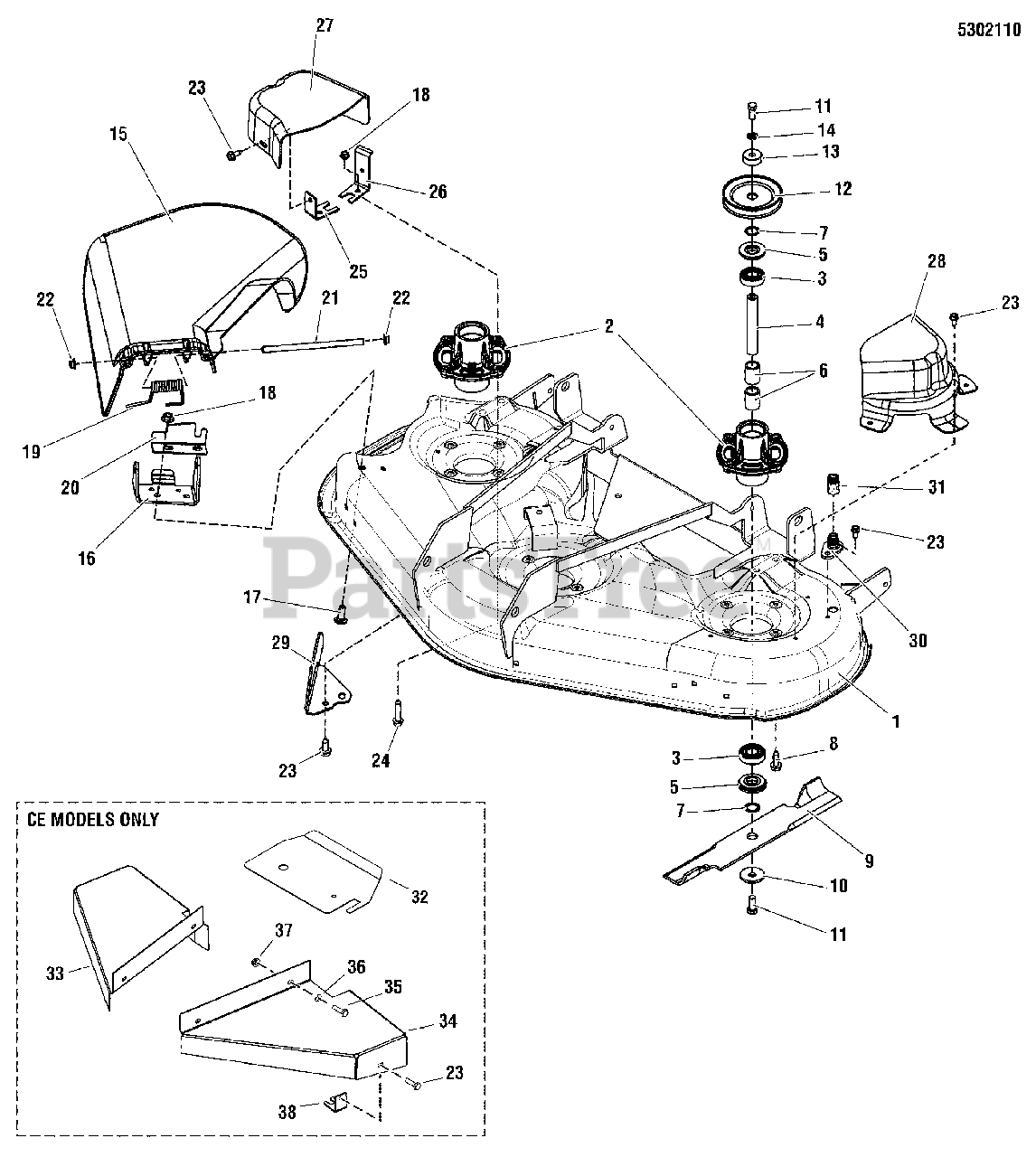

52" Mower Deck Group - Housing, Spindles & Blades Group Parts Diagram

  • Title

1

Simplicity 5406512D

DECK SHELL, W/ DECALS, 52
(Superseded to 5600596YP)

$2392.99

$

Usually ships in 2-12 days

0

2

Simplicity 1737352

HOUSING, SPINDLE, CAST STEEL, MACHINED
(Superseded to 1737352YP)

$43.99

$

In Stock, Qty 9

0

3

Simplicity 1735399

BEARING, BALL, 20MM 46" MWR
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

4

Simplicity 1735326

SHAFT, SPINDLE, 20MM DIA 134.60MM LG
(Superseded to 1735326YP)

$27.99

$

In Stock, only 4 left!

0

5

Simplicity 1735323

SHIELD-ARBOR, 2.050OD 46" MWR
(Superseded to 1735323YP)

$6.99

$

In Stock, Qty 8

0

6

Simplicity 1735328

SPACER, BEARING, PWDR MTL 46" MWR
(Superseded to 1735328YP)

$6.49

$

In Stock, only 3 left!

0

7

Simplicity 1960766

RING, SELF LOCKING 46" MWR
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 1960373

SCREW, HEX WSHR HD TAPTT5/16-18X1.000BLK
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1737252

BLADE, MOWER 18.50LG 52" MWR
(Superseded to 1737252BZYP)

$18.99

$

In Stock, Qty 20+

0

10

Simplicity 1656916

WASHER, SPRING 0.475IDX1.75ODX.156TH BLK
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

11

Simplicity 1920676

CAPSCREW, HEX HD 7/16-14X1.000 G5 BLK
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 12

0

12

Simplicity 1735733

PULLEY, 5.5 OD 11GA SPLIT 52" MWR
(Superseded to 1735733YP)

$20.99

$

In Stock, Qty 5

0

13

Simplicity 1735579

SPACER, LOWER DRIVE 46" MWR
(Superseded to 1735579YP)

$7.49

$

In Stock, only 1 left!

0

14

Simplicity 1918199

LOCKWSHER, SPRING .438 BLK
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1735447

DEFLECTOR-DISCH PLASTIC 46/52 DECKS
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

16

Simplicity 1737418A

HINGE, DEFLECTOR, 52"
(Superseded to 1737418AYP)

$22.99

$

Usually ships in 2-12 days

0

17

Simplicity 1931333

BOLT, RD HD SH SQ NK 5/16-18X0.750 G5 BLK
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

18

Simplicity 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 4 left!

0

19

Simplicity 1736364

SPRING, TORS DEFLECTOR 2.16LG 46" MWR
(Superseded to 1736364YP)

$8.49

$

Usually ships in 2-12 days

0

20

Simplicity 1737359A

PLATE, DEFLECTOR CLOSEOFF
(Superseded to 1737359BMYP)

$8.49

$

In Stock, only 3 left!

0

21

Simplicity 1736366

ROD, DEFLECTOR, YELLOW ZINC
(Superseded to 1736366YP)

$11.99

$

Usually ships in 2-12 days

0

22

Simplicity 7012542

NUT, PUSH, 5/16 BZ
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

23

Simplicity 1664847SM

SCREW, HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1930600

SCREW, HEX WSHR HD TAPTT5/16-18X1.500 BLK
(Superseded to 1930600SM)

$4.99

$

In Stock, Qty 19

0

25

Simplicity 5405736A

BRKT, BELT COVER, SHORT
(Superseded to 5405736AYP)

$11.99

$

In Stock, only 2 left!

0

26

Simplicity 5405734A

BRKT, BELT COVER, LONG W/ TAB
(Superseded to 5405734AYP)

Note: (DOMESTIC MODELS ONLY)

$15.99

$

In Stock, only 2 left!

0

27

Simplicity 1735752

COVER, BELT BLACK POLY RH 46 + 52" MWRS
(Superseded to 1735752YP)

Note: (DOMESTIC MODELS ONLY)

$29.99

$

Usually ships in 2-12 days

0

28

Simplicity 1736505

COVER, BELT LH BLACK POLY 52" MOWER
(Superseded to 1736505YP)

Note: (DOMESTIC MODELS ONLY)

$42.99

$

Usually ships in 2-12 days

0

29

Simplicity 1737279A

BAFFLE, PINCHOFF
(Superseded to 1737279BMYP)

$16.99

$

In Stock, only 1 left!

0

30

Simplicity 1735716

ADAPTER, WASHOUT PORT 46+52" PLASTIC
(Superseded to 1756247YP)

$6.49

$

Usually ships in 2-12 days

0

31

Simplicity 1736898

WASHOUT PORT-CONNECTOR, 46+52" BLK POLY
(Superseded to 1756246YP)

$15.99

$

In Stock, only 1 left!

0

32

Simplicity 5408415DSM

PLATE, BELT GUARD

Note: (CE MODELS ONLY)

$

$

Not available

33

Simplicity 5407454DSM

PLATE, DECK GUARD - RH

Note: (CE MODELS ONLY)

$

$

Not available

34

Simplicity 5408413DSM

PLATE, DECK GUARD - LH

Note: (CE MODELS ONLY)

$

$

Not available

35

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

Note: (CE MODELS ONLY)

$4.99

$

In Stock, only 1 left!

0

36

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

Note: (CE MODELS ONLY)

$4.49

$

In Stock, only 3 left!

0

37

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

Note: (CE MODELS ONLY)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1736518ASM

BRKT, BELT COVER, FRONT
(Superseded to 1736518BMYP)

Note: (CE MODELS ONLY)

$14.99

$

Usually ships in 2-12 days

0
