ZT 2450 (5900777) - Massey Ferguson 50" Zero-Turn Mower Parking Brake Group Parts Diagram

50" Zero-Turn Mower

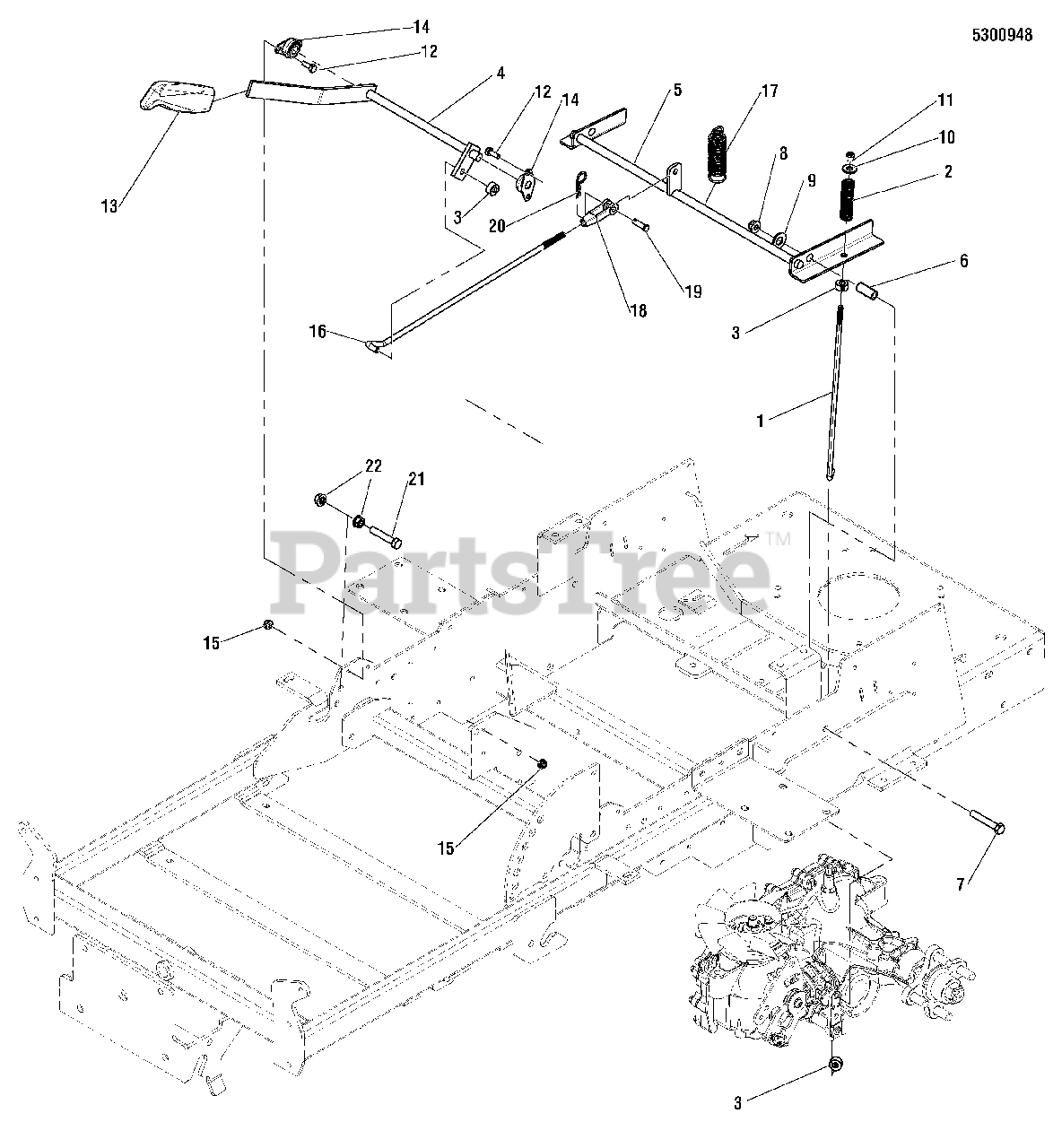

Parking Brake Group Parts Diagram

  • Title

1

Simplicity 5101058

ROD, BRAKE CTRL, LOWER - CONZ
(Superseded to 5101058SM)

$5.49

$

Usually ships in 2-12 days

0

2

Simplicity 5021102

SPRING, COMPRESSION
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

3

Simplicity 5020047

COLLAR, 5/16" SET
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

4

Simplicity 5402883D

WELD, SHAFT, BRAKE HANDLE - RED
(Superseded to 5402883DYP)

$59.99

$

Usually ships in 2-12 days

0

5

Simplicity 5402884D

WELD, BRAKE SHAFT - RED
(Superseded to 5402884DYP)

$142.99

$

Usually ships in 2-12 days

0

6

Simplicity 5044992

SPACER, .38 X .50 X 1.56
(Superseded to 5044992SM)

$5.99

$

In Stock, only 2 left!

0

7

Simplicity 5025013X18

BOLT, 3/8-16 X 2-1/4 GD5 YZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 4 left!

0

8

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

10

Simplicity 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

12

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 3 left!

0

14

Simplicity 5101123

BEARING, 1/2" FLANGED
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 5101116

ROD, PULLER ROD
(Superseded to 5101116SM)

$16.99

$

Usually ships in 2-12 days

0

17

Simplicity 1608395

SPRING, EXTN 1.040 OD X 04.000 LG .105 WIRE D
(Superseded to 1608395SM)

$17.99

$

Usually ships in 2-12 days

0

18

Simplicity 5023323

CLEVIS, 5/16-24, STEEL
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

19

Simplicity 5025213X8

PIN, CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025210

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 5025013X16

BOLT, 3/8-16 X 2 GD 5 YZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

22

Simplicity 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0
