ZT 2450 (5900777) - Massey Ferguson 50" Zero-Turn Mower Engine Group Parts Diagram

50" Zero-Turn Mower

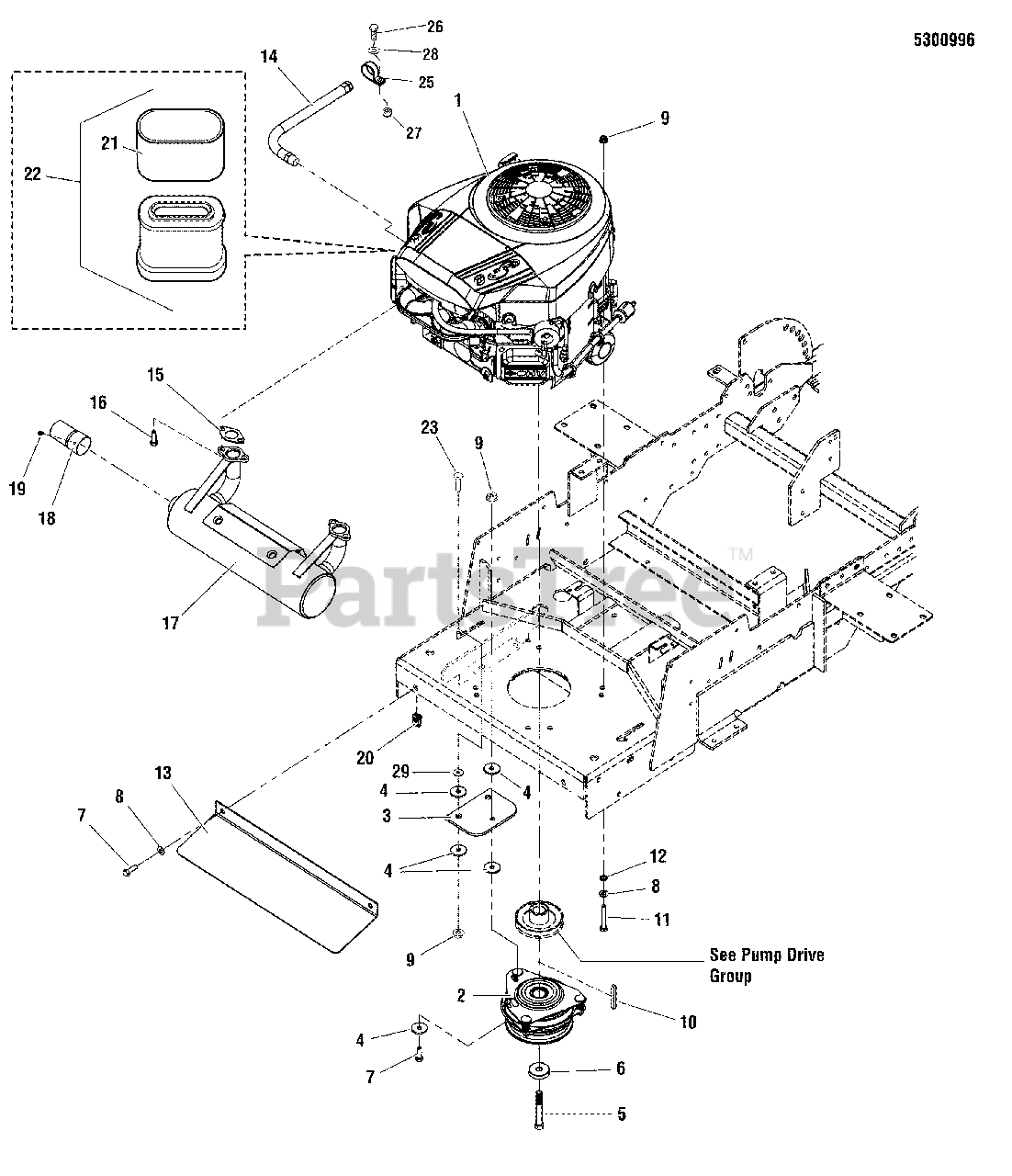

Engine Group Parts Diagram

  • Title

1

* ENGINE, B&S, ELS

$

$

Not available

2

Simplicity 5023100

CLUTCH, #51110100, ELECTRIC, 1" SHAFT
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

3

Simplicity 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

5

Simplicity 5023253

CAPSCREW, CRANKSHAFT, 7/16-20 x 3-1/4"YZ
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

6

Simplicity 5042132

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

8

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5050407X18

KEY, 1/4" SQ. X 2 1/4
(Superseded to 5050407X18SM)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025011X18

BOLT, 5/16-18 X 2-1/4" GD 5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 5403059D

PLATE, HEAT SHIELD - RED
(Superseded to 5403059DYP)

$47.99

$

Usually ships in 2-12 days

0

14

Simplicity 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

15

Simplicity 690970

GASKET, EXHAUST

$4.99

$

In Stock, Qty 20+

0

16

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

17

Simplicity 5100907

MUFFLER, B&S-ELS
(Superseded to 5100907SM)

$

$

Not available

18

Simplicity 5104348YP

EXTENSION, TAILPIPE, 3" - BLK

$14.99

$

Usually ships in 2-12 days

0

19

Simplicity 5021808X8

SCREW
(Superseded to 5021808X8SM)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5022308

BODY CLIP, 5/16-18 X 1/2 DEEP
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

21

Simplicity 792303

PRE CLEANER (SV)

$10.99

$

In Stock, only 1 left!

0

22

Simplicity 792105

AIR CLEANER W/ PRE CLEANER (SV)

Note: (INCLUDES REF NO 21)

$28.99

$

In Stock, Qty 20+

0

23

Simplicity 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 696854

OIL FILTER (SV)

Note: (NOT SHOWN)

$13.99

$

In Stock, Qty 20+

0

25

Simplicity 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 703332

WASHER, 1/4 SAE (5025154)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0
