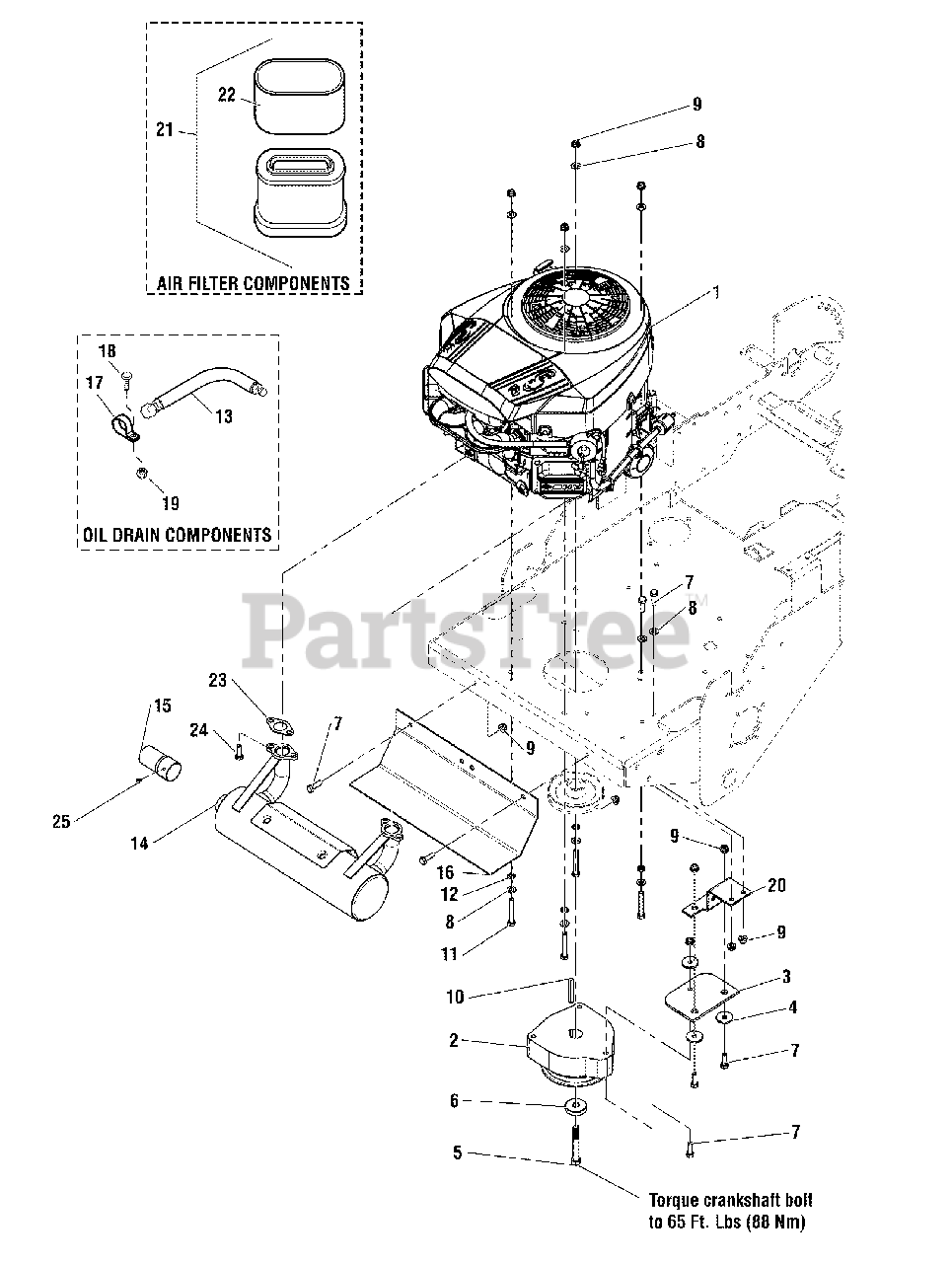

ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton Engine & PTO - 24 HP Briggs & Stratton Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

Engine & PTO - 24 HP Briggs & Stratton Parts Diagram

  • Title

1

Simplicity 1733462

ENGINE-24HP Briggs & Stratton, ELS #44M777-0113-E1

$

$

Not available

2

Simplicity 5023100

CLUTCH, ELECTRIC, 1" SHAFT
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

3

Simplicity 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 5044617

WASHER, .34 X 1.25 X 10GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

5

Simplicity 5023253

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4" YZ
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

6

Simplicity 5042132

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

8

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5050407X18

KEY, 1/4" SQ. X 3-1/2"
(Superseded to 5050407X18SM)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

12

Simplicity 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

13

Simplicity 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

14

Simplicity 5100907

MUFFLER, 22HP B&S - ELS - IS500Z
(Superseded to 5100907SM)

$

$

Not available

15

Simplicity 5104348YP

EXTENSION, TAILPIPE, 3" - BLK

$14.99

$

Usually ships in 2-12 days

0

16

Simplicity 5401071

PLATE, HEAT SHIELD

$

$

Not available

17

Simplicity 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4" GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

19

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 5048226

ANCHOR, CLUTCH

$

$

Not available

21

Simplicity 792105

AIR CLEANER W / PRE CLEANER (SV)

Note: (INCLUDES REF. NO. 22)

$28.99

$

In Stock, Qty 20+

0

22

Simplicity 792303

PRE CLEANER (SV)

$10.99

$

In Stock, only 1 left!

0

23

Simplicity 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 94480

SCREW, SEM HEX HEAD
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

25

Simplicity 5021808X8

SCREW
(Superseded to 5021808X8SM)

$3.99

$

Usually ships in 2-12 days

0
