ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton Control Group Panel Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

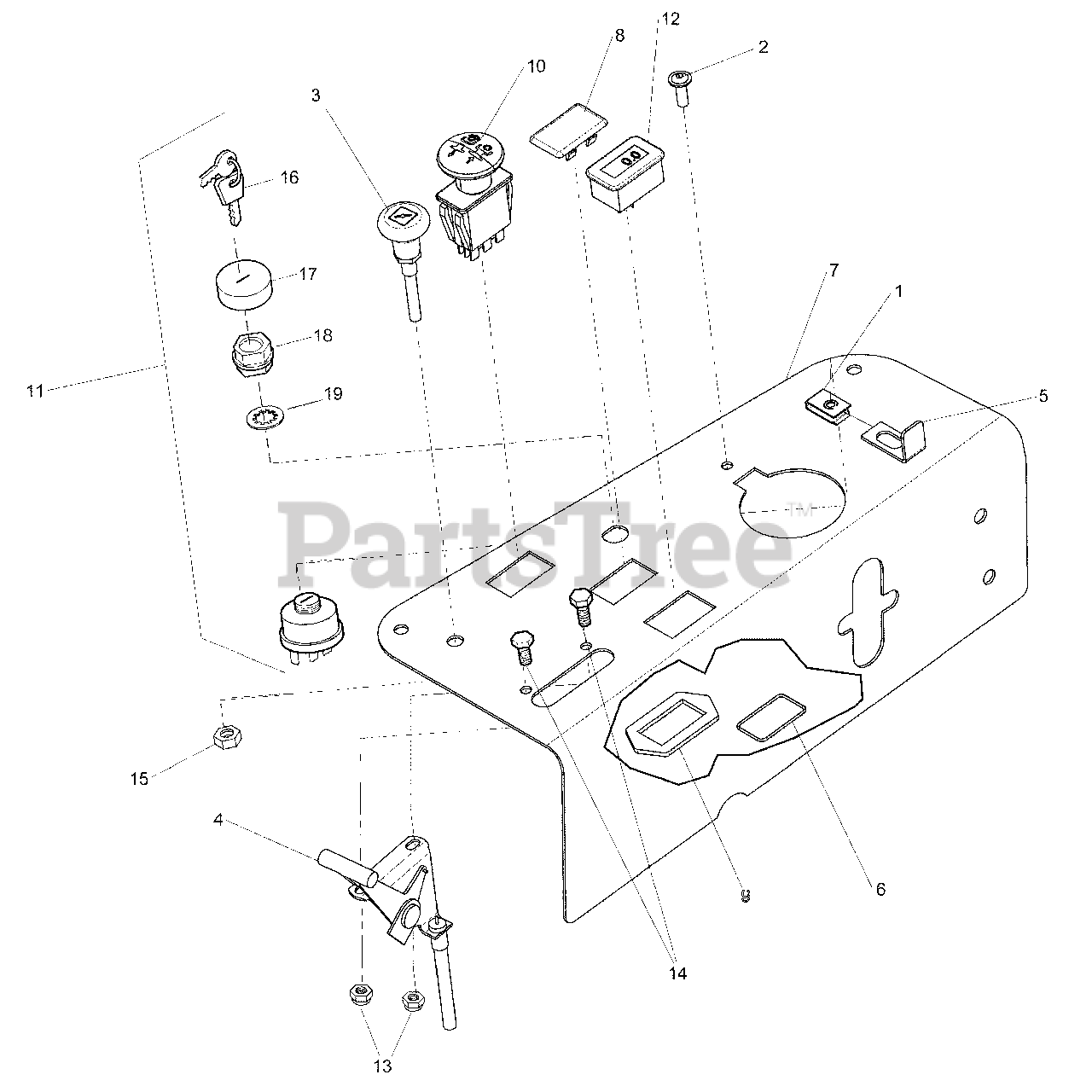

Control Group Panel Parts Diagram

  • Title

1

Simplicity 5022665

BODY CLIP, 1/4-20 X .500 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 5025299X6

SCREW, ALLEN HEAD, 1/4-20 X 3/4"
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 5047143

CHOKE CABLE
(Superseded to 5047143SM)

$56.99

$

Usually ships in 2-12 days

0

4

Simplicity 5047629

CABLE THROTTLE, 48"
(Superseded to 5047629SM)

$62.99

$

Usually ships in 2-12 days

0

5

Simplicity 5049022

BRACKET, LOCK
(Superseded to 5049022ASM)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5400717A

PLATE, CONTROL TANK COVER
(Superseded to 5400717ASM)

$38.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709188

HOLE, PLUG DASH
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 5022222

RING, SWITCH RETAINER, PTO
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

11

Simplicity 1737853

SWITCH ASMY-IGNITION INDAK NO KEYS
(Superseded to 1737853YP)

$35.99

$

In Stock, Qty 20+

0

12

Simplicity 5100978

HOUR METER-DIGITAL
(Superseded to 5102417)

$65.99

$

In Stock, only 1 left!

0

13

Simplicity 5025095

NUT, Hex Nylon Lock, 1/4-20
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

14

Simplicity 5025010X6

BOLT, 1/4-20 x 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1737836

KEYS. BLISTER PK KIDS+MWRS DON'T MIX, USA Models Only
(Superseded to 1737836YP)

Note: (USA MODELS ONLY)

$20.99

$

In Stock, only 1 left!

0

17

Simplicity 1717550

COVER, SWITCH
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 16

0

18

Simplicity 1717549

NUT-HEX FLANGE, 5/8-32 IGN SW DIE CAST
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960547

LOCKWASHER-INTERNAL TOOTH, .625 THIN BLK
(Superseded to 1960547SM)

$4.49

$

In Stock, only 4 left!

0
