ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton Brake Group Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

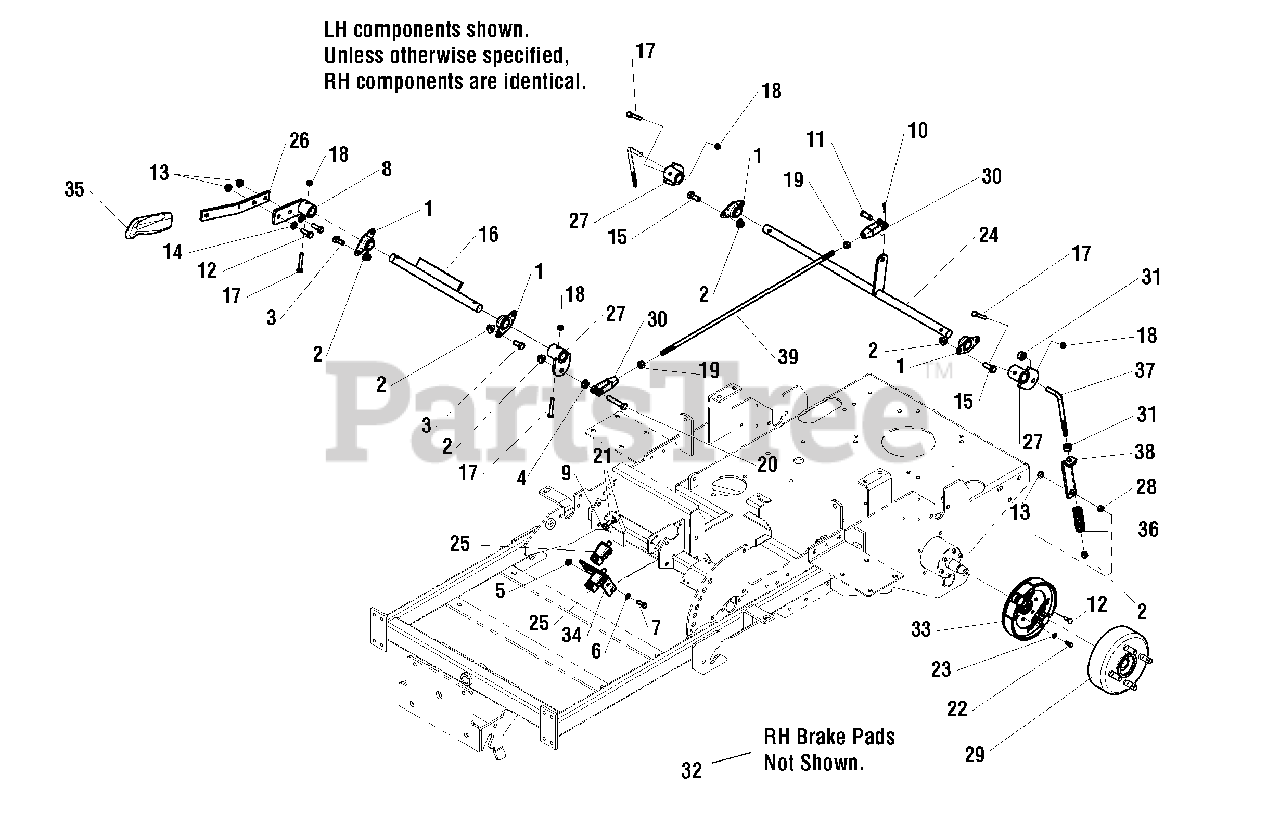

Brake Group Parts Diagram

  • Title

1

Simplicity 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

2

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 5025013X6

BOLT, 3/8-16 X 3/4" GD5
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5048401D

WELD, MOUNT BRAKE LEVER
(Superseded to 5048401DYP)

$49.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025058X16

BOLT, 3/8-16 X 2" GD 5 TFL CZ
(Superseded to 5025058X16SM)

$2.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025203X6

PIN, COTTER, 1/8" X 3/4"
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 3 left!

0

11

Simplicity 5025214X8

PIN, CLEVIS, 3/8" X 1"
(Superseded to 5025214X8FS)

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

13

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Simplicity 5025075X6

BOLT, 3/8-16 X 3/4", ALLEN BUTTON
(Superseded to 5025075X6SM)

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 5048163D

WELD, SHAFT BRAKE LEVER
(Superseded to 5048163DYP)

$25.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025010X12

BOLT, 1/4-20 X 1-1/2" GD5
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025287

NUT, 1/4-20 HEX SIDE LOCK
(Superseded to 5025287SM)

$2.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025035

NUT, HEX 3/8-24
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5025013X16

BOLT, 3/8-16 X 2" GD5
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 5025128

NUT, 3/8-16 HEX LG. SERR FLG
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

22

Simplicity 5023215

BOLT, M6-1.0 X 14MM
(Superseded to 5023215SM)

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025169

WASHER, 1/4" LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5048166D

WELD, SHAFT, REAR BRAKE
(Superseded to 5048166DYP)

$64.99

$

Usually ships in 2-12 days

0

25

Simplicity 7022886YP

SWITCH, DP NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

26

Simplicity 5045619D

HANDLE, BRAKE LEVER
(Superseded to 5045619DYP)

$18.99

$

Usually ships in 2-12 days

0

27

Simplicity 5045618D

WELD, PIVOT LINKAGE MOUNT
(Superseded to 5045618DYP)

$30.99

$

Usually ships in 2-12 days

0

28

Simplicity 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

29

Simplicity 5023094

DRUM, BRAKE, 4-BOLT
(Superseded to 5102903YP)

$243.99

$

In Stock, only 1 left!

0

30

Simplicity 5021171

CLEVIS, 3/8-24 PLASTIC
(Superseded to 5021171SM)

$15.99

$

Usually ships in 2-12 days

0

31

Simplicity 5010546

COLLAR, 3/8" SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

32

Simplicity 5023106

BRAKE ASSEMBLY, RH
(Superseded to 5102904YP)

Note: (Not Shown)

$176.99

$

Usually ships in 2-12 days

0

33

Simplicity 5023188

BRAKE ASSEMBLY, LH
(Superseded to 5023188SM)

$188.99

$

Usually ships in 2-12 days

0

34

Simplicity 5045621D

BRACKET, SWITCH MOUNT
(Superseded to 5045621DYP)

$9.49

$

Usually ships in 2-12 days

0

35

Simplicity 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 1 left!

0

36

Simplicity 5022361

SPRING, BRAKE
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

37

Simplicity 5047091

ROD, BRAKE ADJUSTMENT
(Superseded to 5047091SM)

$13.99

$

Usually ships in 2-12 days

0

38

Simplicity 5047084A

LINK, BRAKE LOCK - BLK
(Superseded to 5047084AYP)

$21.99

$

Usually ships in 2-12 days

0

39

Simplicity 5042553

ROD, BRAKE ENGAGEMENT 36"
(Superseded to 5042553SM)

$11.99

$

Usually ships in 2-12 days

0
