ZT 2450 (5900728) - Massey Ferguson 50" Zero-Turn Mower, 24hp Briggs & Stratton 50" Mower Deck - Belt & Idler Group Parts Diagram

50" Zero-Turn Mower, 24hp Briggs & Stratton

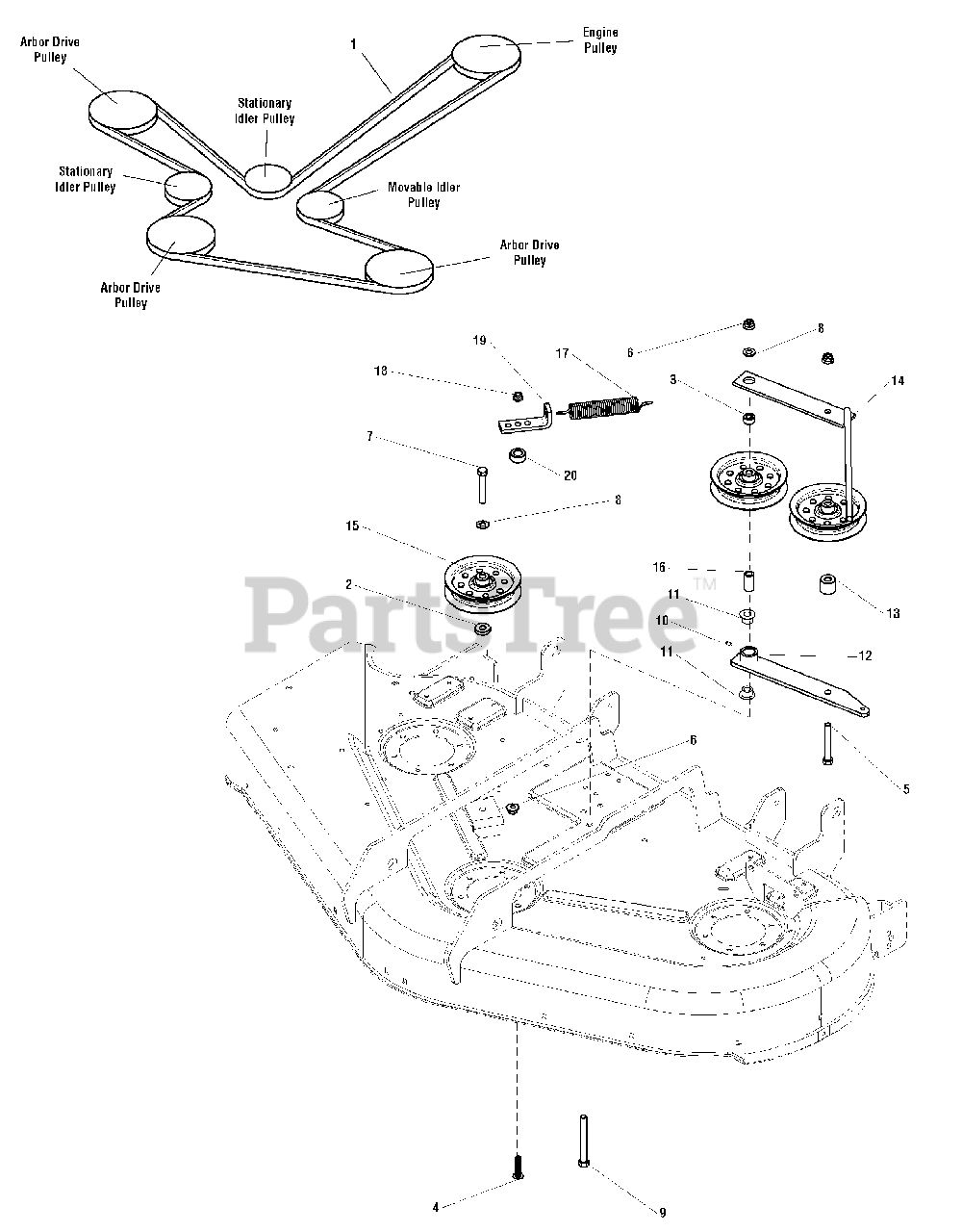

50" Mower Deck - Belt & Idler Group Parts Diagram

  • Title

1

Simplicity 5023255

BELT (155" E. L. For 50" Deck)
(Superseded to 5023255SM)

$91.99

$

Usually ships in 2-12 days

0

1

Simplicity 5023256

BELT (151" E. L. For 44" Deck)
(Superseded to 5023256SM)

$108.99

$

In Stock, Qty 19

0

2

Simplicity 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

3

Simplicity 5044933

SPACER, .39 X .75 X .38
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

4

Simplicity 5023157

BOLT, 5/16-18 X 1-1/2" FLANGE
(Superseded to 5023157SM)

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 5020095

FITTING, Grease
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 1676148

BUSHING, 5/8 X 3/4 X 13/32, POWDER METAL
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 20+

0

12

Simplicity 5400398D

ASSM, IDLER ARM 44" SIMPLICITY
(Superseded to 5400398DYP)

$88.99

$

Usually ships in 2-12 days

0

13

Simplicity 5047125

SPACER, .39 X 1.00 X .88
(Superseded to 5047125SM)

$7.99

$

In Stock, only 2 left!

0

14

Simplicity 5400402

WELD, MOUNT, IDLER, TENSION
(Superseded to 5400402DYP)

$

$

Not available

15

Simplicity 5049003

ASSM, PULLEY IDLER
(Superseded to 5049003SM)

$53.99

$

Usually ships in 2-12 days

0

16

Simplicity 1674669

Spacer
(Superseded to 1674669SM)

$11.99

$

In Stock, Qty 20+

0

17

Simplicity 1715435

SPRING, EXTEN, 1.0 OD, 6" LG, .118
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

18

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5048383D

ANCHOR, SPRING
(Superseded to 5048383DYP)

$17.99

$

Usually ships in 2-12 days

0

20

Simplicity 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0
