ZT 2446 (2691039-00) - Simplicity 46" Zero-Turn Mower, 24hp Briggs & Stratton Seat, Body & Fuel Tank Group Parts Diagram

46" Zero-Turn Mower, 24hp Briggs & Stratton

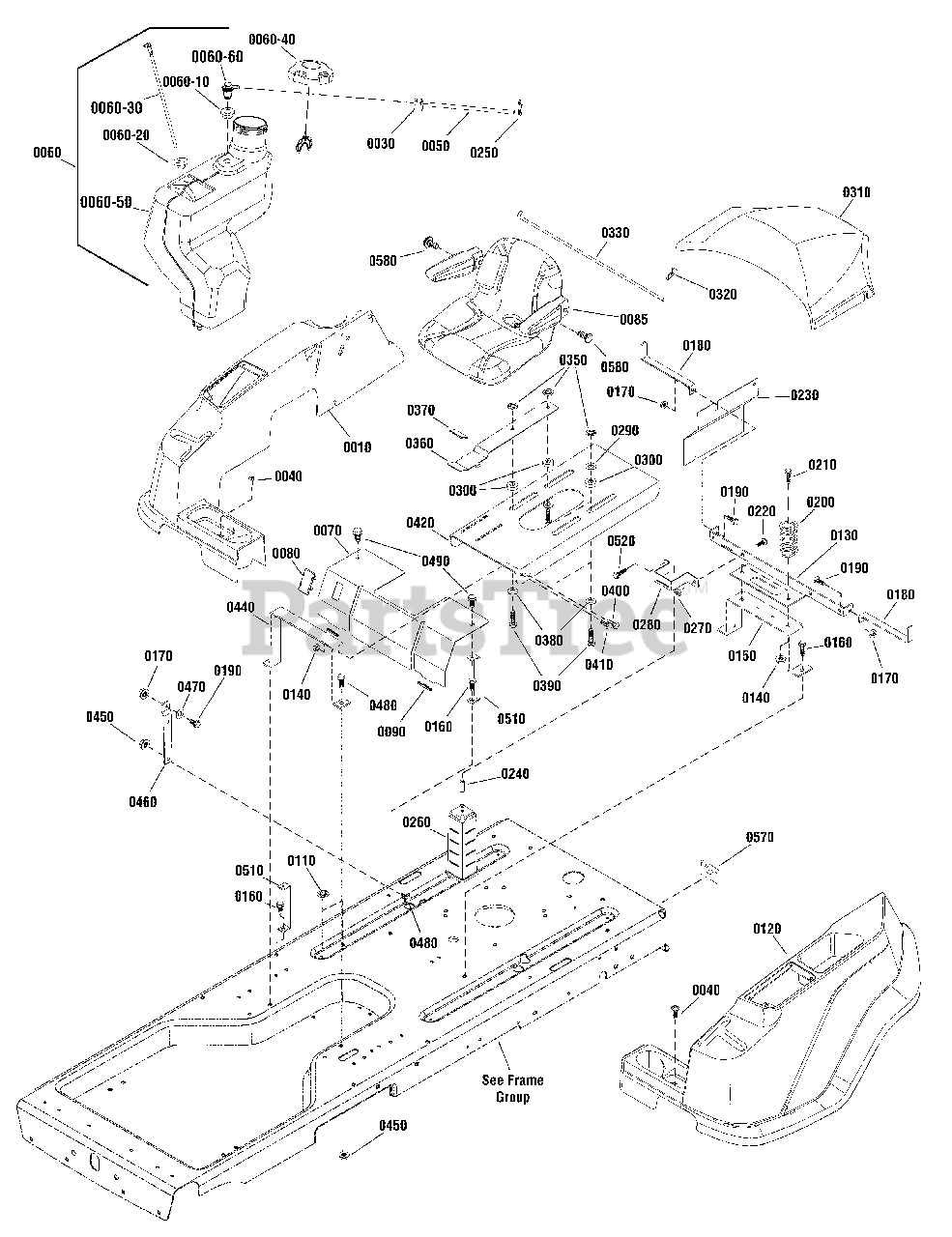

Seat, Body & Fuel Tank Group Parts Diagram

  • Title

0010

Simplicity 7103775YP

FENDER, RH

$347.99

$

Usually ships in 2-12 days

0

0030

Simplicity 7105075YP

CLAMP, Hose

$6.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7091246YP

SCREW, PHST, Torx, 1/4C X 3/4
(Superseded to 770003)

$3.99

$

In Stock, Qty 8

0

0050

Simplicity 7200141YP

HOSE, Vapor

$12.99

$

Usually ships in 2-12 days

0

0060

Simplicity 7104646YP

TANK ASSEMBLY, Emissions

$292.99

$

Usually ships in 2-12 days

0

0060-10

Simplicity 799624

GROMMET

$8.99

$

In Stock, Qty 15

0

0060-20

Simplicity 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 20+

0

0060-30

Simplicity 7103815YP

ELBOW ASSEMBLY, Pickup Tube
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

0060-40

Simplicity 7104639YP

CAP, Fuel

$48.99

$

Usually ships in 2-12 days

0

0060-50

*TANK, Fuel

Note: (Not a serviceable part, order Ref. No. 0060)

$

$

Not available

0060-60

Simplicity 7104638YP

REMOTE VENT ASSEMBLY, No Valve

$

$

Not available

0070

Simplicity 7301216BZYP

COVER, Battery, W/BRACKET Holes

$27.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1722611SM

PLUG

$6.99

$

In Stock, only 1 left!

0

0085

Simplicity 1754213YP

SEAT, 15" Back
(Superseded to 84003801)

$372.99

$

Usually ships in 2-12 days

0

0090

Simplicity 7104514YP

STRIP, Trim

$3.49

$

Usually ships in 2-12 days

0

0110

Simplicity 7013847YP

RETAINER, Bolt, 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 7103776YP

FENDER, LH

$302.99

$

Usually ships in 2-12 days

0

0130

Simplicity 7301107BMYP

BRACKET, Support

$26.99

$

Usually ships in 2-12 days

0

0140

Simplicity 7091575SM

NUT, Hex Lock, 5/16-18 GR5
(Superseded to 703164)

$3.49

$

In Stock, Qty 17

0

0150

Simplicity 7043316BMYP

BRACKET, Seat Support

$19.99

$

Usually ships in 2-12 days

0

0160

Simplicity 7090815YP

SCREW, HWST, 3/8C X 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

0170

Simplicity 7091298YP

NUT, 5/16-18 3B Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 7301101BMYP

BRACKET, Fender Support

$11.99

$

Usually ships in 2-12 days

0

0190

Simplicity 7027168SM

SCREW, Hex Head Cap, 5/16C X 1, GR5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7103425YP

SPRING, Compression

$17.99

$

Usually ships in 2-12 days

0

0210

Simplicity 7091591SM

BOLT, Hex Flange Lock, 5/16C X 1, GR5
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

0220

Simplicity 7091530SM

BOLT, Short Neck Carriage, 1/4C X, 3/4 GR5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0230

Simplicity 7301126BMYP

PLATE, Side, RH

$26.99

$

Usually ships in 2-12 days

0

0240

Simplicity 7014361YP

CAP, Lift Rod

$4.49

$

Usually ships in 2-12 days

0

0250

Simplicity 795230

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

0260

Simplicity 7101425YP

CANISTER

$45.99

$

In Stock, only 1 left!

0

0270

Simplicity 703232

NUT, 1/4-20, Nylock

$4.49

$

In Stock, Qty 20+

0

0280

Simplicity 7301099BZYP

BRACKET, Canister

$16.99

$

Usually ships in 2-12 days

0

0290

Simplicity 7011763SM

WASHER, Fender, 5/16

$4.49

$

In Stock, only 4 left!

0

0300

Simplicity 7103920YP

SPACER, Adjustable Seat

$3.99

$

Usually ships in 2-12 days

0

0310

Simplicity 7103777YP

COVER, Engine

$68.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0330

Simplicity 7103998YP

ROD, Hood Pivot

$47.99

$

Usually ships in 2-12 days

0

0350

Simplicity 7011791SM

RETAINER, Bolt, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

0360

Simplicity 7103673BMYP

LATCH, Seat

$18.99

$

Usually ships in 2-12 days

0

0370

Simplicity 885215YP

COVER, Seat Adjustment Lever

$4.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0390

Simplicity 1933689SM

SCREW, Flanged Hex Whiz Lock 5/16-18 X1 1/2

$4.49

$

Usually ships in 2-12 days

0

0400

Simplicity 7015761YP

BOLT, Shoulder, 5/16C X .454
(Superseded to 703839)

$5.49

$

In Stock, only 2 left!

0

0410

Simplicity 7091198SM

SCREW, Hex Washer Self Tapping, 3/8C X 5/8

$4.49

$

Usually ships in 2-12 days

0

0420

Simplicity 7301095BMYP

PLATE, Adjustable Seat

$53.99

$

Usually ships in 2-12 days

0

0440

Simplicity 7301070BMYP

BRACKET, Seat

$20.99

$

Usually ships in 2-12 days

0

0450

Simplicity 1931211SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0460

Simplicity 7301110BMYP

BRACKET, Fuel Tank Support

$11.99

$

Usually ships in 2-12 days

0

0470

Simplicity 017X47MA

WASHER, Flat
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

0480

Simplicity 7091086YP

SCREW, Hex Head Cap, 3/8C X 3/4, GR5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1925003SM

SCREW, Hex Washer Head Tap Tite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

0510

Simplicity 7301217BZYP

BRACKET, Battery Cover

$12.99

$

Usually ships in 2-12 days

0

0520

Simplicity 025X15MA

SCREW, Hex Washer Head Rolled Thread, 3/8-16 X 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

0570

Simplicity 1756161YP

DECAL, EVAP
