ZT 2446 (2691039-00) - Simplicity 46" Zero-Turn Mower, 24hp Briggs & Stratton 46" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

46" Zero-Turn Mower, 24hp Briggs & Stratton

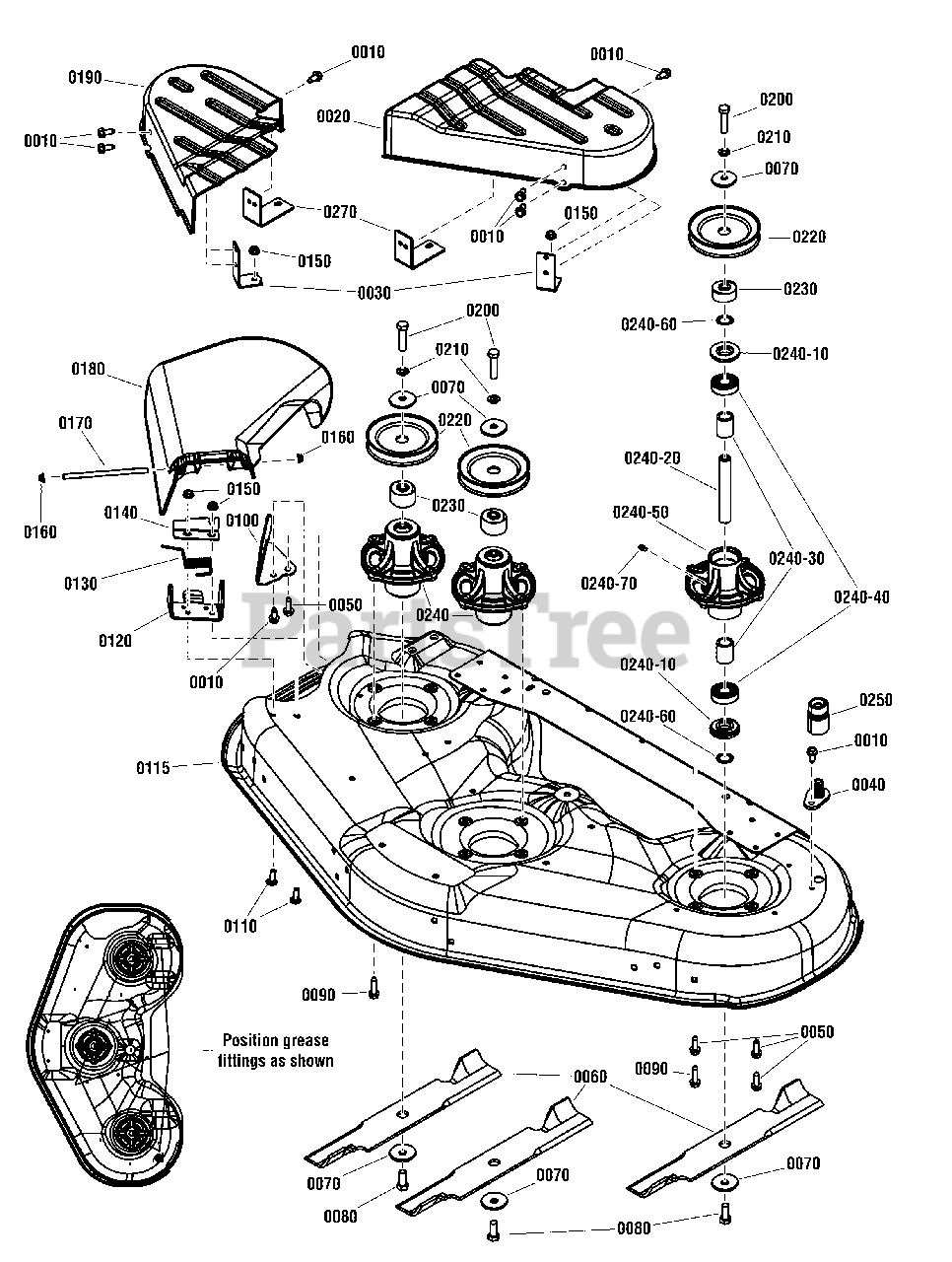

46" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

  • Title

0010

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

Note: (Was 1664847 or 80002741)

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 7104697YP

COVER, Spindle, 46/52 Deck, LH 285Z

$55.99

$

In Stock, only 1 left!

0

0030

Simplicity 7301134BMYP

BRACKET, 46 / 52 Cover Mounting

$

$

Not available

0040

Simplicity 1735716YP

ADAPTER, Washout Port, 46+52, Plastic
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1960373SM

SCREW, 5/16-18X1.0, Hex Washer Head, Taptite, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0060

Simplicity 1737228YP

BLADE, Mower, 16.13 Long, 46 Deck
(Superseded to 1737228BZYP)

$21.99

$

In Stock, Qty 20+

0

0070

Simplicity 1656916SM

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black

$7.49

$

In Stock, Qty 20+

0

0080

Simplicity 1920676SM

SCREW, 7/16-14 x 1 Hex Head Cap, GR 5, Black

$5.49

$

In Stock, Qty 12

0

0090

Simplicity 703167

SCREW, 5/16-18 x 1-1/4 Hex Washer Head Self-Tap

Note: (Was 7091151 or 7091524)

$3.99

$

In Stock, only 3 left!

0

0100

Simplicity 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0110

Simplicity 1931334SM

BOLT, 5/16-18 x 7/8 Carriage, Short Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

0115

Simplicity 7400307CYP

HOUSING, 46" Deck, Roller

$

$

Not available

0120

Simplicity 1736365BMYP

PIVOT, Hinge

$12.99

$

In Stock, only 1 left!

0

0130

Simplicity 1736364YP

SPRING, Torsion, Deflector, 2.16 LG, 46 Mwr

$8.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1737359BMYP

PLATE, Deflector Closeoff

$8.49

$

In Stock, only 3 left!

0

0150

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

Note: (Was 1931277 or 80002728)

$5.49

$

In Stock, Qty 20+

0

0160

Simplicity 7012542YP

NUT, 5/16 Push, BZ
(Superseded to 704028)

$5.49

$

In Stock, only 3 left!

0

0170

Simplicity 1736366YP

ROD, Deflector, Clear/Zinc

$11.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1735447YP

DEFLECTOR, Discharge, Plastic 46/52 Decks
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

0190

Simplicity 7104696YP

COVER, Spindle, 46/52 Deck RH 285Z

$55.99

$

In Stock, only 1 left!

0

0200

Simplicity 703171

SCREW, 7/16-14 X 1.750, Hex Head Cap, GR5, Clear/Zinc

Note: (Was 1923027 or 80003715)

$3.99

$

In Stock, Qty 6

0

0210

Simplicity 1918199SM

LOCKWASHER, 7/16, Spring, Black
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0220

Simplicity 1735686YP

PULLEY, 4.6 OD, 11 GA Split 46 Mower

$19.99

$

In Stock, only 2 left!

0

0230

Simplicity 1736445YP

SPACER, Pulley, Powdered Metal

$13.99

$

In Stock, only 1 left!

0

0240

Simplicity 7502270YP

SPINDLE ASSEMBLY, Cast Iron (Reference Spindle Assembly Group)

$

$

Not available

0240-10

Simplicity 1735323YP

SHIELD, Arbor, 2-1/16 OD
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0240-20

Simplicity 1735326YP

SHAFT, Spindle 20MM Dia., 134.60 MM Long
(Superseded to 1760276YP)

$27.99

$

In Stock, only 4 left!

0

0240-30

Simplicity 1735328YP

SPACER, Bearing Powdered Metal

$6.49

$

In Stock, only 3 left!

0

0240-40

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0240-50

Simplicity 1737352YP

HOUSING, Spindle, Cast Iron (Machined) w/Grease Fitting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 8

0

0240-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0240-70

Simplicity 1704314SM

LUBE FITTING, .250 Drive Type, Ball Check, Yel
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0250

Simplicity 1736898YP

CONNECTOR, Washout Port 46/52 Black Poly
(Superseded to 1756246YP)

$15.99

$

In Stock, only 1 left!

0

0270

Simplicity 7301179BMYP

BRACKET, Rear Deck Cover Support 285Z

$13.99

$

Usually ships in 2-12 days

0
