ZT 2400 (2691328-00) - Massey Ferguson 52" Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton Transmission Group Parts Diagram

52" Zero-Turn Mower, Fab Deck, 25hp Briggs & Stratton

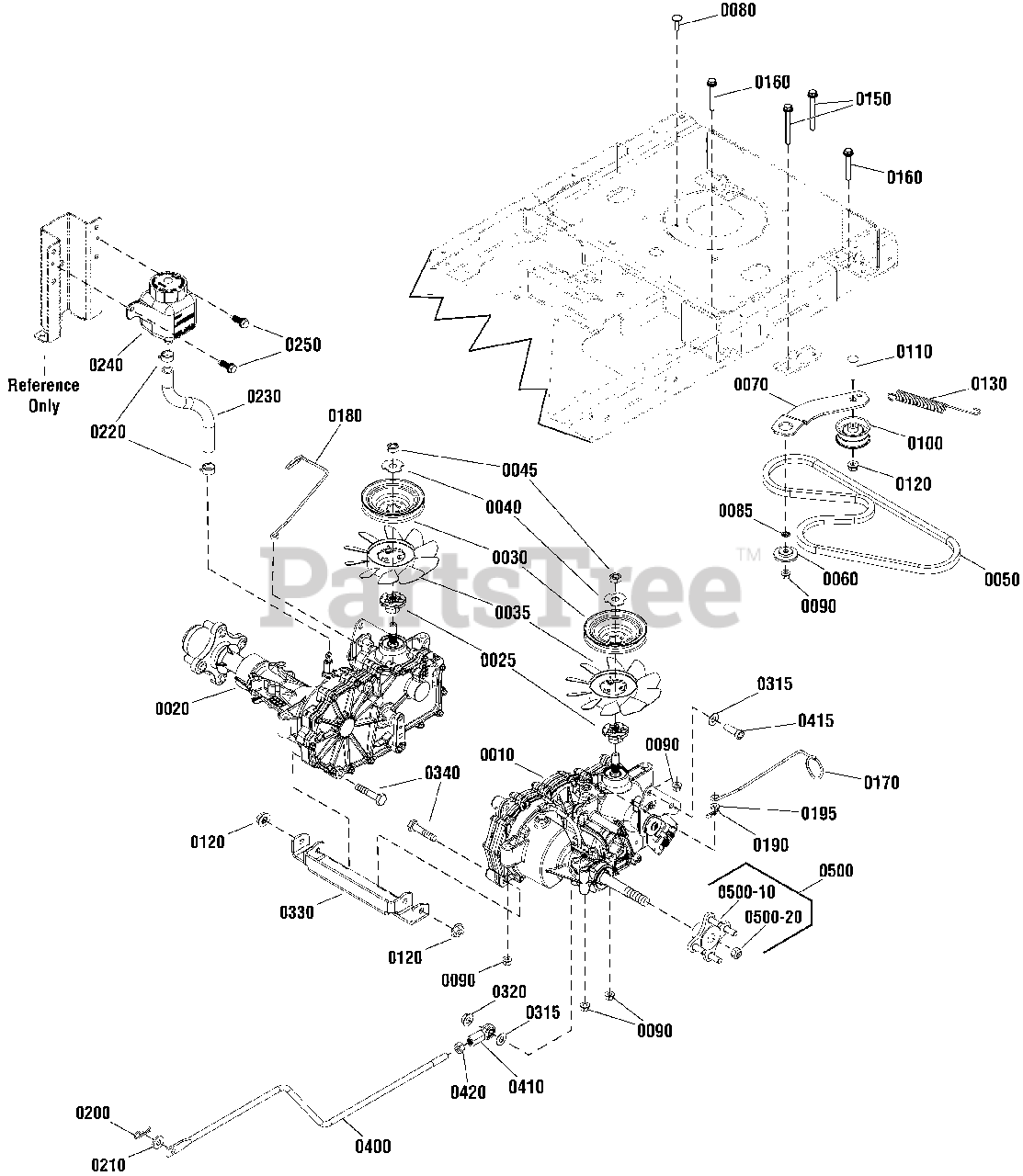

Transmission Group Parts Diagram

  • Title

0010

Simplicity 1759446YP

TRANSMISSION, LH, Hydro Gear
(Superseded to 84007996)

$946.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1759445YP

TRANSMISSION, RH, Hydro Gear
(Superseded to 84004715)

$975.99

$

Usually ships in 2-12 days

0

0025

Simplicity 1759450YP

SPACER, Transmission

$12.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1759447YP

PULLEY, Transmission

$26.99

$

In Stock, only 3 left!

0

0035

Simplicity 1759448YP

FAN, Input

$14.99

$

In Stock, only 3 left!

0

0040

Simplicity 5102914YP

WASHER, Slotted

$3.99

$

In Stock, only 1 left!

0

0045

Simplicity 5102916YP

NUT, ZT5400

$3.49

$

In Stock, only 1 left!

0

0050

Simplicity 1758100YP

BELT

$42.99

$

In Stock, Qty 20+

0

0060

Simplicity 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 1 left!

0

0070

Simplicity 1758044AYP

ARM, Idler

$20.99

$

In Stock, only 1 left!

0

0080

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 7

0

0085

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 1668477SM

PULLEY, Idler, 2.25" OD, .378 ID

$23.99

$

In Stock, Qty 20+

0

0110

Simplicity 703879

BOLT, Carriage, 3/8-16X1-3/4, GR5

$3.99

$

In Stock, Qty 5

0

0120

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

0130

Simplicity 1758045YP

SPRING, 7.18"Long, .75" OD, Extension

$8.49

$

In Stock, only 3 left!

0

0150

Simplicity 707943

SCREW, Washer Head, 5/16-18 X 3

$5.99

$

Usually ships in 2-12 days

0

0160

Simplicity 707944

SCREW, Washer Head, 5/16-18 X 2 1/4

$4.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1759245YP

ROD, Release, LH

$14.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1759246YP

ROD, Release, RH

$14.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703430

PIN, 13X1.19

$3.49

$

In Stock, only 2 left!

0

0195

Simplicity 703332

WASHER, 1/4, Flat, GR5 Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0200

Simplicity 703300

PIN, Hair, 3/32 x 1-5/8, GR5

$3.99

$

In Stock, Qty 20+

0

0210

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 11

0

0220

Simplicity 5025474SM

CLAMP, Hose .75"

$3.49

$

Usually ships in 2-12 days

0

0230

Simplicity 5050857X9SM

HOSE, 1/2" Push-On, 9"

$8.99

$

Usually ships in 2-12 days

0

0240

Simplicity 5100473SM

RESERVOIR, Hydro

$40.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703054

SCREW, 1/4-20 x 5/8, Hex Washer Head, Thread Roll, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0315

Simplicity 703183

WASHER, 7/16

$3.99

$

In Stock, only 2 left!

0

0320

Simplicity 1930650SM

NUT, Hex Two Way, 7/16-14

$5.49

$

In Stock, only 4 left!

0

0330

Simplicity 1759172AYP

SUPPORT, Front Trans

$64.99

$

Usually ships in 2-12 days

0

0340

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2"
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0

0400

Simplicity 1757966YP

ROD, Control

$37.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1759799YP

ROD, 7/16-20 RH, Female

$22.99

$

Usually ships in 2-12 days

0

0415

Simplicity 703579

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR8

$4.49

$

In Stock, Qty 20+

0

0420

Simplicity 7090460SM

NUT, 7/16F, GR5, Hex

$2.49

$

Usually ships in 2-12 days

0

0500

Simplicity 7600158YP

KIT, Hub Replacement

$122.99

$

Usually ships in 2-12 days

0

0500-10

HUB, Transmission

$

$

Not available

0500-20

NUT, EZT Transmission

$

$

Not available
